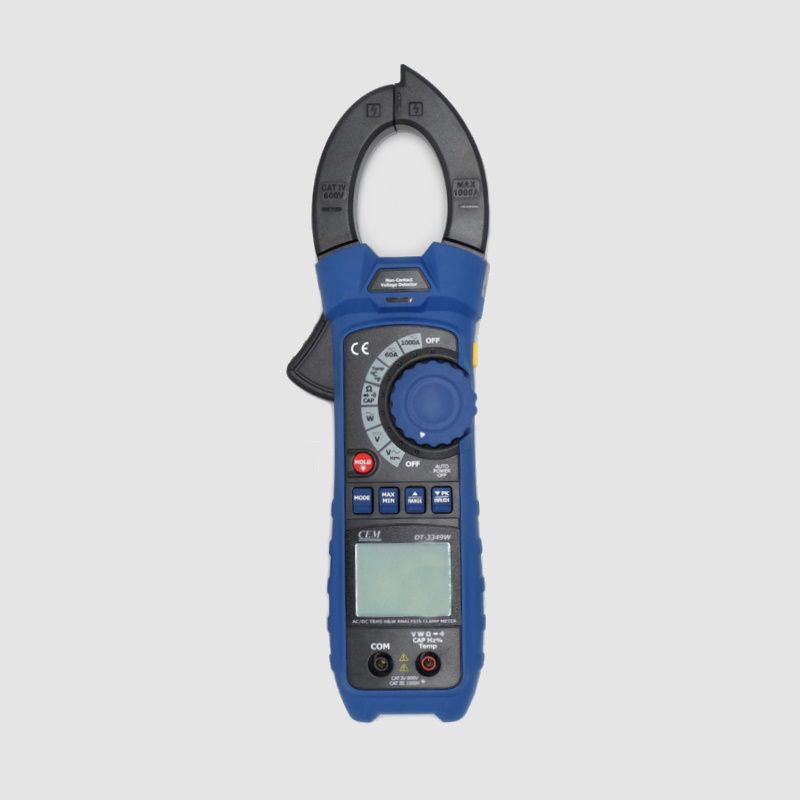

1000A AC/DC Power Quality True RMS Clamp Meter
Product code: DT-3349W
Model: DT-3349W
Brand: CEM Instruments
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
DT-3349W - 1000A AC/DC Power Quality True RMS Clamp Meter
3349W 1000A AC/DC Power quality True RMS clamp meter measure power and power factor, total harmonic distortion, individual harmonics, as well as AC/DC voltage, current, capacitance, inrush current anakysis, and phase sequence. The low pass filter enables voltage and current measurements on variable frequency drives. It allows quick selection of the numerous measurement features on the large LCD display.
Double molded plastic housing
True RMS measurement for ACV & ACA
Features
- True RMS
- Non-contact voltage detection
- Inrush current measurement for motors
- Low pass filter for variable frequency drives
- Continuity Beeper
- Min, Max and Smart Data Hold, Peak hold
- Auto torch-light when clamping
- Large 10,00 count display with active backlight and analog bar graph
- Auto Power Off
- Maximum jaw opening 1.63" (42mm)
- CAT IV 600 V /CAT III 1000 V safety standard
- Size(HxWxD): 230mm x 76mm x 40mm
- Weight: 315g
Product Code: DT-3394W
Save
Print
Features
- True RMS
- Non-contact voltage detection
- Inrush current measurement for motors
- Low pass filter for variable frequency drives
- Continuity Beeper
- Min, Max and Smart Data Hold, Peak hold
- Auto torch-light when clamping
- Large 10,00 count display with active backlight and analog bar graph
- Auto Power Off
- Maximum jaw opening 1.63" (42mm)
- CAT IV 600 V /CAT III 1000 V safety standard
- Size(HxWxD): 230mm x 76mm x 40mm
- Weight: 315g
Downloadable Files
DT-3349W Series Technical document (414 kB)
