AT-2816A / AT-2816B LCR Meter
AT-2816A / AT-2816B LCR Meter Product code: AT-2816A / AT-2816B Model: AT-2816A / AT-2816B Brand: Anbai Warranty Time: 24 REQUEST FOR SUBMISSION
Share:
Save Print

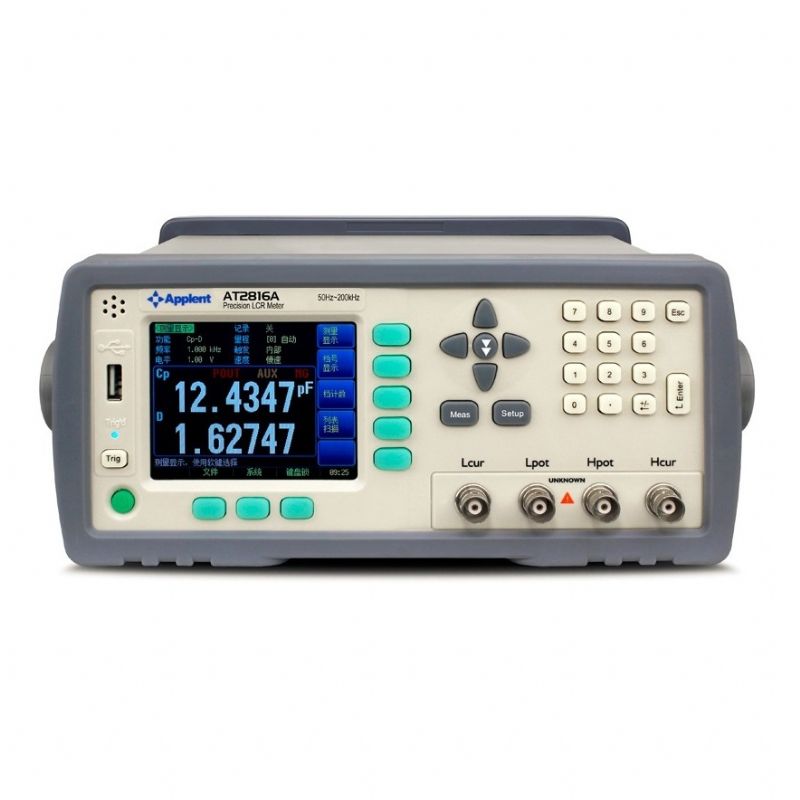

The AT2816 Series is the use of a high-performance processors and 3.5" TFT LCD screen smart LCR Meter. Since the SMD technology makes AT2816 portability. We rely on highly skilled technical, so that the instrument even more outstanding performance.

AT2816A offers wide frequency range (50Hz~200kHz 0.001Hz Step), AT2816B offers wide frequency range (50Hz~200kHz 33 points), programmable signal level (0.01V to 2.00V), auto range with 9 ranges, 30Ω/50Ω/100Ω constant output impedance and easy-to-use operation system.

Built-in RS232C and handler interfaces help build an automatic component test system, communicate with the computer and analysis the test results.

Save Print

Please contact us for this info.

Save Print
Specification
Parameters Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,G-B,R-X,Z-θrad,Z-θdeg
Monitor Parameters Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
Accuracy 0.05% ±5
Frequency 50Hz～200kHz
Display Range L: 0.00001μH - 999999H C: 0.00001pF - 999999μF R,Z: 0.00001Ω - 99.9999MΩ Q: 0.00001 - 999999 θ(deg): -90.0000°- 90.0000° θ(rad): -3.14159 – 3.14159 Δ%: -999.999% - 999.999% D:0.00001 ～ 9.99999
Source Resistance 30Ω 50Ω 100Ω
Range 9 ranges, Automatic, Manual, Nominal
Display Max 6 dgt, principle parameter: 999999; sub parameter: 999999; monitor parameter: 999999
Signal Level 0.01V - 2.00V (10mV Step)
Speed 30 t/s, 10 t/s, 6 t/s, 3 t/s 1 - 256 times average is available
Comparator 14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG Count function: Max - 999999
List Test 10 groups frequency and level scanning test
Adjustment Open/Short frequency reset, 3 point frequency and load correction
Files 10 group files to save users' setting, 1 group to save system data real-time
Interface RS232C, ExHandler Interface, with standard USB disc interface (article 10000 data)
Others LCR automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD display
Power Suplly Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Power: Max 20VA
Size 264mm(Width)x107mm(Height)x350 mm(Depth); 4kg
Accessories ATL501: Test cable ATL607: Test fixture ATL600: Short-circuit slice ATL801: 232 Communication cable
Options ATL608 SMD patch clamp ATL508: SMD patch test clip ATS2816B: Data acquisition software ATL508A: SMD patch test clip
