CEM AT-8 Contact/Non-contact Digital Tachometers
CEM AT-8 Contact/Non-contact Digital Tachometers Product code: AT-8 Model: AT-8 Brand: CEM Instruments Warranty Time: 2 Yıl REQUEST FOR SUBMISSION
Share:
Save Print

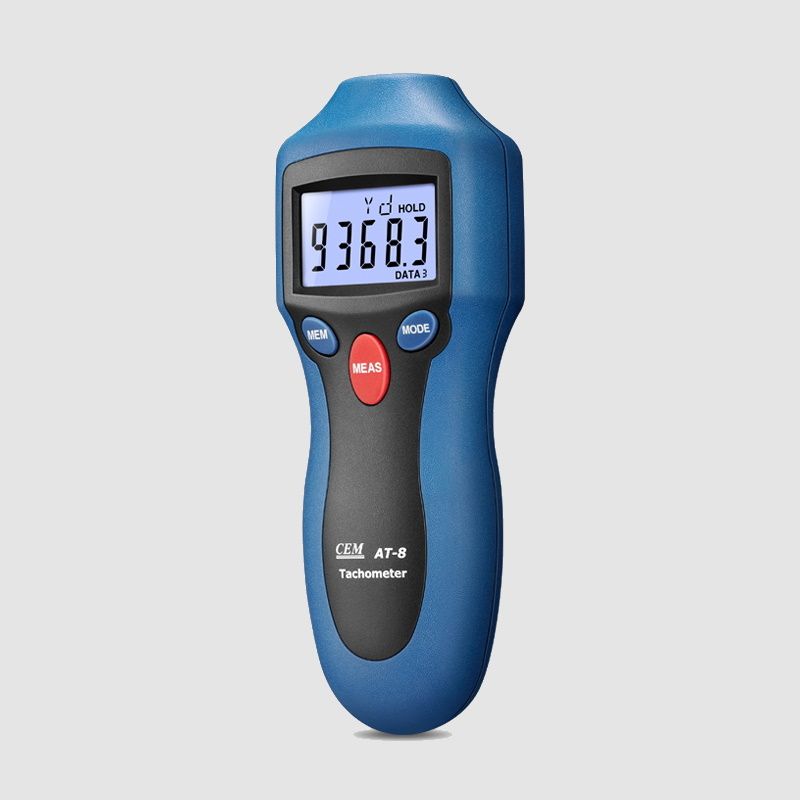

AT-8 Digital Tachometer provides fast and accurate contact and Non-contact RPM and surface speed measurements of rotating objects.
Wide measurement range and high resolution
40 readings memories
Built-in laser pointer
5 digits LCD display



Specifications

Contact test range: 2 to 20,000 RPM

Non-contact test range: 2 to 99,999 RPM

Tot test range: 1 to 99,999 RPM

Accuracy: ±(0.05% + 1digit)

Resolution: 0.1RPM(2 to 9999.9 RPM) / 1RPM(over 10000 RPM)

Sampling time: 0.5 sec.(over 120 RPM)

Detecting distance: 50 mm to 500 mm

Time base: Quartz crystal

Power consumption: Approx. 45mA

Battery: 9V



Product Code: AT-8

Save Print

Please contact us.

Save Print

Specifications

Contact test range: 2 to 20,000 RPM

Non-contact test range: 2 to 99,999 RPM

Tot test range: 1 to 99,999 RPM

Accuracy: ±(0.05% + 1digit)

Resolution: 0.1RPM(2 to 9999.9 RPM) / 1RPM(over 10000 RPM)

Sampling time: 0.5 sec.(over 120 RPM)

Detecting distance: 50 mm to 500 mm

Time base: Quartz crystal

Power consumption: Approx. 45mA

Battery: 9V
