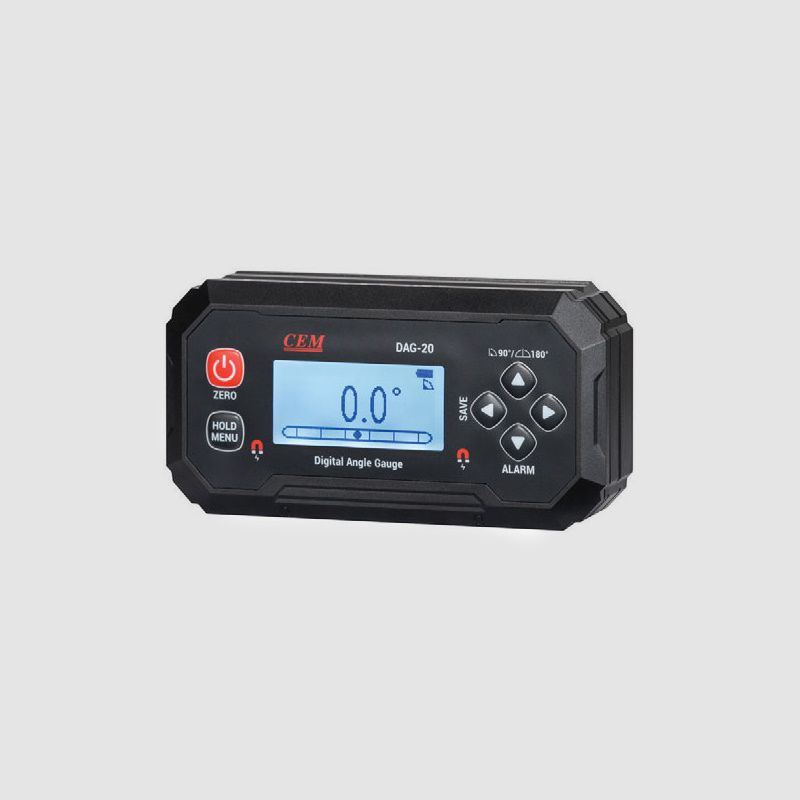

CEM DAG-20 Digital Angle Gauge and Level
Product code: DAG-20
Model: DAG-20
Brand: CEM Instruments
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
The CEM DAG-20 Digital Angle Gauge and Level is a professional inclinometer with high accuracy. It can measure between 0-180° with an accuracy of ±0.2°.
The DAG-20 will also function as a spirit level when laid flat.
General Features
- Thanks to the magnet, it can easily attach to surfaces,
- Show fast and stable results,
- suitable for use with different measuring instruments to extend the measuring range,
- Relative/absolute measurement can be switched at any position and angle/inclination reading conversion is supported,
- Alarm setup and indication,
- Easy to use menu,
- Adjustable relative angle,
- On-screen data retention,
- The screen flips automatically,
- Strong magnetic base,
- Digital LCD display with backlight,
- Automatic shutdown feature.
Technical Specifications
- Measuring range: 0-90° and 0-180°
- Accuracy: Vertical and Horizontal Orientation, ±0.2°
- Spirit level Orientation: ±0.5°
- Resolution: 0.1°
- Operating temperature and humidity: 0-50° - <85% RH
- Dimensions: 120 x 61 x 35 mm
Product Code: DAG-20
Save
Print
Technical Specifications
- Measuring range: 0-90° and 0-180°
- Accuracy: Vertical and Horizontal Orientation, ±0.2°
- Spirit level Orientation: ±0.5°
- Resolution: 0.1°
- Operating temperature and humidity: 0-50° - <85% RH
- Dimensions: 120 x 61 x 35 mm
Downloadable Files
DAG Series Digital Inclinometer Datasheet (266 kB)
