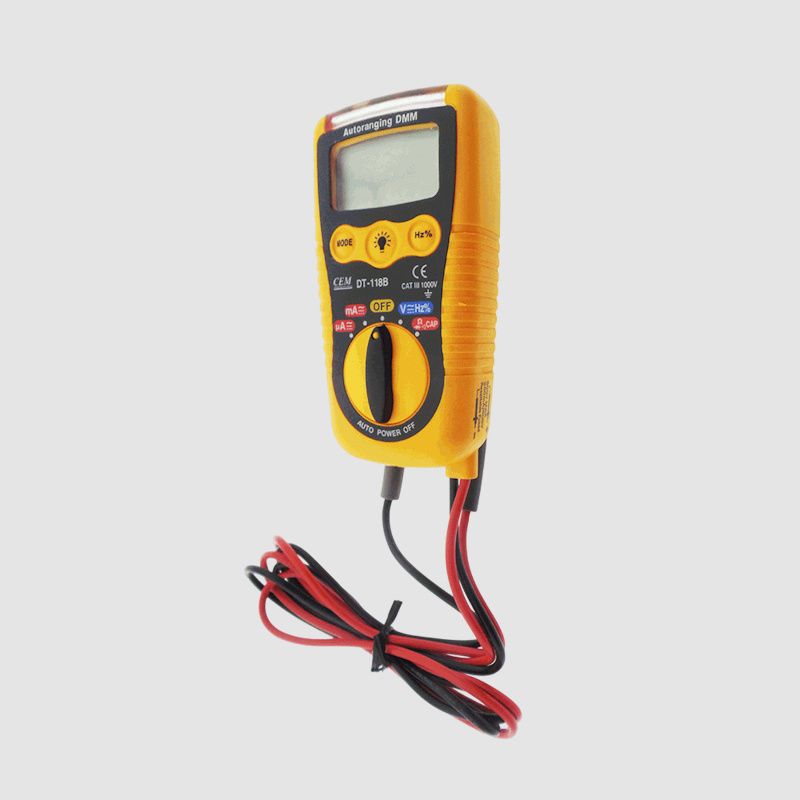

CEM DT-118B Pocket-Sized Digital Multimeter

The CEM DT-118B Pocket-Sized Digital Multimeter provides all the measurements you need in a pocket-sized format. Its large 4,000-digit LCD display makes readings easy to read.

It features automatic measurement range and auto-off functionality. The flashlight makes it easy to take measurements in dark environments. Thanks to the non-contact voltage detector, you can check whether there is electricity in a cable or wire without touching it.

It meets all your needs with 600 V AC and DC voltage measurement, 200 mA AC and DC current measurement, resistance, capacitance, frequency, diode, and continuity testing.

Technical Specifications

• DC Voltage: 600 V (±0.5% accuracy)
• AC Voltage: 600 V (±1.2% accuracy)
• DC Current: 200 mA (±2.0% accuracy)
• AC Current: 200 mA (±2.5% accuracy)
• Resistance: 40 MΩ (±0.8% accuracy)
• Capacitance: 100uF (±(3.0%±5d) accuracy)
• Frequency: 100kHz (±(0.8%±5d) accuracy)
• Non-Contact Voltage Detection (NCV): AC 100-600 V
• Diode Check: Yes
• Continuity Test: Yes
• Dimensions: 120 x 55 x 40 mm
• Weight: 145 grams

Product Code: DT-118B

Please contact us.

Please look the file section for more technical info.
