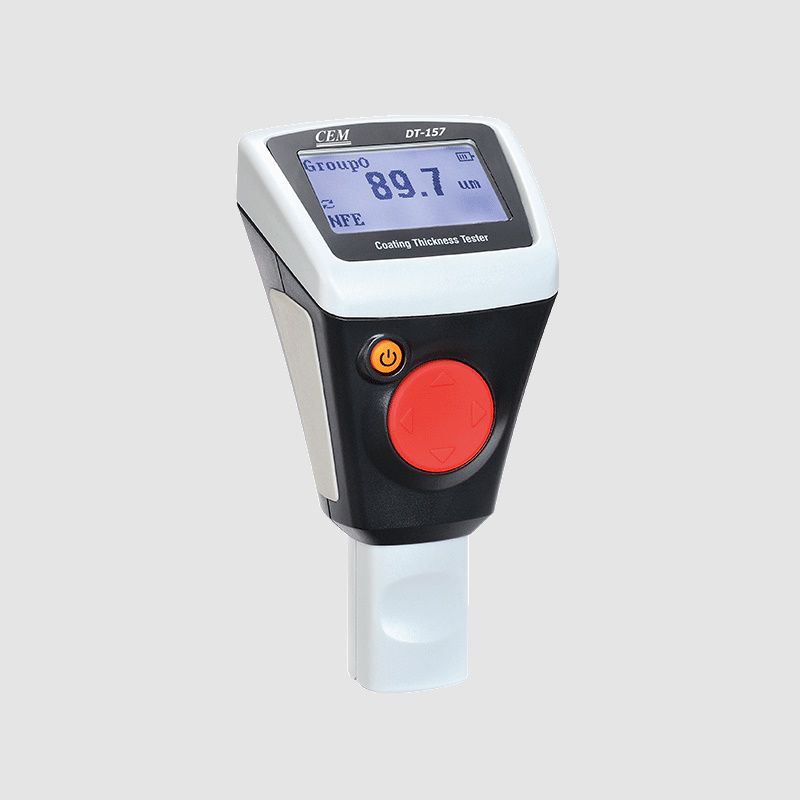

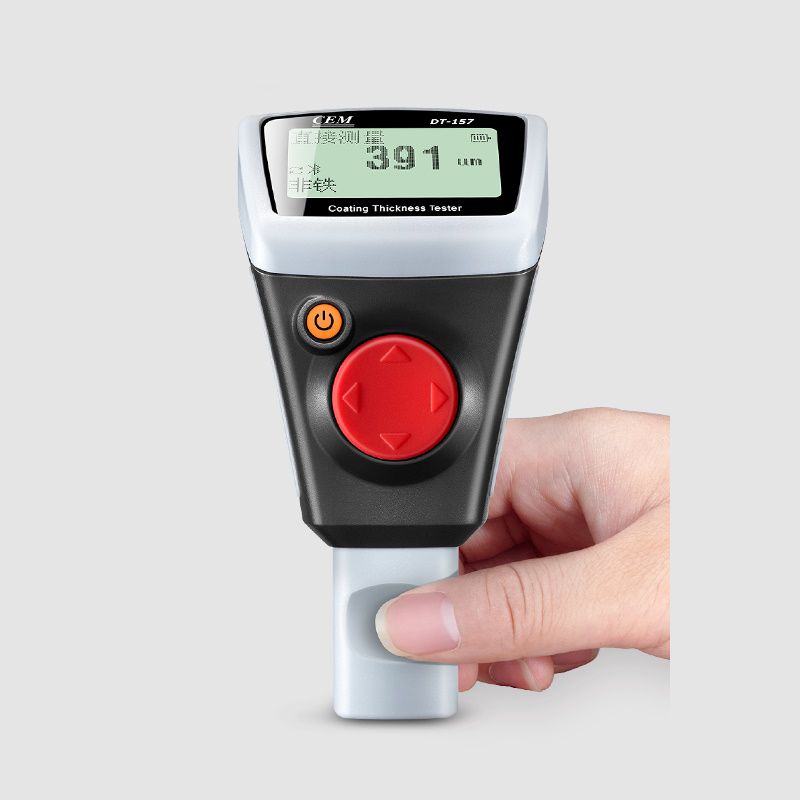

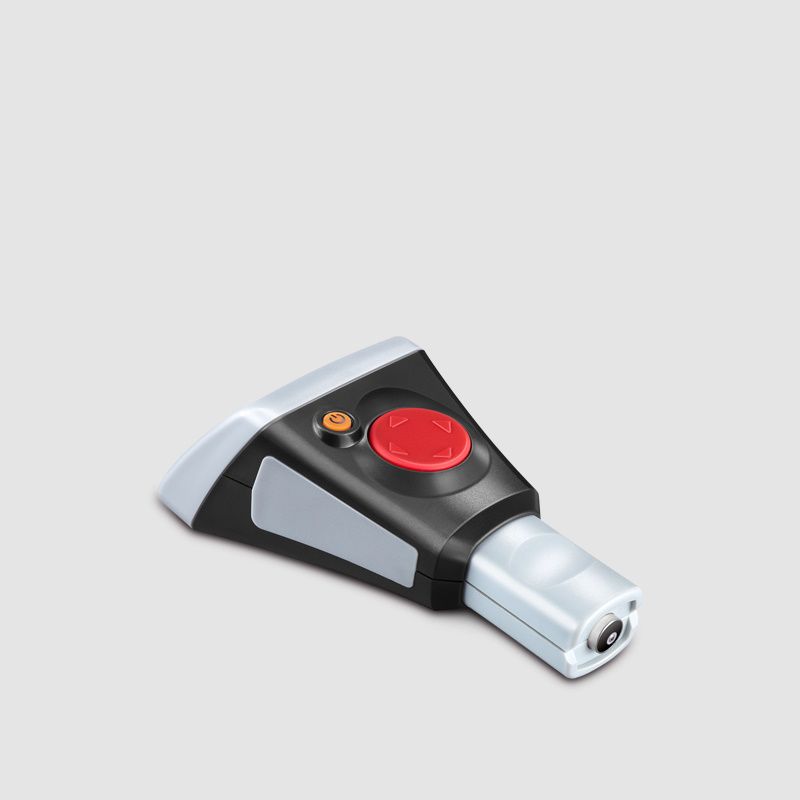

This compact & handy Professional Gauge is designed for non-destructive, fast and highly accurate/precise coating thickness measurement. The principal applications lie in the field of corrosion protection. Ideal for manufacturer, offices & specialist advisers, paint shops & electroplaters, chemical, automobile, shipbuilding and aircraft industries including light & heavy engineering.
DT-157 gauge are suitable for laboratory, workshop & outdoor use. It works either on magnetic induction principle and on eddy current principle, depends on probe used. DT-156 uses only 1 probe for both ferrous & non-ferrous metal substrates. Probe can be selected manually or automatically.
Stores 2500 memory values and display 5 statistics ( AVG, MAX, MIN, S.DEV and Number of reading in work mode). It comes with Bluetooth interface for transferring collected data to computer for later analysis or data printing.
Features
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
- Non-ferrous metals coatings on insulating substrates
- Easy MENU operation system
- Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
- Two measuring mode : CONTINUOUS and SINGLE mode
- Two Working modes: DIRECT and GROUP
- One Point Calibration, two point calibration and basic easy calibration
- High and Low Alarm Settings
- Bluetooth Interface
- Meterbox iCTT app can be used for cloud storage
Scope of delivery
- Batteries
- Calibration Iron and Aluminum plates
- Precision Standard foils
- Carrying Case
- Test Report
Product Code: DT-157
