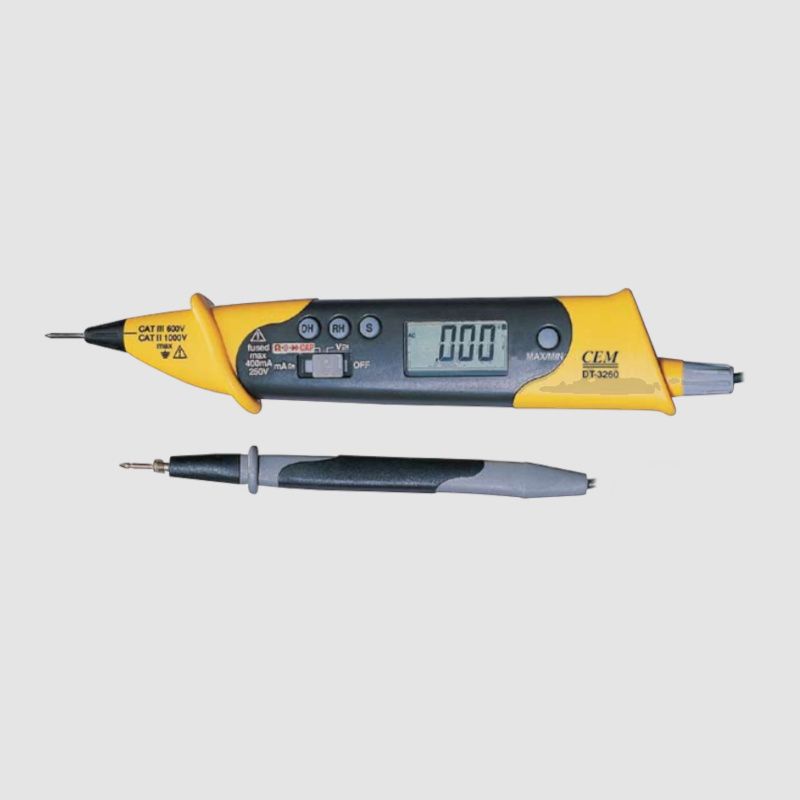

CEM DT-3260 Pen Type Smart Digital Multimeter

DT-3260 is ideal for electrical trouble shooting, which can check components (resistance, capacitance, diode and continuity) and circuit fault. All inputs are protected to EN 610101-1 CATIII 600V.

General Features

• 6000 Counts LCD Display
• Compact Pen size DMM
• Built in probes
• Auto Power off & Disable
• Data Hold/Max/Min Record
• Auto Detects AC & DC Voltage
• Auto Detects Capacitance, Resistance, Continuity and diode test
• Wide Capacitance Range
• Diode & Continuity Test
• Confirms to EN:61010-1, CAT III 600V

Technical Specifications

• DC Voltage: 600V (±0.5%)
• AC Voltage: 600V (±1%)
• DC Current: 600mA (±1%)
• AC Current: 600 mA (±1.5%)
• Resistance: 60 MΩ (±1%)
• Capacitance: 10 mF (±3.5%)

Product code: DT-3260

Please contact us.

Please look the file section for more technical info.
