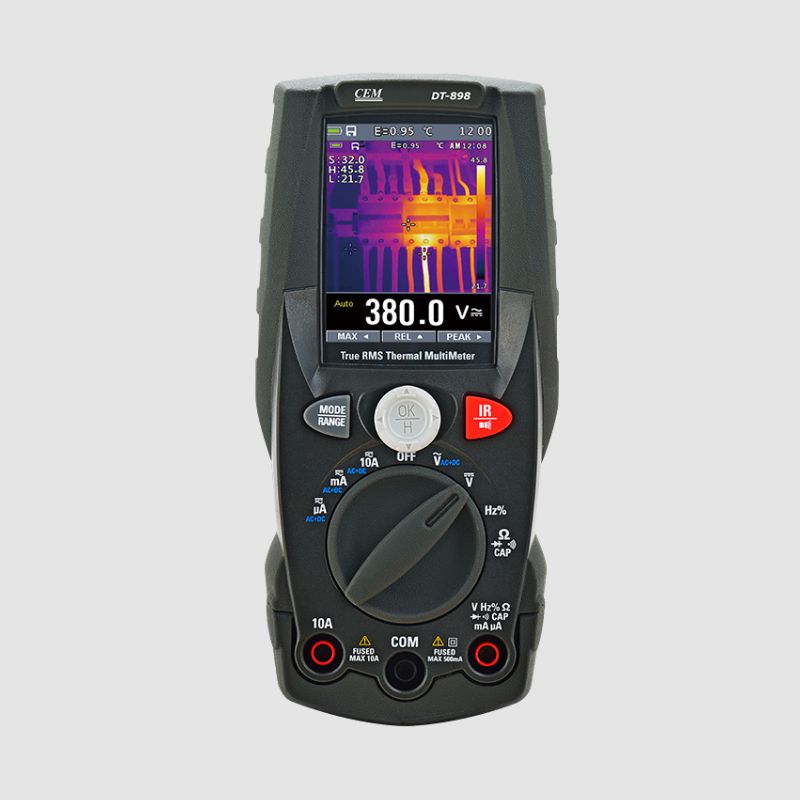

True RMS Digital Multimeter built-in Thermal Imager design, providing fast A/D converting sampling time, high accuracy. Advanced system Platform permits smart multifunctions such as updating software on line, PC calibration etc.
Safety Conformance
EN61010-1 CAT IV 300V, CAT III 600V
1000V input protection on all ranges
10A/1000V & 0.8A/1000V fuses protection on current ranges
|
Specifications |
||||||
|
Thermal Imager |
898/898A |
889/889A |
||||
|
IR Resolution |
80x60 pixels |
32x32 pixels |
||||
|
Field of view(FOV) |
17°x17° |
* |
40°x40° |
|||
|
Thermal sensitivity/NETD |
<0.08℃/80mK |
* |
* |
|||
|
Image frequency |
50Hz |
* |
9Hz |
|||
|
Object temperature range |
﹣20 to 260℃(﹣4 to 500℉) |
* |
﹣20 to 300℃(﹣4 to 572℉) |
|||
|
Spectral range |
8-14μm |
|||||
|
Color palettes |
IRON/Rainbow/Grey/Grey Inverted |
|||||
|
Accuracy |
±2℃(±3.6℉) or ±2% of reading |
|||||
|
True RMS Multimeter Functions |
||||||
|
Function |
Max Range |
Basic Accuracy |
||||
|
Voltage DC |
600V |
±0.5% |
* |
* |
||
|
Voltage AC |
600V |
±1.0% |
* |
* |
||
|
Current DC |
10A |
±1.5% |
898 |
889 |
||
|
Fork clamp DC current |
100A |
±2.0% |
898A |
889A |
||
|
Current AC |
10A |
±2.0% |
898 |
889 |
||
|
Fork clamp AC current |
100A |
±2.5% |
898A |
889A |
||
|
Resistance |
40MΩ |
±1.0% |
* |
* |
||
|
Capacitance |
4000μF |
±3.0% |
* |
* |
||
|
Frequency |
10kHz |
±1.0% |
* |
* |
||
|
Duty Cycle |
99.9% |
±1.2% |
* |
* |
||
|
Diode Check |
* |
* |
||||
|
Continuity Test |
* |
* |
||||
