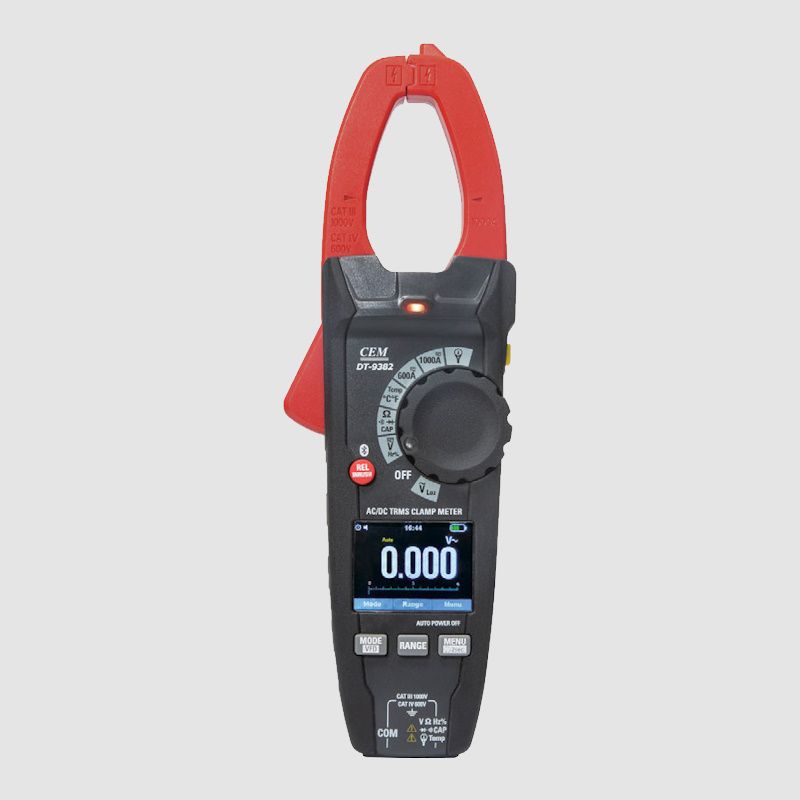

The CEM DT-9382 AC/DC TRMS Clamp Meter (1,000A) is a professional clamp type ammeter with fast response and sampling time, high accuracy and all the features required for measurement. They feature a modern body and jaw design for excellent handheld and confined space testing. The large backlit display is easy to see and the convenient data retention feature keeps measurements on the screen.
The large 1.8" TFT color LCD display makes it easy to see the measurement results on the screen.
True RMS measurement feature ensures you get the most accurate results.
6,000 digit display for precise measurement.
Data hold, peak hold, min and max display and reset function.
Automatic shutdown and low battery warning.
Low input impedance prevents false readings due to "ghost voltage" (LoZ).
Low pass filter for accurate measurement of variable frequency drive (VFD) signals
Thanks to the 35mm jaw opening, you can easily make your current measurements in many areas without contact with the clamp.
You can also optionally connect a flexible current probe and measure current up to 3,000A.
Thanks to its Bluetooth feature, you can connect to the free application on your smartphone and easily create and share reports.
Trend capture feature.
NCV (non-contact voltage) detector makes it easy to find live lines.
Durable double-layer outer protection copes with harsh conditions.
Flashlight feature available for dark environments.
Technical Specifications
- DC Voltage measurement: 1,000V
- DC Voltage best accuracy: ±(0.5% + 2d)
- AC Voltage measurement: 1,500V
- AC Voltage best accuracy: ±(1.0% + 5d)
- DC Current measurement: 1,000A
- DC Current best accuracy: ±(2% + 5d)
- AC Current measurement: 1,000A
- AC Current best accuracy: ±(2.5% + 8d)
- Resistance measurement: 60MΩ
- Capacitance measurement: 100mF
- Frequency measurement: 10kHz
- Inrush current measurement: 1,000A
- Temperature measurement: 1,000°C
- Diode test Yes (0.3mA)
- Continuity test Yes (50Ω)
- Communication interface Bluetooth
- Dimensions 78 x 250 x 40 mm
- Weight: 350 grams

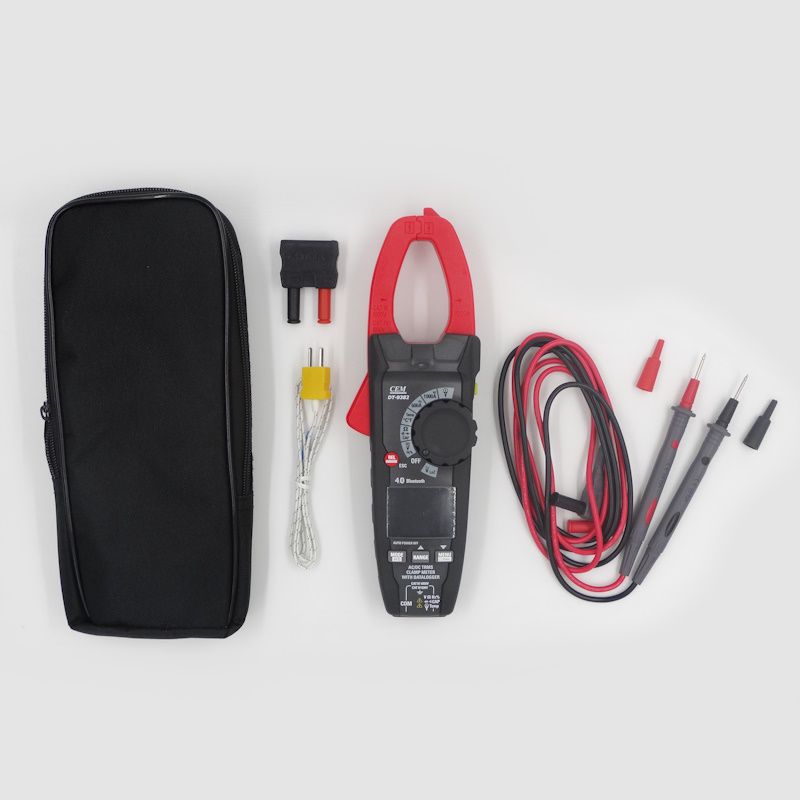

Scope of Delivery
Tester, measuring cables, temperature probe, batteries, software.
Product Code: DT-9382
