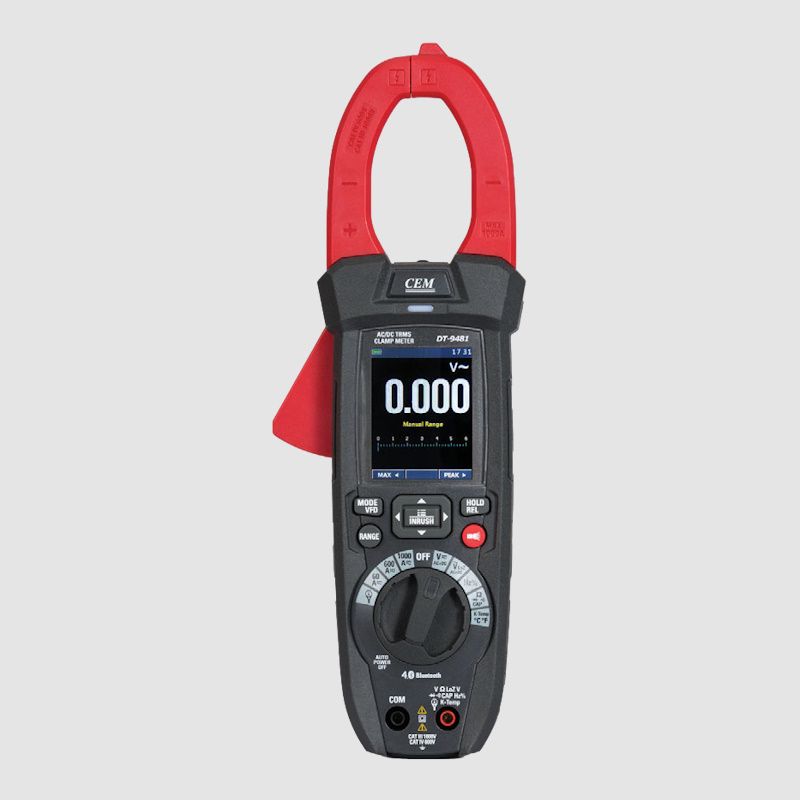

The CEM DT-9481 AC/DC TRMS Solar Pensammeter (1500V) is a professional pensammeter that allows you to measure up to 1,500V AC or DC voltage value specifically for your solar (solar panel) measurements.
Thanks to its large 2.4" TFT color LCD display, you can easily see the measurement results on the screen.
True RMS measurement feature ensures you get the most accurate results.
Thanks to the 37mm jaw opening, you can easily make your current measurements in many areas without contact with the clamp.
You can also optionally connect a flexible current probe and measure current up to 3,000A.
Thanks to its Bluetooth feature, you can connect to the free app on your smartphone and easily create and share reports.
Durable double-layer outer protection copes with harsh conditions.
Flashlight feature is available for dark environments.
Technical Specifications
- DC Voltage measurement: 1,500V
- DC Voltage best resolution: 100mV
- DC Voltage best accuracy: ±(0.5% + 5d)
- AC Voltage measurement: 1,500V
- AC Voltage best resolution: 100mV
- AC Voltage best accuracy: ±(1.2% + 5d)
- DC Current measurement: 1,000A
- DC Current best resolution: 0.01A
- DC Current best accuracy: ±(2% + 8d)
- AC Current measurement: 1,000A
- AC Current best resolution: 0.01A
- AC Current best accuracy: ±(2.5% + 5d)
- Resistance measurement: 60MΩ
- Capacitance measurement: 100mF
- Frequency measurement: 10MHz
- Inrush current measurement: 1,000A
- Temperature measurement: 1,000°C
- Diode test: Yes
- Continuity test: Yes
- Communication interface: Bluetooth
- Rechargeable battery: Yes
- Dimensions: 95 x 270 x 42 mm
- Weight: 550 grams
Scope of Delivery

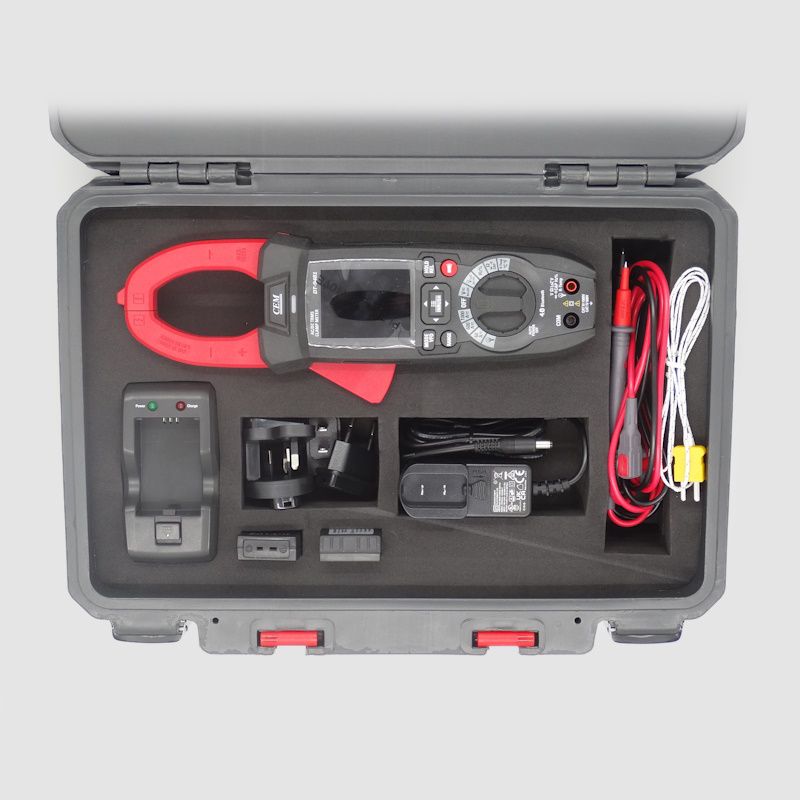

Tester, measuring cables, temperature probe, rechargeable battery, charger.
Product Code: DT-9481
