CEM DT-9880 Particule Counter
Product code: DT-9880
Model: DT-9880
Brand: CEM Instruments
Warranty Time: 24
REQUEST FOR SUBMISSION
Save
Print

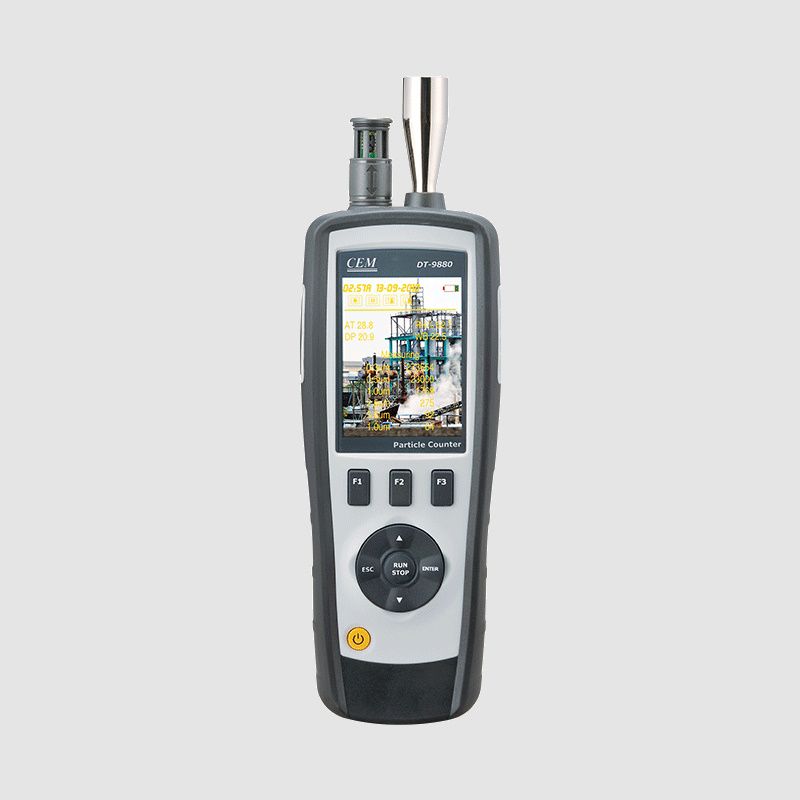

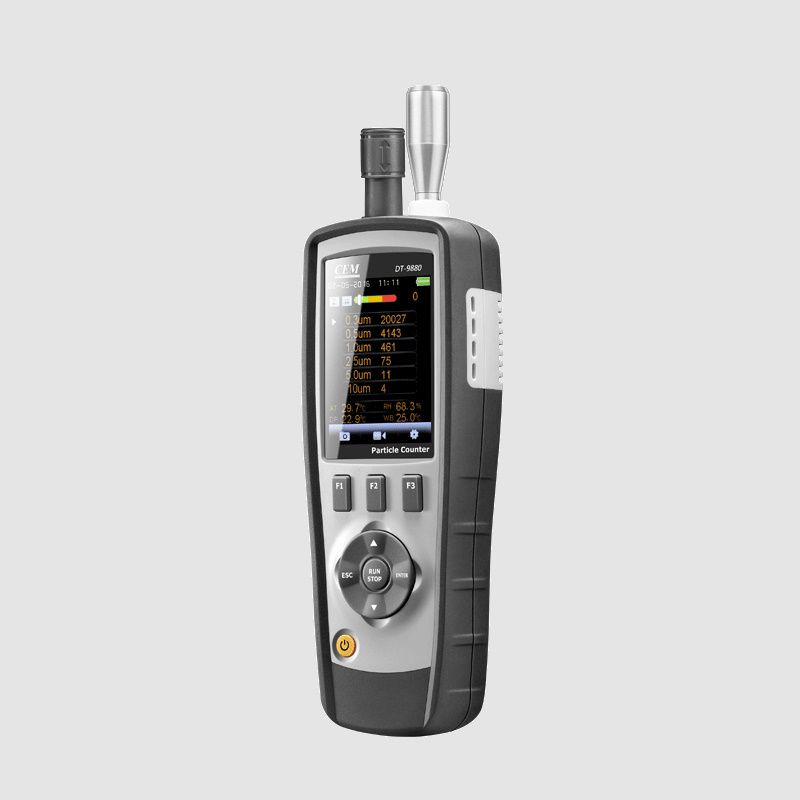

CEM DT-9880 Particule Counter, with unique 2.8”color TFT LCD display and built-in camera for capturing videos and photos that are stored onto internal memory or a micro SD card, for viewing on PC, providing fast, easy and accurate readings for particle counter, Air Temperature, Relative Humidity, Dew Point & Wet Bulb Temperature). The DT-9880 can measure up to 6 channels of particle sizes Use the included software to generate reports with videos, photos, and data points.
Features
- Simultaneously measure and display 6 channels of particle sizes (down to 0.3 μm), Air Temperature, Humidity, Dew Point and Wet Bulb
- 8" TFT Color LCD display
- Built-in 320x240-pixel camera takes videos (3GP) and photo images (JPEG) and records them in internal 74MB memory
- Stores 5000 records (date, time, counts, humidity, temperature, sample volumes, and location label) and 20 minutes of video
- Selectable sample time, count data, and Programmable delay
- Air Temperature and Humidity, Dew Point & Wet Bulb Temperature
- Max, Min, DIF, AVG record, Date/time setup controls
- Auto Power Off
- Language selection: English, French, German, Spanish
- Tripod mount for continuous recording
- Mini-USB port connection
- Micro SD card slot in battery compartment (memory card not included; max size 8GB)
Technical Features
- Channels: 0.3,0.5,1.0,2.5,5.0,10um
- Flow Rate: 0.1ft3(2.83L/min)
- Counting Efficiency: 50% @ 0.3 µm; 100 % for particles > 0.45 µm
- Coincidence Loss: 5% at 2,000,000 particles per ft3
- Data Storage: 5000 sample records (Micro-SD card)
- Count Modes: Cumulative, Differential, Concentration,
- Air Temperature Range: 0°C to 50°C (32°F to 122°F)
- Dew-point Temperature Range: 0°C to 50°C (32°F to 122°F)
- Relative Humidity Range: 0 to 100%RH
- Air temperature Accuracy: ±0.5°C (0.9°F) 10°C to 40°C
±1.0°C (1.8°F) others - Dew-Point temp. Accuracy: ±0.5°C(0.9°F) 10°C to 40°C
±1.0°C(1.8°F) others - Relative Humidity Accuracy: ±3%RH 40% to 60%
±3.5%RH 20% to 40% and 60% to 80%
±5%RH 0% to 20% and 80% to 100% - Operating Temperature: 0°C to 50°C (32°F to122°F)
- Storage Temperature: -10°C to 60°C (14°F to 140°F)
- Relative Humidity: 10 to 90%RH non-condensing
- Battery: Rechargeable battery
- Battery Life: About 4 hours continuous use
- Battery Charge Time: About 2 hours with AC adapter
Product Code: DT-9880
Save
Print
Technical Features
- Channels: 0.3,0.5,1.0,2.5,5.0,10um
- Flow Rate: 0.1ft3(2.83L/min)
- Counting Efficiency: 50% @ 0.3 µm; 100 % for particles > 0.45 µm
- Coincidence Loss: 5% at 2,000,000 particles per ft3
- Data Storage: 5000 sample records (Micro-SD card)
- Count Modes: Cumulative, Differential, Concentration,
- Air Temperature Range: 0°C to 50°C (32°F to 122°F)
- Dew-point Temperature Range: 0°C to 50°C (32°F to 122°F)
- Relative Humidity Range: 0 to 100%RH
- Air temperature Accuracy: ±0.5°C (0.9°F) 10°C to 40°C
±1.0°C (1.8°F) others - Dew-Point temp. Accuracy: ±0.5°C(0.9°F) 10°C to 40°C
±1.0°C(1.8°F) others - Relative Humidity Accuracy: ±3%RH 40% to 60%
±3.5%RH 20% to 40% and 60% to 80%
±5%RH 0% to 20% and 80% to 100% - Operating Temperature: 0°C to 50°C (32°F to122°F)
- Storage Temperature: -10°C to 60°C (14°F to 140°F)
- Relative Humidity: 10 to 90%RH non-condensing
- Battery: Rechargeable battery
- Battery Life: About 4 hours continuous use
- Battery Charge Time: About 2 hours with AC adapter
Please look the file section for more technical info.
Downloadable Files
DT-9880 Series - Datasheet (722 kB)
