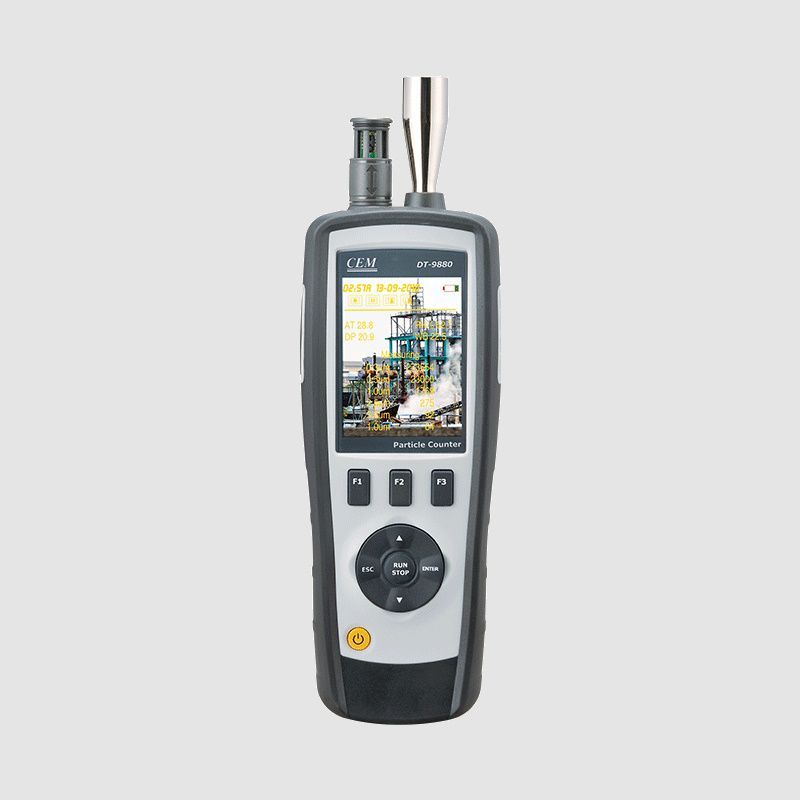

CEM DT-9880M Particule Counter
Product code: DT-9880M
Model: DT-9880M
Brand: CEM Instruments
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
CEM DT-9880M Particule Counter, with unique 2.8”color TFT LCD display and built-in camera for capturing videos and photos that are stored onto internal memory or a micro SD card, for viewing on PC, providing fast, easy and accurate readings for particle counter, Air Temperature, Relative Humidity, Dew Point & Wet Bulb Temperature). The DT-9880M can measure up to 6 channels of particle sizes Use the included software to generate reports with videos, photos, and data points.
The determination of suspended particle concentration in the air of the weight method (PM2.5/PM10)
Features

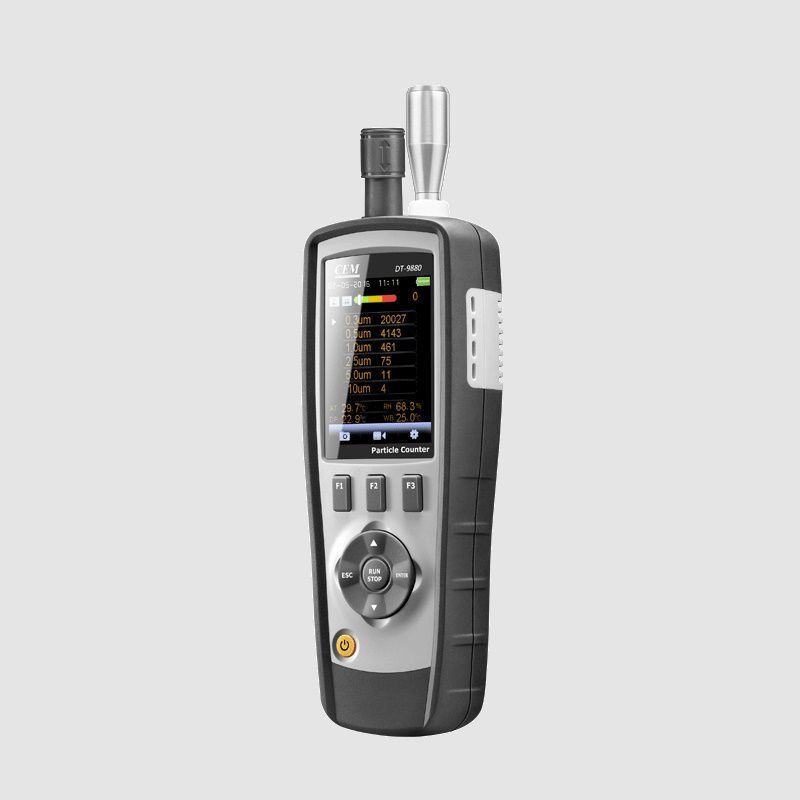

- Simultaneously measure and display 6 channels of particle sizes (down to 0.3 μm), Air Temperature, Humidity, Dew Point and Wet Bulb
- The determination of suspended particle concentration in the air of the weight method (PM2.5/PM10)
- 8" TFT Color LCD display
- Built-in 320x240-pixel camera takes videos (3GP) and photo images (JPEG) and records them in internal 74MB memory
- Stores 5000 records (date, time, counts, humidity, temperature, sample volumes, and location label) and 20 minutes of video
- Selectable sample time, count data, and Programmable delay
- Air Temperature and Humidity, Dew Point & Wet Bulb Temperature
- Max, Min, DIF, AVG record, Date/time setup controls
- Auto Power Off
- Language selection: English, French, German, Spanish
- Tripod mount for continuous recording
- Mini-USB port connection
- Micro SD card slot in battery compartment (memory card not included; max size 8GB)
Technical Features
- Channels: 0.3,0.5,1.0,2.5,5.0,10um
- Mass Concentration Channel PM2.5 ：0~500ug/m3 ；PM10：0~500ug/m3
- Flow Rate: 0.1ft3(2.83L/min)
- Counting Efficiency: 50% @ 0.3 µm; 100 % for particles > 0.45 µm
- Coincidence Loss: 5% at 2,000,000 particles per ft3
- Data Storage: 5000 sample records (Micro-SD card)
- Count Modes: Cumulative, Differential, Concentration,
- Air Temperature Range: 0°C to 50°C (32°F to 122°F)
- Dew-point Temperature Range: 0°C to 50°C (32°F to 122°F)
- Relative Humidity Range: 0 to 100%RH
- Air temperature Accuracy: ±0.5°C (0.9°F) 10°C to 40°C
±1.0°C (1.8°F) others - Dew-Point temp. Accuracy: ±0.5°C(0.9°F) 10°C to 40°C
±1.0°C(1.8°F) others - Relative Humidity Accuracy: ±3%RH 40% to 60%
±3.5%RH 20% to 40% and 60% to 80%
±5%RH 0% to 20% and 80% to 100% - Operating Temperature: 0°C to 50°C (32°F to122°F)
- Storage Temperature: -10°C to 60°C (14°F to 140°F)
- Relative Humidity: 10 to 90%RH non-condensing
- Battery: Rechargeable battery
- Battery Life: About 4 hours continuous use
- Battery Charge Time: About 2 hours with AC adapter
Product Code: DT-9880M
Save
Print
Technical Features
- Channels: 0.3,0.5,1.0,2.5,5.0,10um
- Mass Concentration Channel PM2.5 ：0~500ug/m3 ；PM10：0~500ug/m3
- Flow Rate: 0.1ft3(2.83L/min)
- Counting Efficiency: 50% @ 0.3 µm; 100 % for particles > 0.45 µm
- Coincidence Loss: 5% at 2,000,000 particles per ft3
- Data Storage: 5000 sample records (Micro-SD card)
- Count Modes: Cumulative, Differential, Concentration,
- Air Temperature Range: 0°C to 50°C (32°F to 122°F)
- Dew-point Temperature Range: 0°C to 50°C (32°F to 122°F)
- Relative Humidity Range: 0 to 100%RH
- Air temperature Accuracy: ±0.5°C (0.9°F) 10°C to 40°C
±1.0°C (1.8°F) others - Dew-Point temp. Accuracy: ±0.5°C(0.9°F) 10°C to 40°C
±1.0°C(1.8°F) others - Relative Humidity Accuracy: ±3%RH 40% to 60%
±3.5%RH 20% to 40% and 60% to 80%
±5%RH 0% to 20% and 80% to 100% - Operating Temperature: 0°C to 50°C (32°F to122°F)
- Storage Temperature: -10°C to 60°C (14°F to 140°F)
- Relative Humidity: 10 to 90%RH non-condensing
- Battery: Rechargeable battery
- Battery Life: About 4 hours continuous use
- Battery Charge Time: About 2 hours with AC adapter
Please look the file section for more technical info.
Downloadable Files
DT-9880 Series - Datasheet (722 kB)
