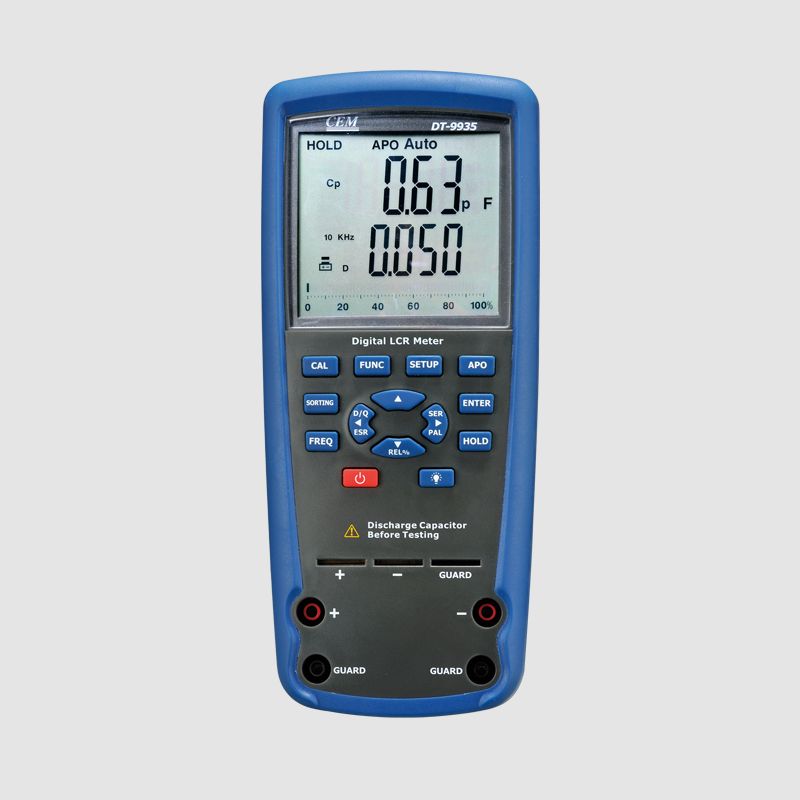

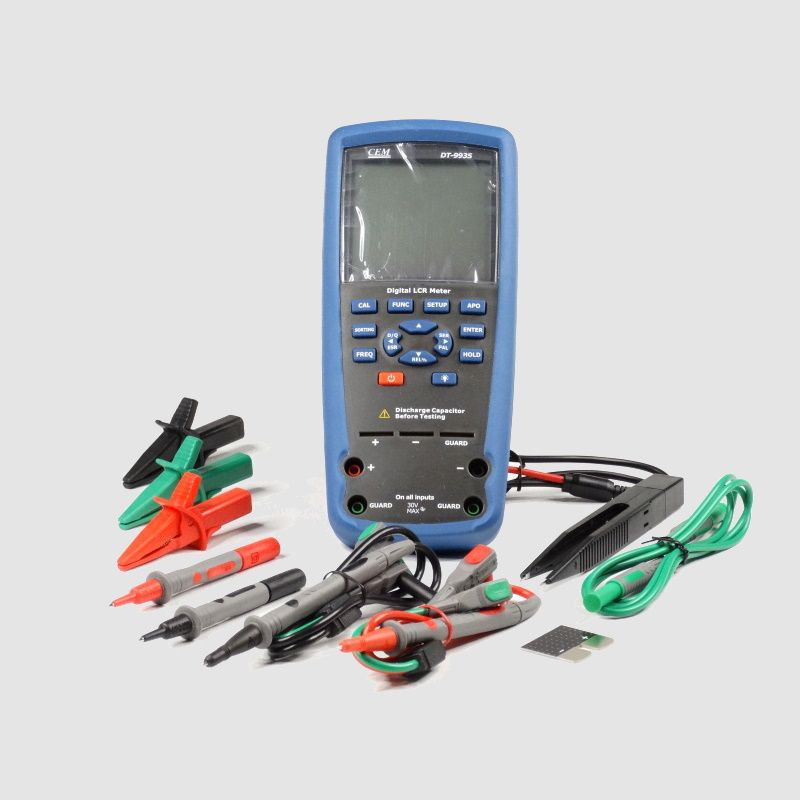

Professional LCR Meter
DT-9935 LCR Meter features with an innovative automatic selection technology, automatically measuring L,C and R with Q, D and θ by just turn on the meter. The testing frequency is up to 10kHz and it can output up to 100kHz test frequency. It provides high accuracy with four or five terminal Kelvin measurements.
Overload Indication
Lower Battery Indication
Auto Power Off
Product code: DT-9935
|
Specifications |
|
|
Inductance |
|
|
Ranges |
20uH-2000H |
|
Resolution |
0.001uH |
|
Basic Accuracy |
±(0.2+5d) |
|
Capacitance |
|
|
Ranges |
20pF-20mF |
|
Resolution |
0.001pF |
|
Basic Accuracy |
±(0.2+3d) |
|
Resistance |
|
|
Ranges |
20Ω-2000MΩ |
|
Resolution |
0.001Ω |
|
Basic Accuracy |
±(0.2+2d) |
|
DC Resistance |
|
|
Ranges |
20Ω-2000MΩ |
|
Resolution |
0.001Ω |
|
Basic Accuracy |
±(0.2+2d) |
|
Q (quality) |
|
|
Ranges |
0.000-999 |
|
Resolution |
0.001 |
|
D (dissipation) |
|
|
Ranges |
0.000-999 |
|
Resolution |
0.001 |
|
Theta |
|
|
Ranges |
±90 degree |
|
Resolution |
1 degree |
