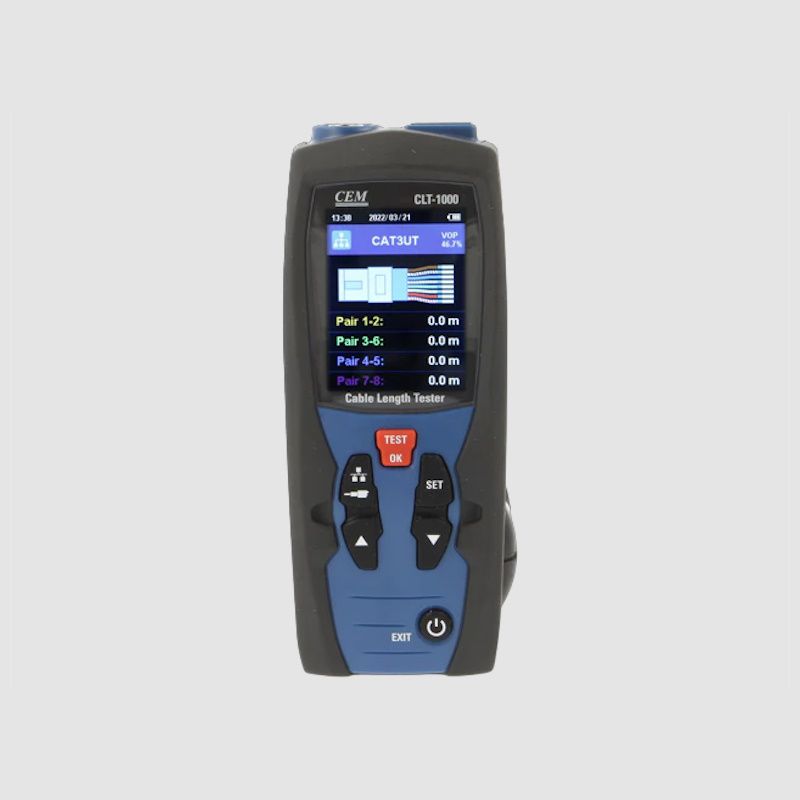

CLT-1000 Cable Length Tester
Product code: CLT-1000
Model: CLT-1000
Brand: CEM Instruments
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
CLT-1000 cable length tester features high accuracy and fast reflection, which finds distance to using Time Domain Reflectometry
Features
- High accuracy and fast reflection.
- User friendly menu on screen
- Operation for easy-to use
- Automatic output impedance control
- Auto-Zero and Auto Range
- Large TFT Color LCD Display
- Auto-Sensitivity allows for closer matching to a wide range of cables under test. Only V.O.P. Settings required
- Measuring capability of the V.O.P. of a sample cable
- 99 internal memory locations store up to 99 traces for future analysis
Specifications
- Minimum Range: pair cable or coaxial cable>5m, Single cable>10m
- Maximum Range: Depends upon the V.O.P of the cables under test, 3.0km @ V.O.P≤99.9%, 2.4km @ V.O.P≤80.0%, 2.0km @ V.O.P≤66.0%, 1.5km @ V.O.P≤50.0%
- Range Selection: Automatic range control
- Accuracy: ±(2% of reading + 10cm)<100m, ±[2% of reading +20cm]≥100m
- Resolution: 0.01m<100m, 0.1m≥100m
- Impedance Selection: Automatic output impedance control
- Cable Library: 20 standard cable types
- Memory Location: 99 for custom cable types

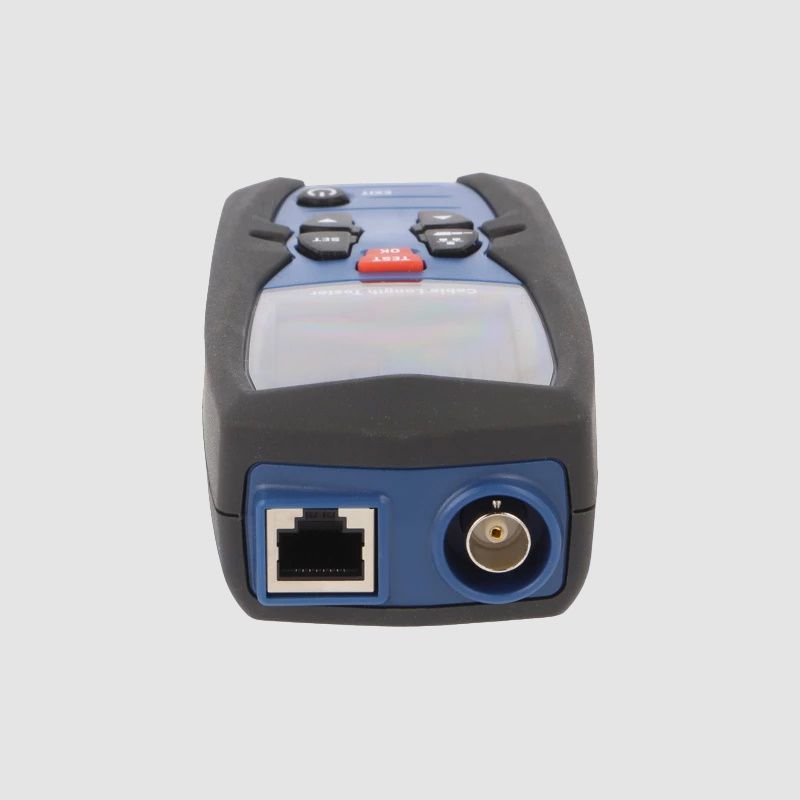

- Connector Type: BNC, RJ45
- Size(HxWxD): 152mm x 61mm x 34mm
- Weight: 230g
Product Code: CLT-1000
Save
Print
Specifications
- Minimum Range: pair cable or coaxial cable>5m, Single cable>10m
- Maximum Range: Depends upon the V.O.P of the cables under test, 3.0km @ V.O.P≤99.9%, 2.4km @ V.O.P≤80.0%, 2.0km @ V.O.P≤66.0%, 1.5km @ V.O.P≤50.0%
- Range Selection: Automatic range control
- Accuracy: ±(2% of reading + 10cm)<100m, ±[2% of reading +20cm]≥100m
- Resolution: 0.01m<100m, 0.1m≥100m
- Impedance Selection: Automatic output impedance control
- Cable Library: 20 standard cable types
- Memory Location: 99 for custom cable types
- Connector Type: BNC, RJ45
- Size(HxWxD): 152mm x 61mm x 34mm
- Weight: 230g
