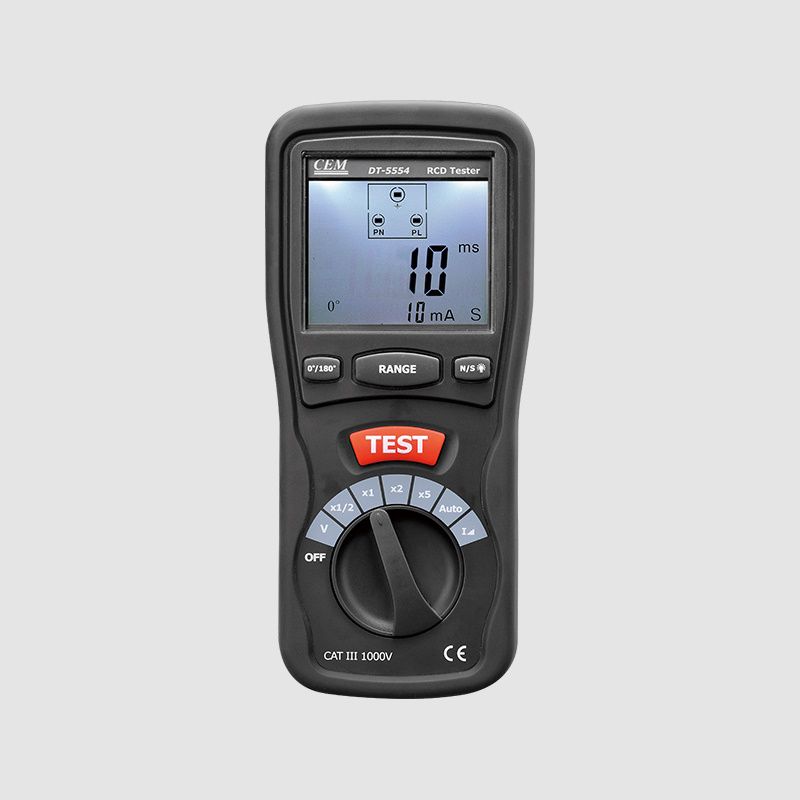

DT-5554 RCD Tester
DT-5554 RCD Tester Product code: DT-5554 Model: DT-5554 Brand: CEM Instruments Warranty Time: 2 Yıl REQUEST FOR SUBMISSION
Share:
Save Print

Custom microprocessor controlled for highest accuracy and reliability

Safe voltage measurement function

Large custom digital display readout on all models

Visual indication of reversed phase and neutral wiring at socket

  • Nominal test current: 10/30/100/500mA/1A
  • Current selection: 0.5x, 1x, 2x, 5x nominal current
  • Trip time: 10-2000 ms at 0.5x, 10-500 ms at 1x, 10-150 ms at 2x, 10-40 ms at 5x
  • Ramp test: 0.4x to 1.4 times nominal rated current



Product Code: DT-5554

Save Print

Please contact us.

Save Print



  • Nominal test current: 10/30/100/500mA/1A
  • Current selection: 0.5x, 1x, 2x, 5x nominal current
  • Trip time: 10-2000 ms at 0.5x, 10-500 ms at 1x, 10-150 ms at 2x, 10-40 ms at 5x
  • Ramp test: 0.4x to 1.4 times nominal rated current
