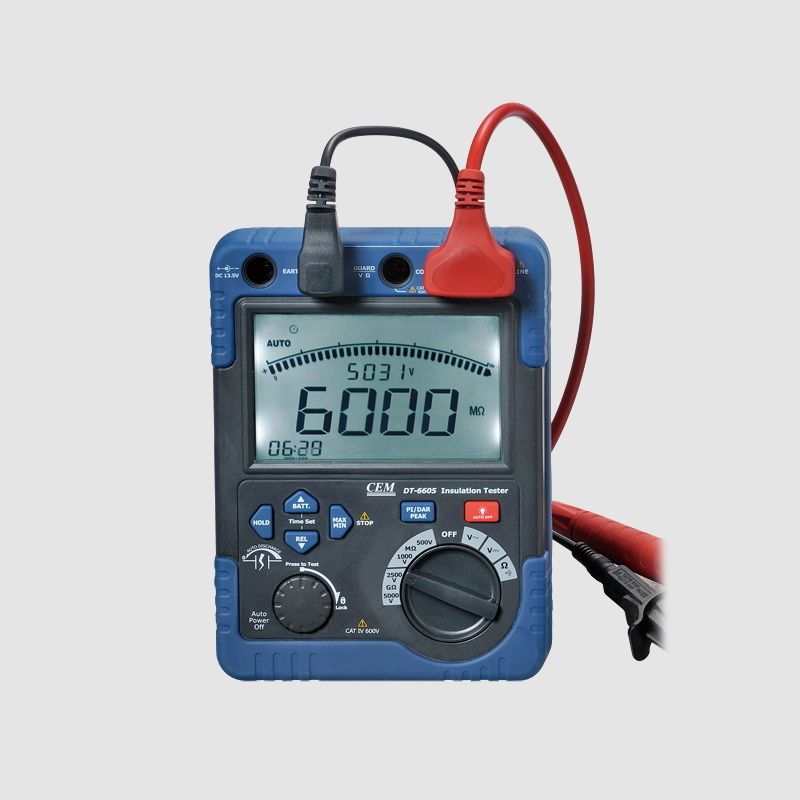

DT-6605 High Voltage Insulation Tester
DT-6605 High Voltage Insulation Tester
DT-6605 High Voltage Insulation Tester Product code: DT-6605 Model: DT-6605 Brand: CEM Instruments Warranty Time: 2 Yıl REQUEST FOR SUBMISSION
Share:
Save Print

Wide range measurements from 500V to 5000V and up to 60GΩ.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V

Save Print

   Please contact us.

Save Print

Specifications

Function

Insulation resistance

Voltage

Resistance

Range

500V

1000V

2500V

5000V

AC/DCV



Measuringrange (Auto ranging)

0~6.000MΩ
6~60.00MΩ
60~600.0MΩ
600~6000MΩ

0~6.000MΩ
6~60.00MΩ
60~600.0MΩ
600~6000MΩ

0~60.00MΩ
60~600.0MΩ
0.6~6.000GΩ
6~60.00GΩ

60~60.00MΩ
60~600.0MΩ
0.6~6.000GΩ
6~60.00GΩ

0~600.0V
(50~1kHz)

0~600.0Ω
600~6000Ω

Accuracy

±5%rdg ±3dgt ; ±20% (>6GΩ or more)

±1.5%rdg ±5dgt

±1.5%rdg ±10dgt

Short Circuit Current

1.3mA approx

-

Rated test Current
(at load Resistance)

1mA-1.2mA
0.5MΩ

1mA-1.2mA
1MΩ

1mA-1.2mA
2.5MΩ

1mA-1.2mA
5MΩ

-

Open circuit voltage

500VDC/+20%-0%

1000VDC/+20%-0%

2500VDC/+20%-0%

5000VDC/+20%-0%

-

Continuity check

Buzzer sounds at 50Ω

Display

6000 Counts

Current consumption

About 1000mA (During measurement)

25mA approx.

Withstand Voltage

5320V AC for 5 seconds

Safety standard

IEC 61010-1 CAT IV 600V Pollution Degree 2

Power supply

DC12V : R14 x 8

Dimensions

198 ( L) x 148 (W) x 86 ( D) mm

Weight

1438g approx.

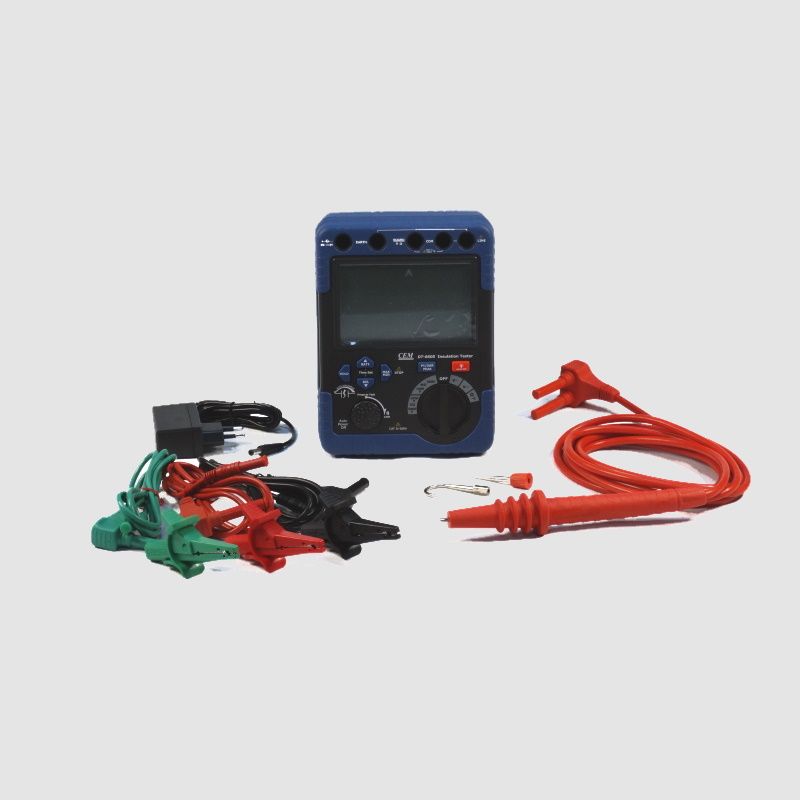

Accessories

Test leads, Instruction Manual and 120V/250V AC adaptor
