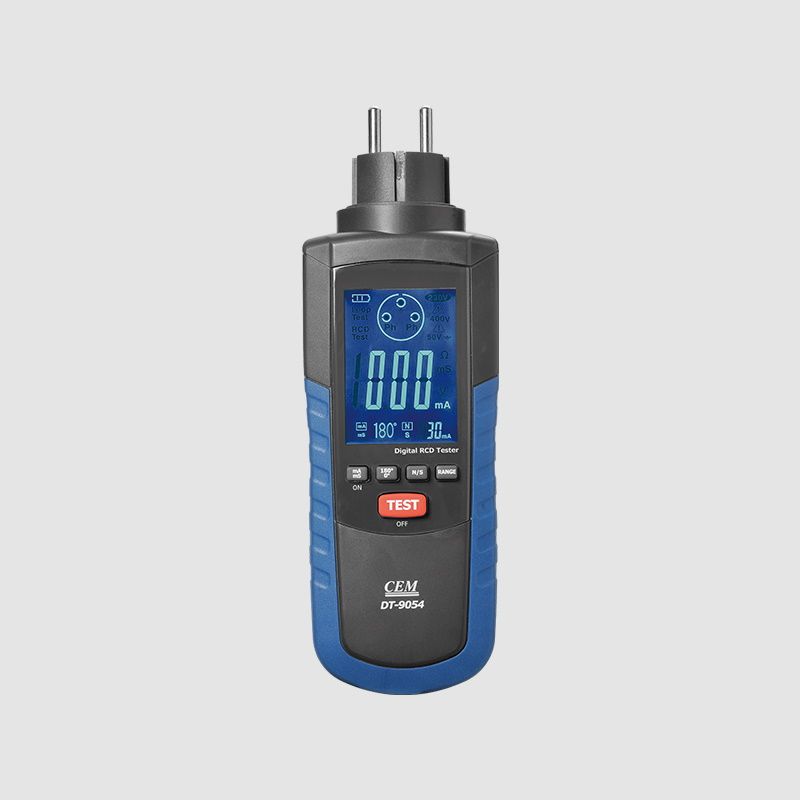

DT-9054 Digital RCD Tester
DT-9054 Digital RCD Tester Product code: DT-9054 Model: DT-9054 Brand: CEM Instruments Warranty Time: 2 Yıl REQUEST FOR SUBMISSION
Share:
Save Print

   The digital RCD tester is used to test and measure the function parameters of residual current devices (RCDs) in 230-V power grids. Both the trigger time and the tripping current can be detected as the safety-related parameters of RCD switches

  • Mains voltage indicator
  • PE/L indicator
  • Fault voltage indicator (contact voltage)
  • Circuit breaker test with a defined error current (10 - 650 mA), tripping time, triggered at negative/positive half-wave, normal/delayed (selective, trigger test time up to 30 s), ramp test
  • Striking optical results by changing the color of the display backlight
  • Also for testing safety switches
  • Confirms to EN 61010-1, CAT-III 600V.
   Product Code: DT-9054



Save Print

   Please contact us.

Save Print

   Please look the file section.

Downloadable Files DT-9054 - Datasheet
