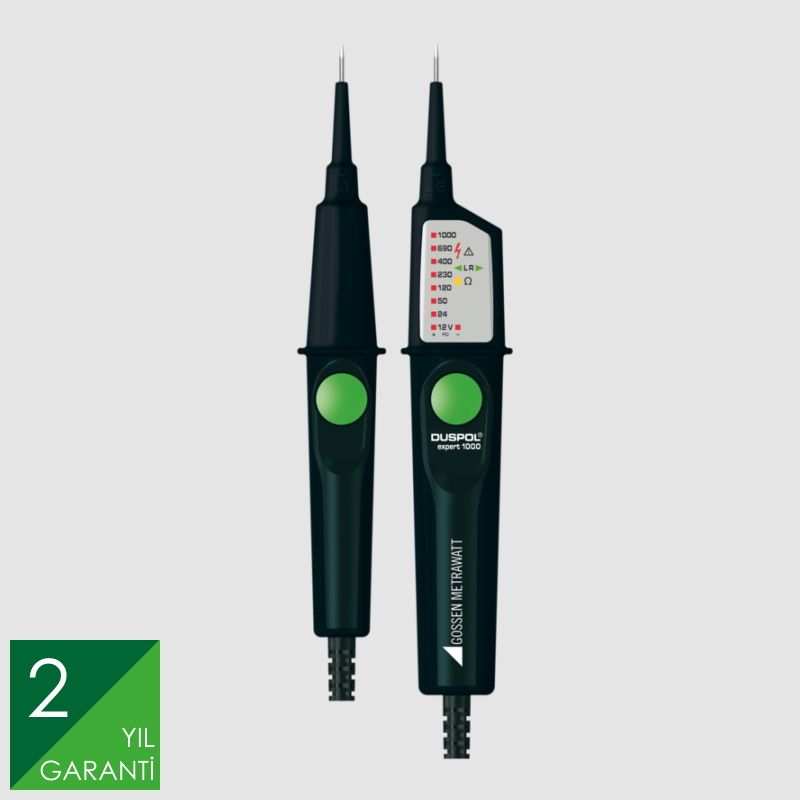

DUSPOL Epert 1000 Voltage Tester
Product code: M611E
Model: DUSPOL Expert 1000
Brand: Gossen Metrawatt
Warranty Time: 24
REQUEST FOR SUBMISSION
Save
Print
Suitable for electrical engineering, industry, maintenance and service (troubleshooting)
- Voltage from 12 - 1000 V AC/DC (LED)
- Display levels: 12, 24, 50, 120, 230, 400, 690, 1000 V AC/DC
- Optical continuity test up to 100 kΩ (yellow LED)
- Phase sequence test (green LED) / phase test (red LED), polarity test (LED)
- Direct display without key acknowledgment (high impedance testing)
- Load switched via pushbutton (high impedance testing)
- Intentional tripping of the RCCB
- Vibration alarm in the tester handle
- Measurement point illumination can be activated
- IP65 protection (dust-proof / protected against water jets)
- Rugged housing design with rubberized handle
- Overvoltage category: CAT IV 600 V, CAT III 1000 V
- Includes two 1.5 V AAA batteries (LR03) (voltage display as of 50 V even with dead batteries!)
- Tested and approved in accordance with DIN EN 61243-3, VDE 0682-401:2011-02
Product Code: M611E
