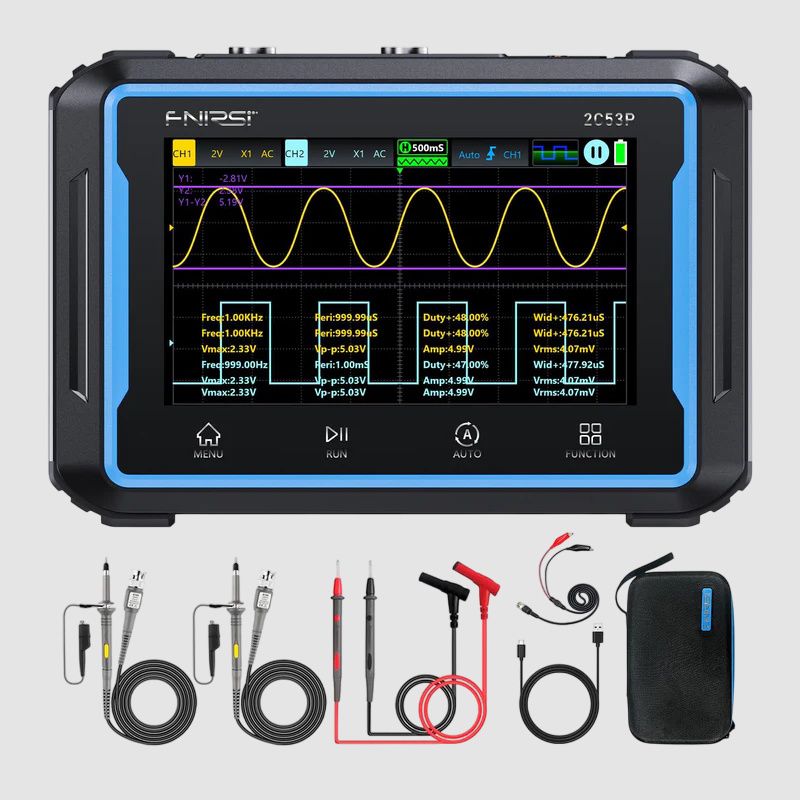

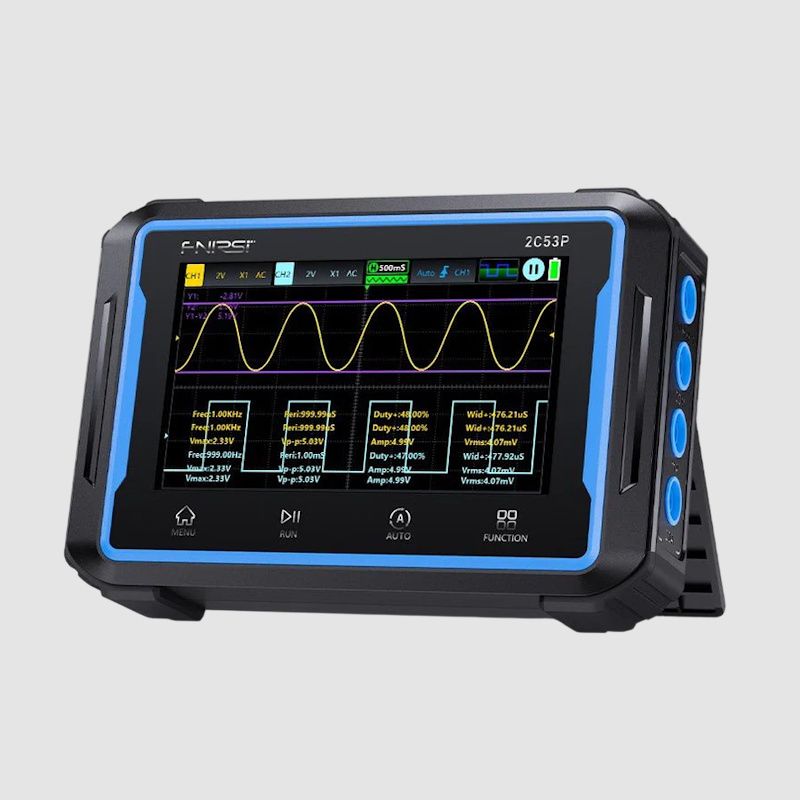

Fnirsi 2C53P 50MHz Tablet-Type Digital Oscilloscope (3-in-1)

The Fnirsi 2C53P 50MHz Tablet-Style Digital Oscilloscope (3-in-1) is a versatile and highly practical dual-channel digital oscilloscope designed for professionals in the maintenance and research industries, launched by Fnirsi. This device combines the functions of an oscilloscope, a multimeter, and a signal generator.

Key Features

• Dual-Channel Oscilloscope Multimeter: Upgraded from the 2C23T model. The 2C53P oscilloscope has a sampling rate of 250 MS/s and a bandwidth of 50 MHz. Multimeter: 19,999 counts, 5 measurement values, maximum and minimum display. 4.3-inch IPS touchscreen with 480 x 272 high resolution.
• DDS Signal Generator: Outputs 12 waveforms with a maximum frequency of 10 MHz. The FPGA+MCU+ADC architecture provides powerful waveform capture and supports waveform recording, display, and export for analysis.
• Increased Efficiency: Offers a one-touch AUTO feature for fast measurements and simplified operations with auto/normal/single trigger modes. Suitable for both periodic analog and non-periodic digital signals.
• Comprehensive Analysis: X-Y mode compares the phase, amplitude, and frequency of two signals, while FFT spectrum analysis estimates harmonic content and manages complex signals.
• Long Battery Life: The built-in 4,000 mAh battery provides up to 4 hours of use with Type-C charging for uninterrupted operation.

Device Key Features

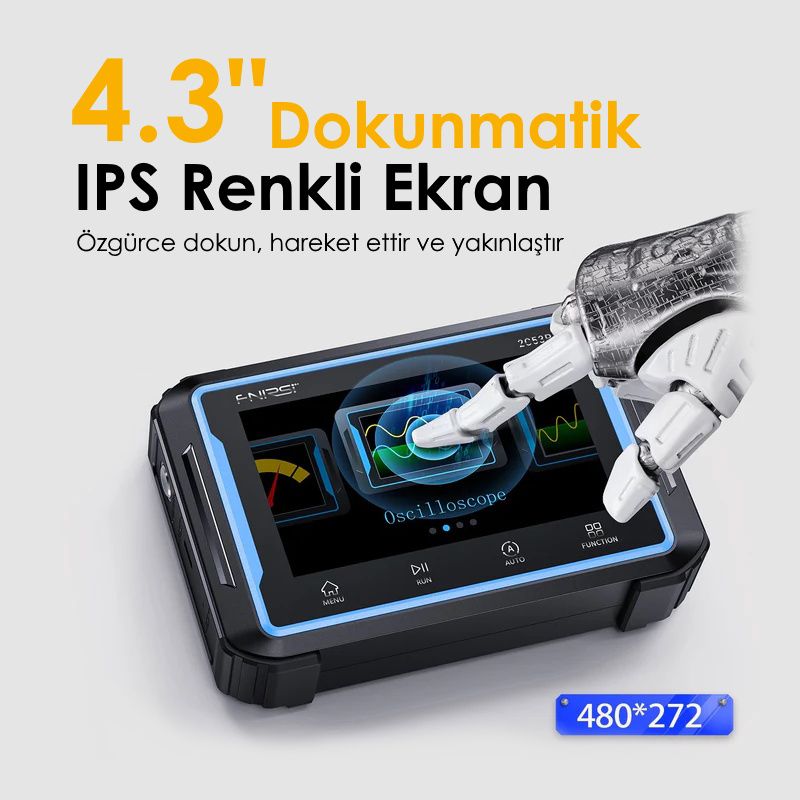

• Screen and resolution: 4.3" (480 x 272 pixels)
• Screen material: Tempered glass surface + glass touchscreen + IPS color display
• Screen lighting: Adjustable brightness
• Power: TYPE-C (5V/2A)
• Battery: 4,000 mAh lithium battery
• Dimensions: 145 x 98 x 35 mm
• Product Weight: Approximately 360 grams

Oscilloscope Key Features

• Channel: Dual channel
• Bandwidth: 50 MHz
• Sampling: 250MSa/s
• Vertical resolution: 8 bits

Multimeter Basic Features

• DC voltage: 1000 V
• AC voltage: 760 V
• DC current: 10 A
• AC current: 10 A
• Resistance, capacitance, temperature, continuity, and diode test

Signal Generator Basic Features

• Channel: Single channel
• Frequency: Sine wave: 10 MHz, other waveforms 5 MHz
• Signal types: sinusoidal wave, square wave, sawtooth wave, half-wave, full-wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-tone, and synchronization pulse

Product code: 2C53P

Please contact us.

Please look the file section for more technical info.
