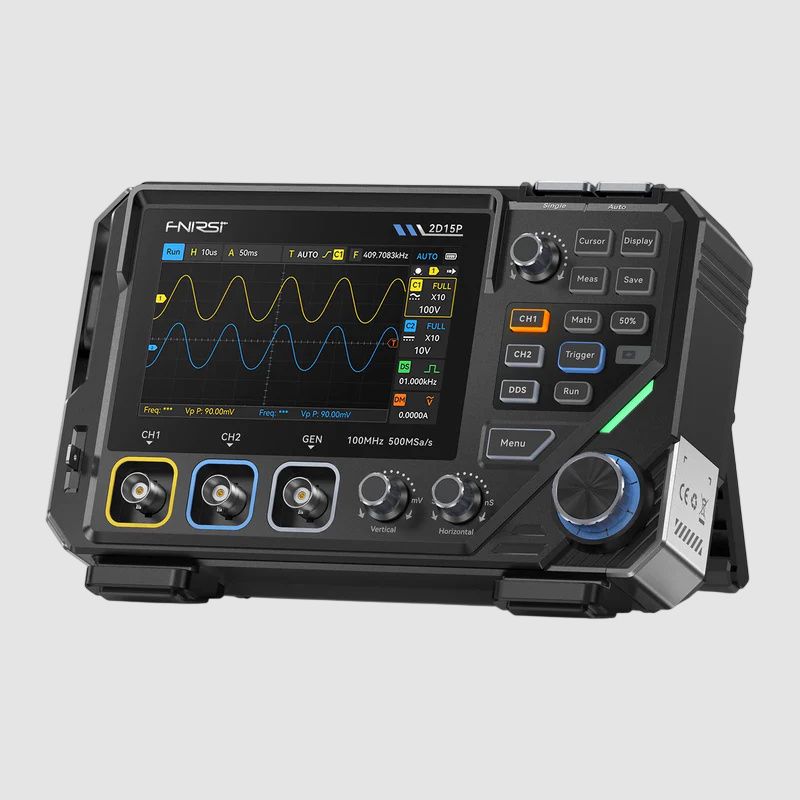

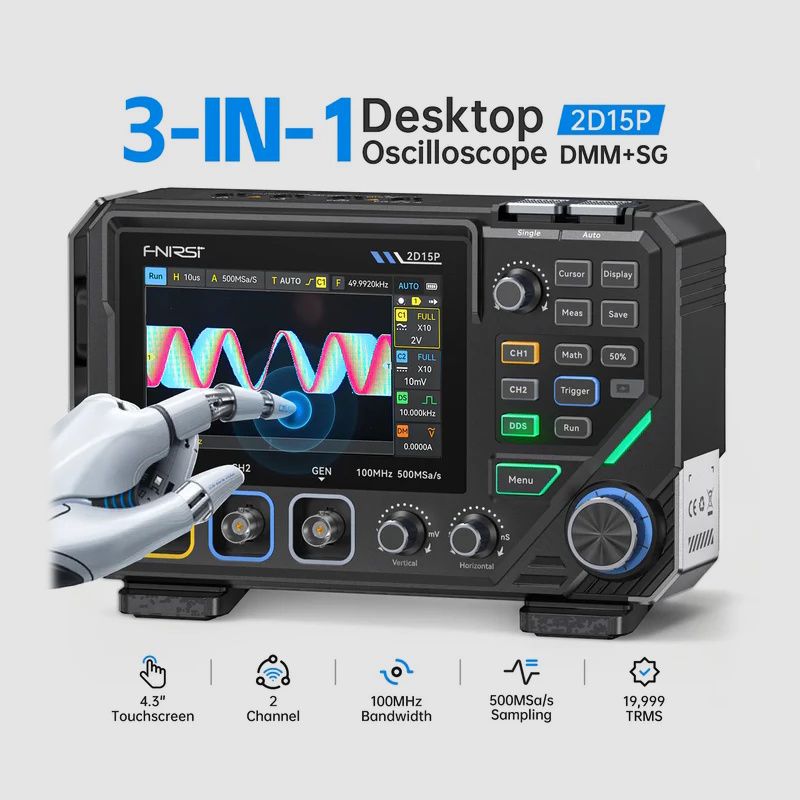

Fnirsi 2D15P 100MHz Phosphor Oscilloscope (3-in-1)

The Fnirsi 2D15P combines physical buttons with a 4.3" capacitive touchscreen. It offers 500 MSa/s sampling, 100 MHz single-channel bandwidth (50 MHz dual-channel), and 10K–1M memory depth. Features include 128-level grayscale display, 1200 fps waveform capture, math functions, 18 automatic measurements, a 10 MHz waveform generator, and a 19999 Counts True RMS multimeter supporting voltage, current, resistance, capacitance, diode, and continuity tests.

Key Features

• Dual-Channel Input - 100 MHz single-channel / 50 MHz dual-channel operation.
• Selectable Memory Depths - 10 K / 100 K / 1 M for flexible data capture.
• 20 MHz Bandwidth Limit - Reduces noise for accurate ripple and precision testing.
• Grayscale & Color Temperature Visualization - Reveal waveform persistence and signal dynamics.
• Math Operations (Add, Subtract, Multiply, Divide, etc.) - Real-time signal computation.
• XY Mode & Infinite Persistence - Visualize phase relationships and waveform overlap.
• Cursor Function & 13 Auto Measurements - Quick and clear parameter analysis.
• Auto / Normal / Single Trigger Modes - Flexible signal capture for every testing need.
• 10 MHz DDS Signal Generator - Output up to 11 common waveforms with adjustable amplitude and duty cycle.
• True RMS Multimeter (19,999 Counts) - Supports V/A (AC/DC), Ω, capacitance, diode, and continuity tests.
• Curve View Function - Displays real-time trend graphs for visual signal tracking.
• FPGA + MCU + ADC Architecture - Ensures high-speed signal processing and stable performance.
• Compact & Lightweight Design - 30 % lighter body with a powerful 5000 mAh battery.
• Wave Save & Export Function - Store and transfer waveform data for post-analysis.
• Type-C Charging Interface - Convenient, fast, and universal power connection.

Product code: 2D15P

Please contact us.

Please look the file section for more technical info.
