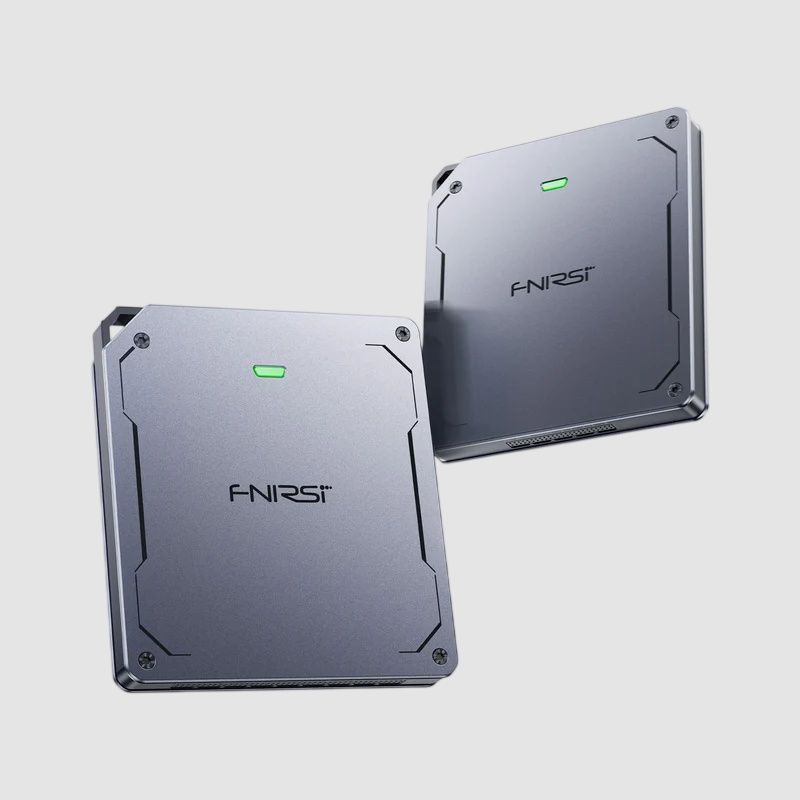

Fnirsi DLA-32 Plus Logic Analyzer

Fnirsi DLA-16/32 Plus delivers up to 32 channels, 1GHz sampling and 4Gbit memory for high-speed digital signal capture, timing analysis and protocol decoding.

Feature

• 16CH / 32CH Flexible Logic Analysis: Choose between DLA-16 Plus with 16 digital channels and DLA-32 Plus with 32 digital channels, providing a suitable channel count for different digital debugging requirements.
• Up to 1GHz High-Speed Sampling: Both models support up to 1CH/1GHz and 8CH/1GHz sampling. DLA-16 Plus reaches 16CH/500MHz, while DLA-32 Plus supports up to 32CH/250MHz for broader simultaneous signal visibility.
• USB 3.0 High-Speed Data Transfer: USB 3.0 connectivity provides up to 5Gbps transfer speed, supporting efficient transmission of captured digital waveform data between the logic analyzer and computer.
• 4Gbit Hardware Memory: Both models feature 4Gbit hardware memory for Buffer-mode acquisition, providing substantial storage capacity for high-speed digital signal capture and analysis.
• Flexible Stream Sampling: DLA-16 Plus supports up to 16CH/125MHz Stream sampling, while DLA-32 Plus supports up to 32CH/50MHz, allowing longer-duration digital signal acquisition with more channels.
• Buffer, Stream & Roll Acquisition Modes: Use Buffer mode for high-speed capture, Stream mode for long-duration recording, or Roll mode for real-time waveform monitoring according to the measurement task.
• Versatile Triggering: DLA-16 Plus and DLA-32 Plus support rising-edge, falling-edge, high-level, low-level, and any-edge triggering for accurate digital signal capture.
• Advanced Triggering on DLA-32 Plus: Supports serial and parallel triggering, with up to 16 configurable parallel trigger levels and flexible serial matching conditions.
• 120+ Protocol Decoding: Supports more than 120 protocol decoding options and an open protocol library for custom protocol support, helping analyze a wide range of digital communication signals.
• 4-Channel PWM Output: Four PWM output channels provide 3.3V signals from 1Hz to 20MHz, adding signal-output capability for hardware debugging and verification.
• Digital Waveform Measurements: Supports pulse width, period, frequency, duty cycle, cross-channel and time-difference measurements for detailed timing and waveform analysis.
• Efficient Waveform Search & Navigation: Search captured data by signal level or edge, zoom into selected waveform regions, pan through captured data and navigate multiple channels efficiently.
• Flexible Data Storage & Export: Save projects in .demo format and export captured data as CSV or BIN files for further analysis, documentation and data sharing.
• Customizable DLA-Logic Software: Supports multiple pages, custom channel colors, customizable shortcuts, firmware updates, Chinese/English interfaces and light/dark themes.
• Compact USB-C Design: Both models use a compact approximately 90 × 81 × 11.5mm design with USB Type-C connectivity and status LED indicators for quick device-state identification.

Which Model Should You Choose?

• DLA-16 Plus
  16CH / 500MHz maximum Buffer sampling
  16CH / 125MHz maximum Stream sampling
  A strong choice when 16 channels are sufficient and higher sampling rates across all 16 channels are preferred.
• DLA-32 Plus
  32CH / 250MHz maximum Buffer sampling
  32CH / 50MHz maximum Stream sampling
  A better fit for complex digital systems that require simultaneous observation of more signals across up to 32 channels.

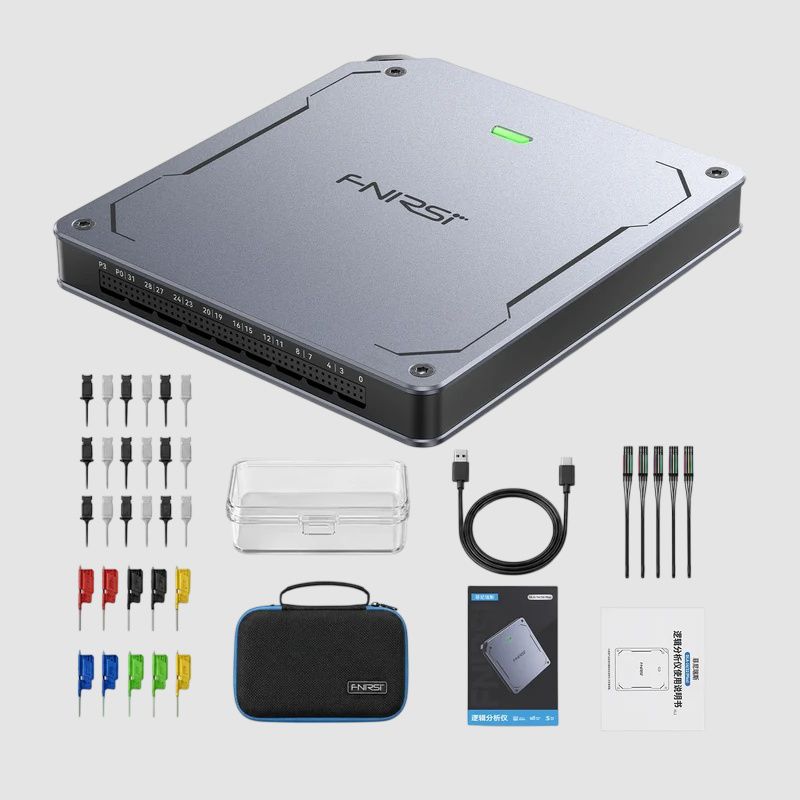

Package List

• DLA-32 Plus Logic Analyzer
• 4 Sets x 5 Shielded Cables
• 18pcs Mini IC Test Hooks (High Configuration Version)
• USB 3.0 Data Cable
• 10pcs IC Test Hooks
• Transparent Storage Case for Test Hooks
• Storage Bag
• User Manual
• Packaging Box

Product code: DLA-32-Plus

Please contact us.

Please look the file section for more technical info.
