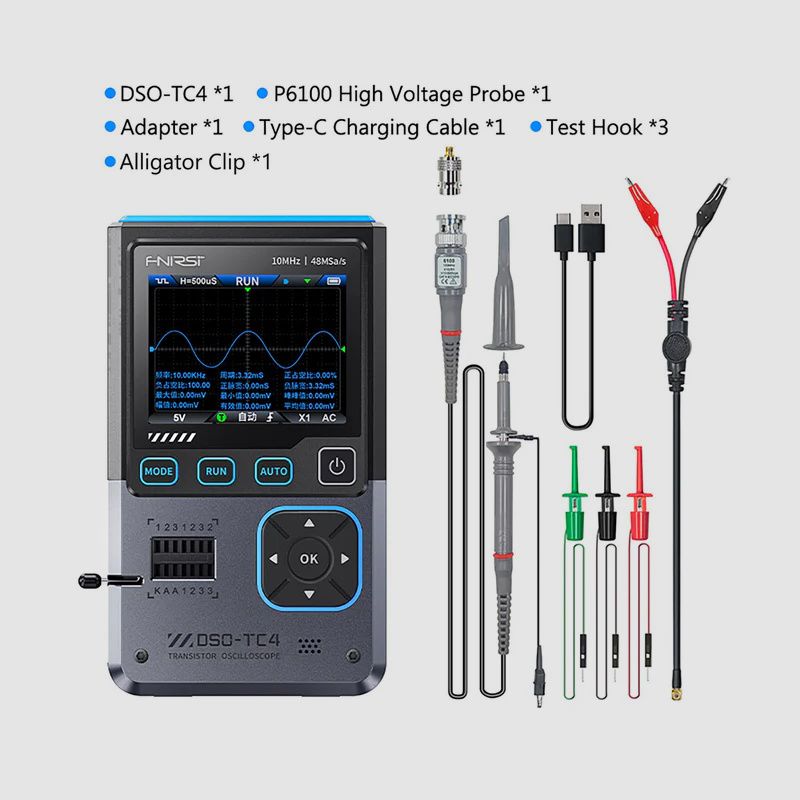

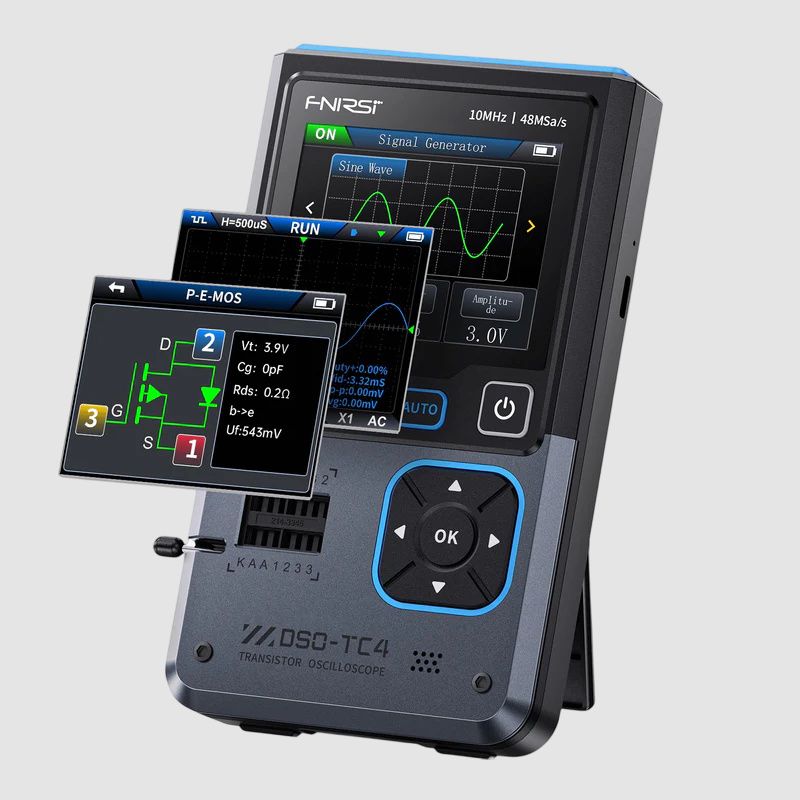

DSO-TC4 is a multifunctional transistor oscilloscope launched by Fnirsi, which is comprehensive and practical and designed for maintenance and R&D industries. It integrates an oscilloscope, a signal generator and a transistor.
The main features of the product are as follows:
Oscilloscope functions:
Sampling rate: 48MSa/s
Analog bandwidth: 10MHz
Voltage protection: ±400V
Waveform storage: supports screenshot saving and display, which is convenient for data analysis
Signal generator function:
Supports 13 waveform outputs, frequency range 0-50KHz, output voltage 0-3v adjustable.
Output parameters (frequency, amplitude, duty cycle) are adjustable, flexible to meet various needs
Transistor function:
High efficiency: Automatically determine the type and pin layout of the component under test, simplify the operation process and improve test efficiency
Various categories: Detect and analyze the performance and characteristics of semiconductor components such as transistors, diodes, triodes, field effect (FET), etc.
Portable design:
Equipped with 2.8-inch TFT color screen, the image is clear and intuitive
Built-in high-capacity rechargeable lithium battery (1500mAh), standby time 4 hours
Small and lightweight, suitable for mobile use.
Please refer to the files tab for technical information.
Product Code: DSO-TC4
