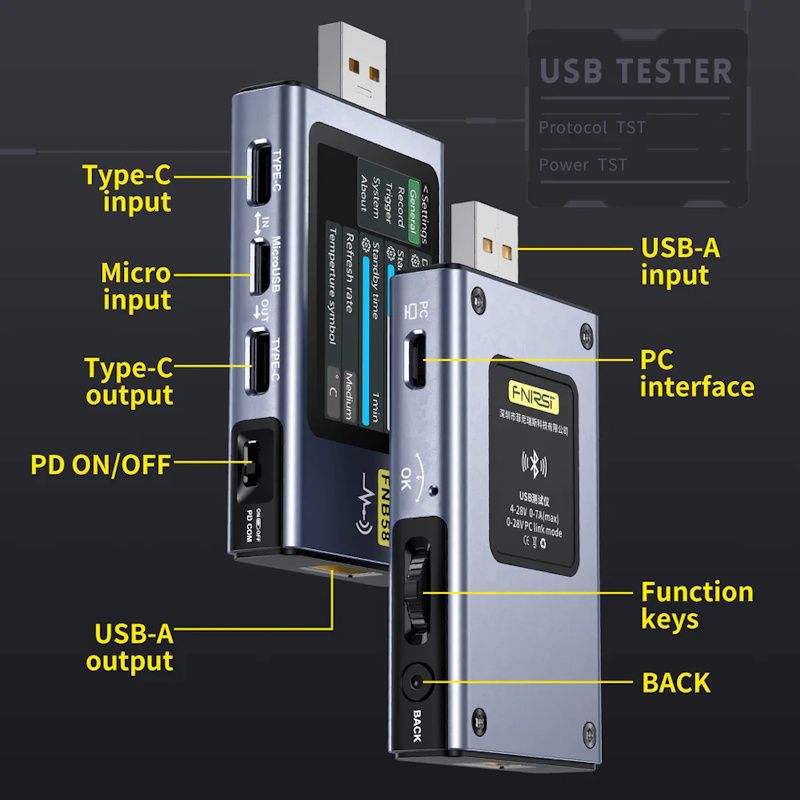

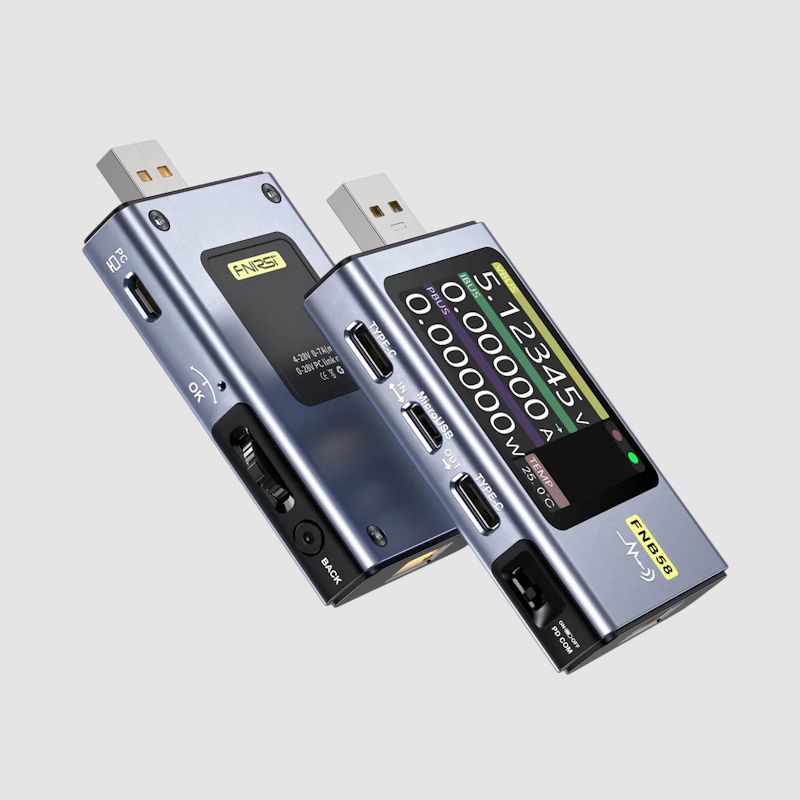

The Fnirsi FNB58 USB tester is a high-reliability, high-safety USB voltage and current detection meter and a mobile communication terminal fast charging trigger. It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers.
Specifications
- Monitor Voltage: 4-28V
- Monitor Current: 0-7A
- Monitor Power: 0-140W
- Capacity: 0-9999.99Ah
- Equipmnt Running Time & Record Time: 99days 23:59:59
Please see the files tab for detailed technical information.
Product Code: FNB58-BT
Specifications
- Monitor Voltage: 4-28V
- Monitor Current: 0-7A
- Monitor Power: 0-140W
- Capacity: 0-9999.99Ah
- Equipmnt Running Time & Record Time: 99days 23:59:59
Please see the files tab for detailed technical information.
