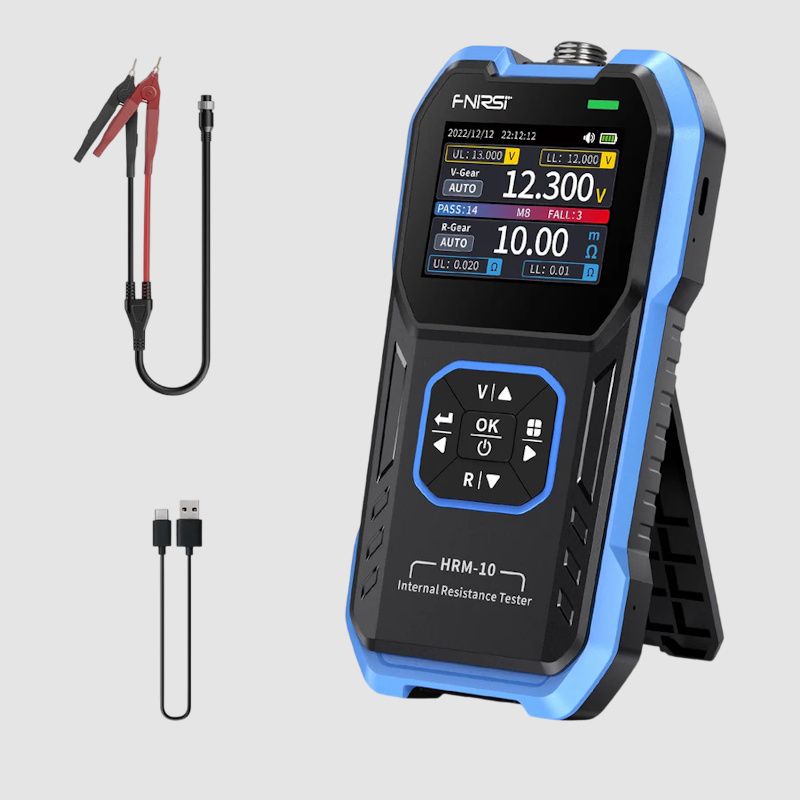

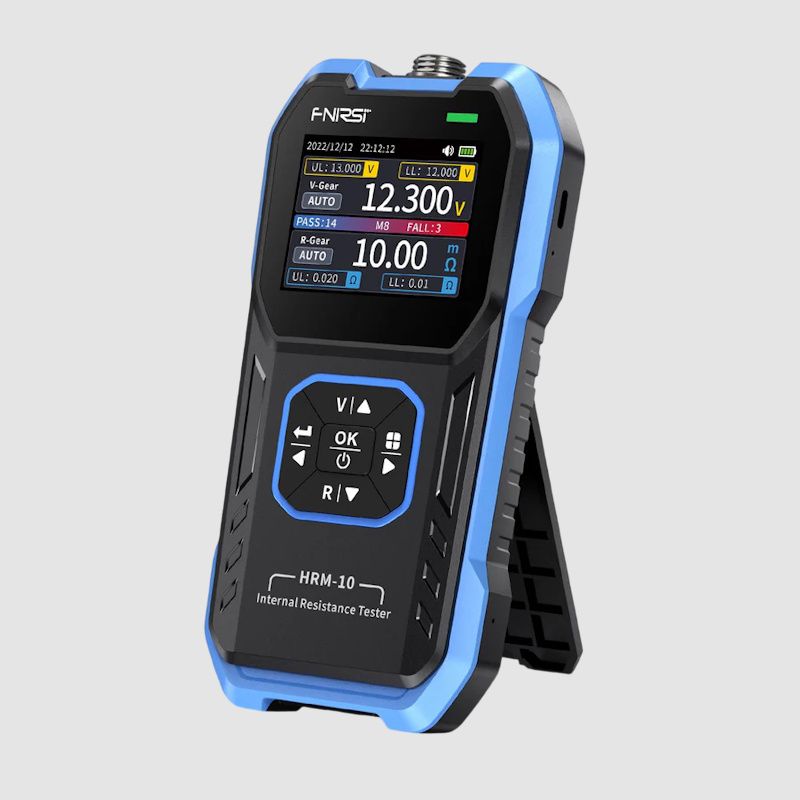

Fnirsi "HRM-10" is our company's first handheld high-precision battery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.
Specifications
- Type: Vehicle Battery Tester
- Voltage Measuring Range: 0 - ±100V (DC)
- Voltage Gear: Auto, 1V, 10V, 100V
- Resistance Measuring Range: 0 - 200Ω
- Resistance Gear: Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
- Accuracy: ±0.5%
- Signal Frequency: AC 1Khz
- Size: 158.7x80.5x28.4mm
- Weight: 225g
Please see the files tab for detailed technical information.
