Fnirsi LCR-ST2-PLUS Mini Smart Tweezers LCR Meter

The Fnirsi LCR-ST2 is a compact dual-mode LCR meter that supports both tweezer and Kelvin-clip testing, ideal for components of any size. It measures R/C/L, diodes, and up to 30V with five test frequencies and a 1.47" HD display. Features include full-band sweep (100Hz - 100kHz), intelligent sorting, dual-mode comparison, magnetic attachment, and a 300mAh battery—perfect for fast, precise testing in any environment.

Features:

• Wide Range Component Measurement
  Accurately measures resistance (10 mΩ - 10 MΩ), capacitance (1 pF - 22 mF), inductance (1 μH - 10 H), diode (≤0.7 V), and voltage (±30 V).
• Comprehensive Electrical Parameters
  Provides D/Q/Z/X/θ/ESR readings to fully characterize component behavior and performance.
• Five Selectable Test Frequencies
  Offers professional testing at 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz for different types of components and applications.
• Four RMS Test Levels
  Adjustable excitation levels (0.1V / 0.3V / 0.6V / 1.0V) enable optimized measurement stability across various component types.

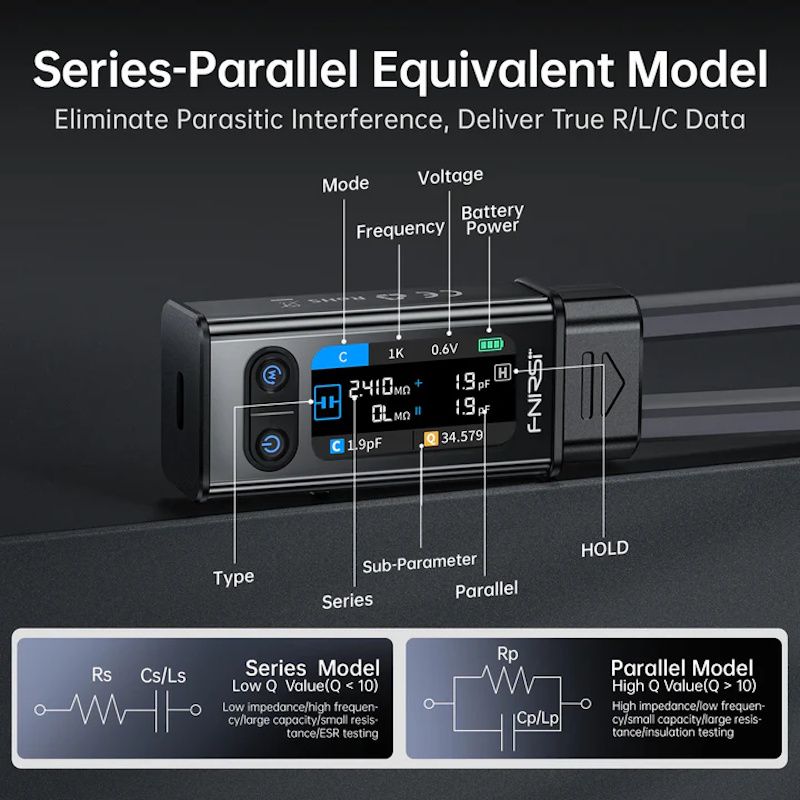

• Dual Series/Parallel Equivalent Comparison
  Simultaneously displays series and parallel equivalent values to minimize parasitic interference and enhance measurement accuracy.
• Full-Band Sweep Mode (100Hz–100kHz)
  Provides fast multi-frequency analysis with a single action, enabling detailed characterization of component frequency response.
• Intelligent Sorting with Tolerance Grading
  Automatically evaluates components based on preset nominal values and tolerances for rapid OK/NG batch testing.

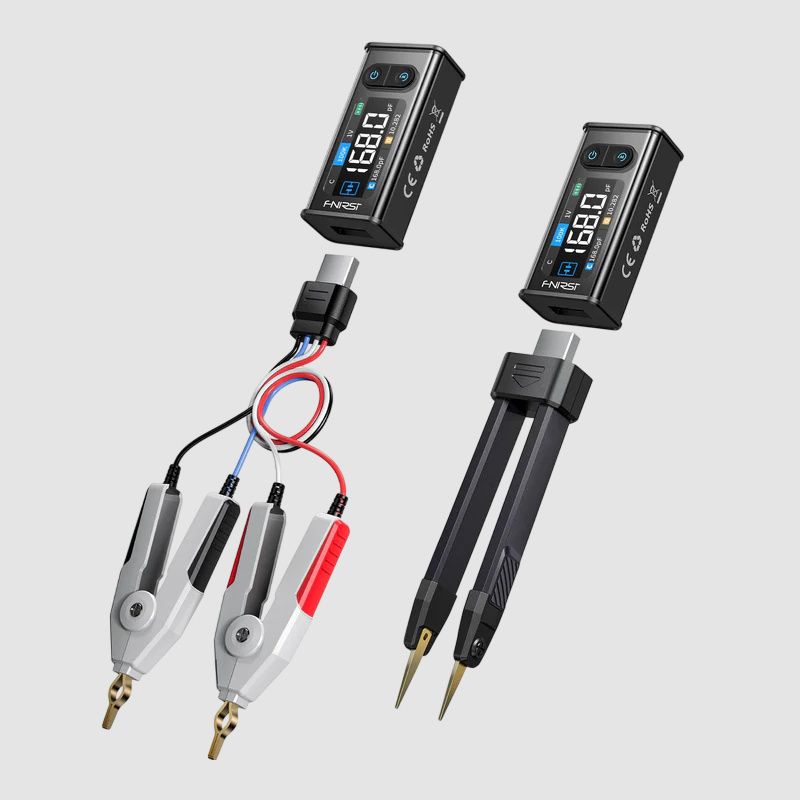

• Dual-Form Testing: Tweezer Tips + Kelvin Clip
  Straight and curved tweezer tips allow easy testing of small components, while the Kelvin clip provides precise four-wire measurement for larger or through-hole components.
• Smart Recognition & Display Functions
  Features automatic R/C/L component recognition, dual-parameter display, HOLD/Max/Min, and adjustable system settings.
• Auto-Rotate Orientation
  Hand-sensing screen rotation supports both left-handed and right-handed usage for effortless operation.
• Portable Magnetic Design
  Includes a magnetic attachment for easy storage and handling, ideal for fast access in field environments.
• 1.47" HD Color Display
  Offers clear, high-contrast visualization of measurement data for efficient on-site and laboratory usage.
• Long Battery Life & Type-C Charging
  Powered by a 300mAh lithium battery with Type-C charging, delivering up to ~3 hours of continuous operation.

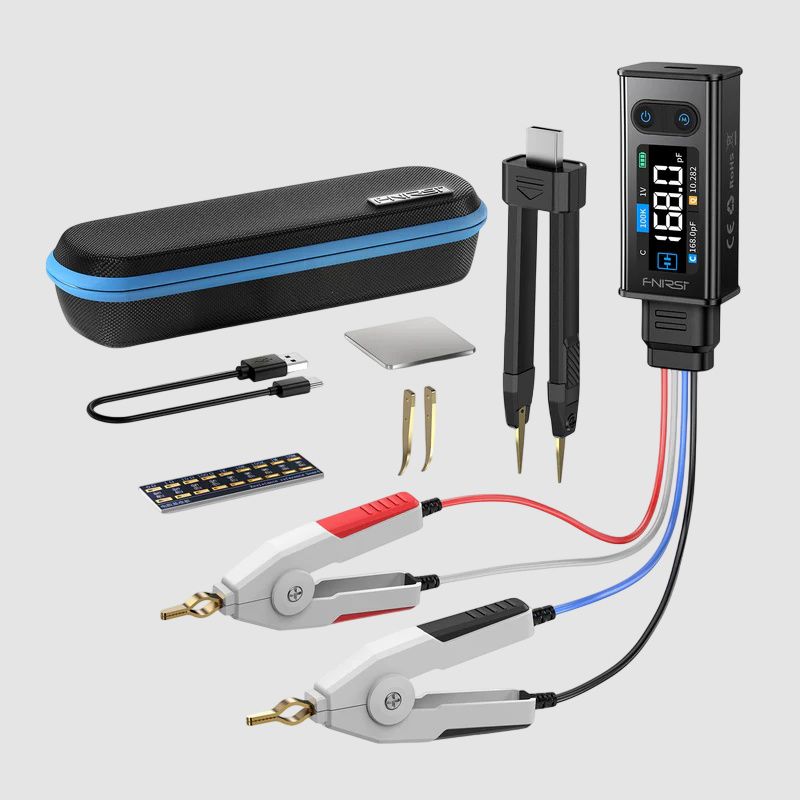

Package List

• LCR-ST2 Tweezer
• Storage Bag
• Curved Tip
• Shorting Plate
• Kelvin Test Clip
• Data Cable

Product code: LCR-ST2-PLUS

Please contact us.

Please look the file section for more technical info.
