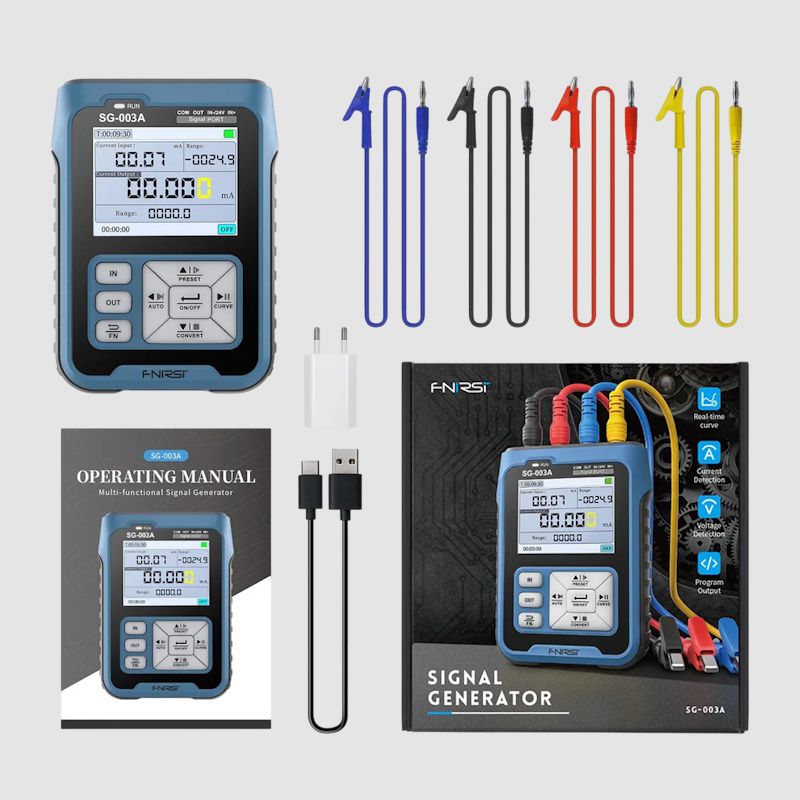

Fnirsi SG-003A Signal Generator

Fnirsi SG-003A signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve and so forth. Friendly operation interface is easy to use.

The Fnirsi SG-003A signal generator is small and light but has a long standby time and high precision.Easy to carry when you go out to work.

Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day.

Highlights

• Physical & Engineering: Signals are displayed as physical or engineering (ie pure quantity) values. For example: the current signal of 4-20mA corresponds to 0-100, that is 4mA corresponds to 0, 12mA corresponds to 50, and 20mA corresponds to 100.
• Real-time Curve: The change trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set. The current-voltage analog simulator can also adjust the curve within the range of the max and min values.
• Signal Conversion: Fnirsi SG-003A signal generator can convert input signals into an output signal, and converted into different physical quantities. The input signal is converted into a current signal, and the input range is 0-1000hz into 4-20mA.

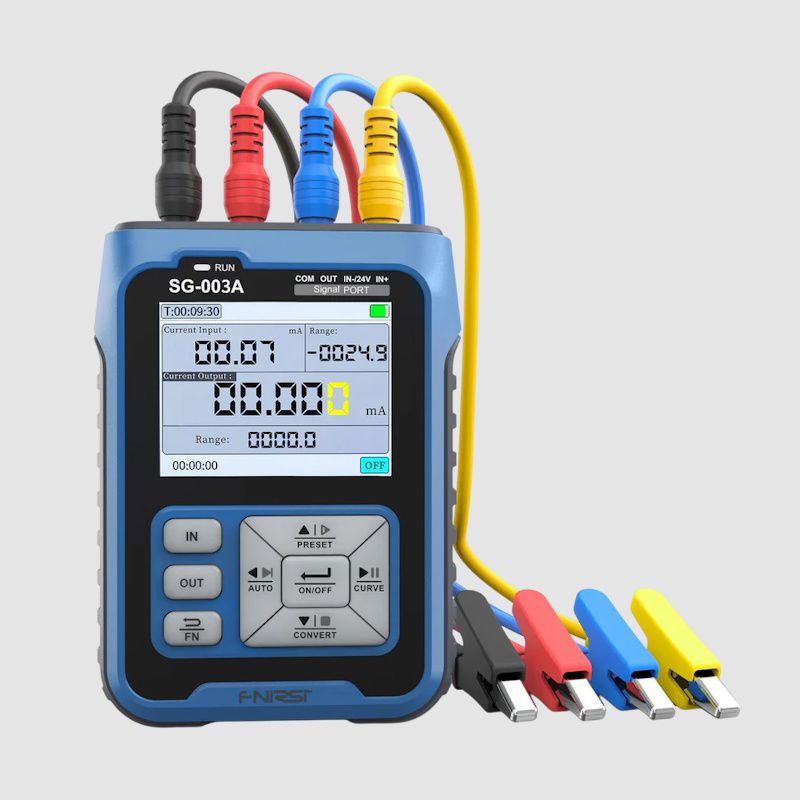

• Multiple Port Signal Generator: The Blue (IN-) is an alternate and it is also an input port that can be switched to a 24V test power supply. Red(OUT) and black(COM) form an output port. Yellow(IN+) and Blue(IN-) form the input port.
• Preset Value & Output: Fnirsi SG-003A supports 4 groups of signal values can be preset and the output function of continuously changing the size according to the setting parameters, and can select three modes: monotonous rise, fall and cycle.

Features

• Expect with the conventional signal input and output functions.
• Signals displayed as physical or engineering values, corresponding linearly.
• Voltage and current have automatic output function, it can choose a single rise, three modes of single drop and cycle.
• Four preset groups for quick output adjustment.
• With input to output conversion, voltage conversion active current mode, passive mode and current conversion voltage mode.
• The output has a custom function, the upper and lower output limits can be set arbitrarily.
• Displays input and output signal trends with adjustable sampling.
• Automatically adjusts curve within specified range over time.
• Voltage input diagram, current input diagram, the frame rate is 10 frames.
• PWM output can set frequency and duty cycle respectively.
• Real-time curve: Real-time observation of changes in voltage and current
• It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium battery is 3000mHA, fully charged in 4-6 hours, standby time is 26 hours, the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)
• The high-definition TFT color LCD screen makes the reading more eye-catching. The resolution is 240*320.Low power consumption, Maximum power consumption: 0.32W
• Fnirsi SG-003A communicates via RS485 with configuration software or PLC.
• Firmware upgrade via USB emulated U disk.

Product Code: SG-003A

Please contact us.

Please look the file section for more technical info.
