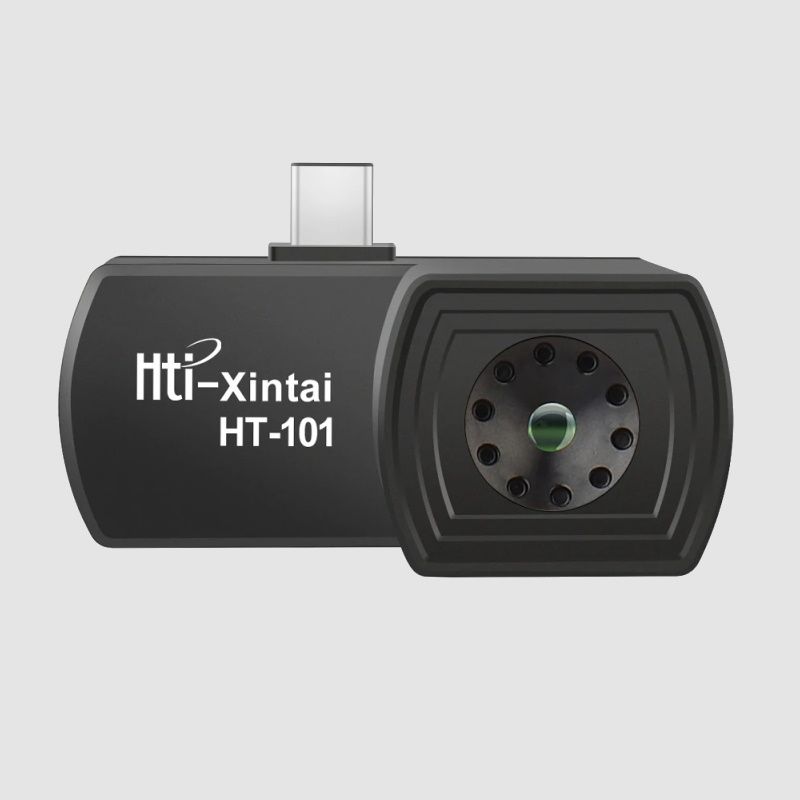

HTI HT-101 Mobile Phone Thermal Imager（220x160）
HTI HT-101 Mobile Phone Thermal Imager（220x160）
HTI HT-101 Mobile Phone Thermal Imager（220x160）
HTI HT-101 Mobile Phone Thermal Imager（220x160）
HTI HT-101 Mobile Phone Thermal Imager（220x160） Product code: HT-101 Model: HT-101 Brand: HTI Instruments Warranty Time: 2 Yıl REQUEST FOR SUBMISSION
Share:
Save Print

HTI HT-101 Mobile Phone Thermal Imager（220x160）

The device is connected with phone via USB,and check the imagers on APP.



Specification

  • Resolution:220*160
  • Working Temperature: -20～65℃
  • Emissivity：Adjustable from 0.01 to 1.0
  • Imager Onput Frame Rate:9Hz
  • Operating Temperature: 0～50℃
  • Operating Humidity: 10%～80%RH
  • Power Supply:Offered by phone
  • Wavelength range:7.5μm~14μm
  • Measure range: 30m
  • Temperature range: -40～330℃
  • Image Stroage: Cell Pwore
  • Fov/Shortest focal length:35
  • App screen with multiple measure maye
  • Support Android 4.3above (with OTG function)

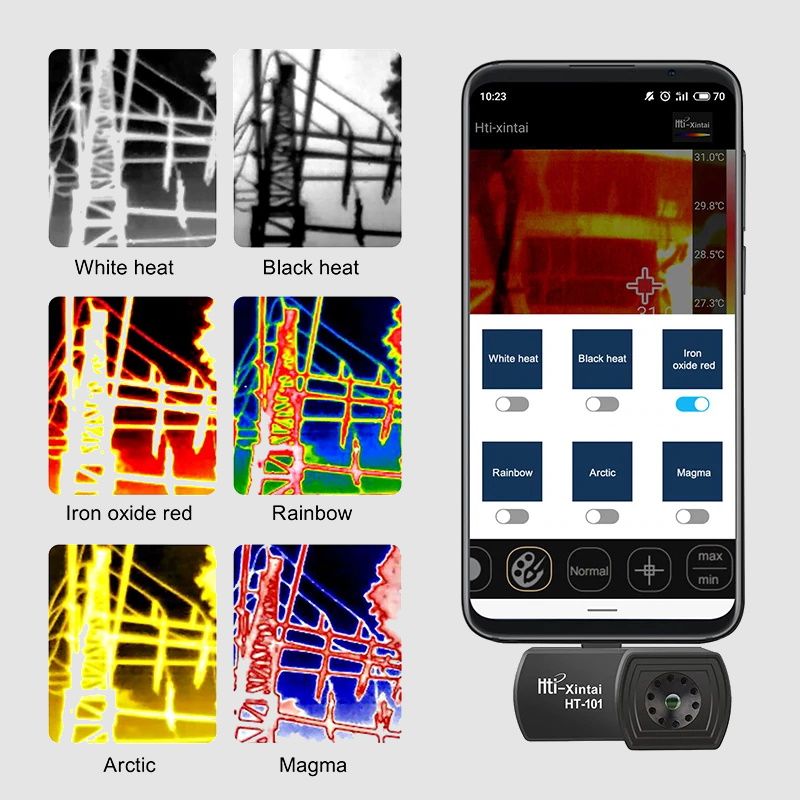

  • Palette:white/black/rainbow/iron coloy
  • Interface Type: micro usb/type-c



Product Code: HT-101

Save Print

Please contact us.

Save Print

Please look the file section.

- - - - - -
Downloadable Files HTI HT-101 - Technical Datasheet and Manual (162 kB)
