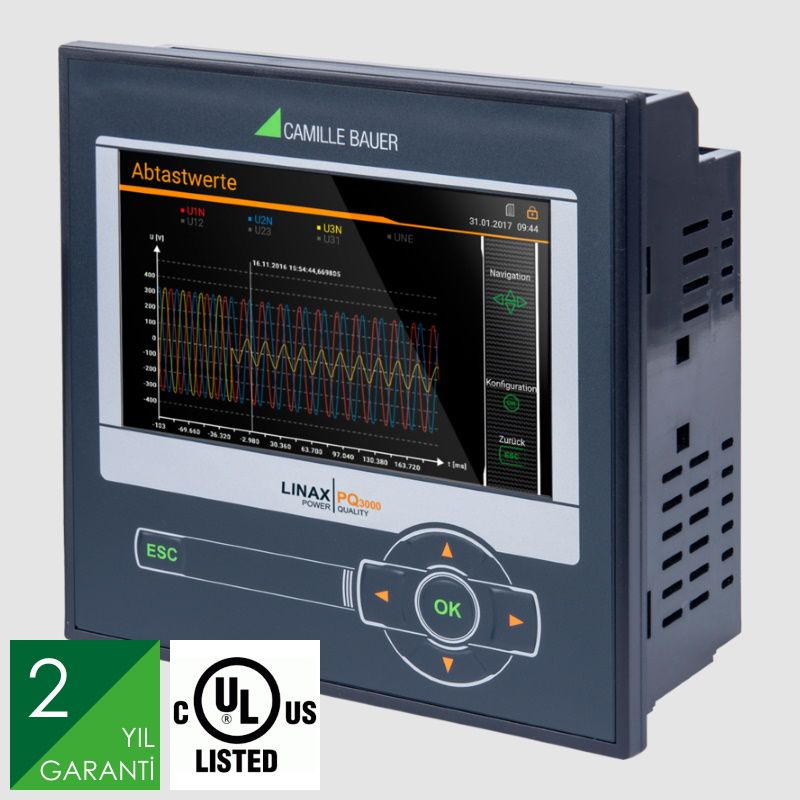

Linax PQ3000 - Multifunctional Power Quality Monitor

Transparent monitoring of power quality and energy consumption

The LINAX PQ3000 combines the characteristics of a power quality measurement device with functions for comprehensive energy consumption and condition monitoring. It stands out by the display quality and intuitive operation.

The modern, multi-lingual design and the high-resolution colour TFT display support the user in data analysis on site. The integrated webserver allows remote access to all measured data and the parameterization of the device. The device provides a wide functionality, which can be extended further by means of optional components.

Functions

• Certified power quality analysis, class A acc. IEC 61000-4-30 Ed. 3
• Standardized data format for power quality data: PQDIF
• Energy consumption analysis, class 0.5S (meters, load profiles, trend analysis)
• EN50160 conformity reports via SmartCollect PM20
• On-site event display
• Direct measurement up to 690 V, CAT III
• Condition monitoring
• Limit monitoring with alarming
• Universal process I/O
• Graphical measurement displays
• High resolution color TFT display
• PQ-Easy Report integrated

Ethernet interface

• Device parameterization via WEB browser
• Firmware update
• Measurement display (http)
• Remote acquisition of measurements via control system (Modbus/TCP)
• Service and maintenance

Product Code: PQ3000

   Please contact us.

   Please look the file section.
