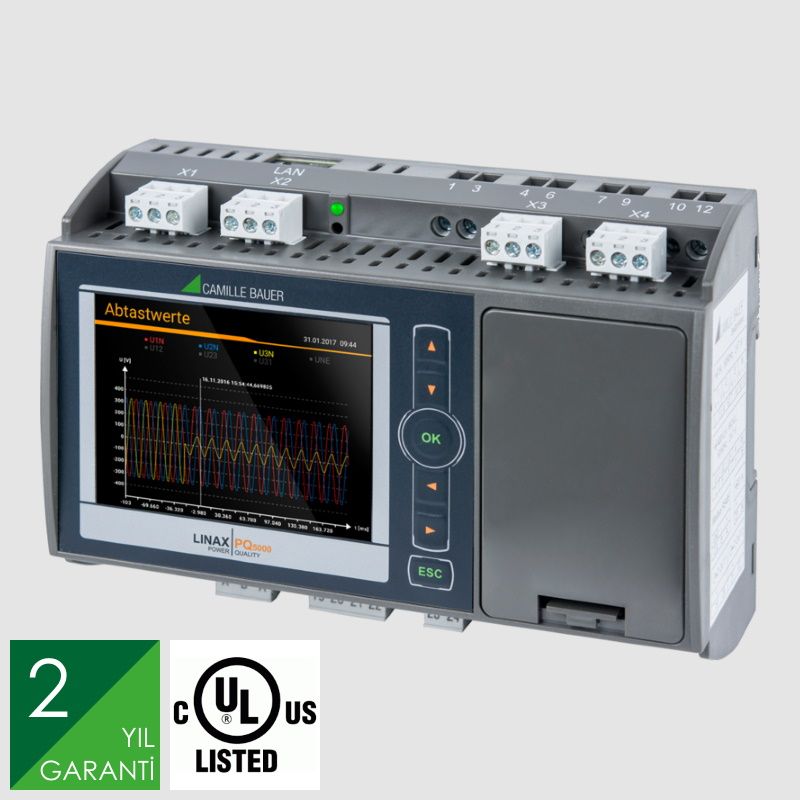

Linax PQ5000 - Multifunctional Power Quality Monitor
Product code: PQ5000
Model: Linax PQ5000
Brand: Gossen Metrawatt
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
Transparent monitoring of power quality and energy consumption
The LINAX PQ5000 combines the characteristics of a power quality measurement device with functions for comprehensive energy consumption and condition monitoring.
The integrated webserver allows remote access to all measured data and the parameterization of the device. The device provides a wide functionality, which can be extended further by means of optional components.
Functions
- Certified power quality analysis, class A acc. IEC 61000-4-30 Ed. 3
- Standardized data format for power quality data: PQDIF
- Energy consumption analysis, class 0.5S (meters, load profiles, trend analysis)
- EN50160 conformity reports via SmartCollect PM20
- On-site event display (with option TFT display)
- Direct measurement up to 690 V, CAT III
- Condition monitoring
- Limit monitoring with alarming
- Universal process I/O
- Graphical measurement displays (with option TFT display)
- PQ-Easy Report integrated
- Device parameterization via WEB browser
- Firmware update
- Measurement display (http)
- Remote acquisition of measurements via control system (Modbus/TCP)
- Service and maintenance
Product Code: PQ5000
