Matrix MDM-8155A Bench Type Multimeter (5.5 Digit) Product code: MDM-8155A Model: MDM-8155A Brand: Matrix Warranty Time: 2 Yıl REQUEST FOR SUBMISSION
Share:
Save Print

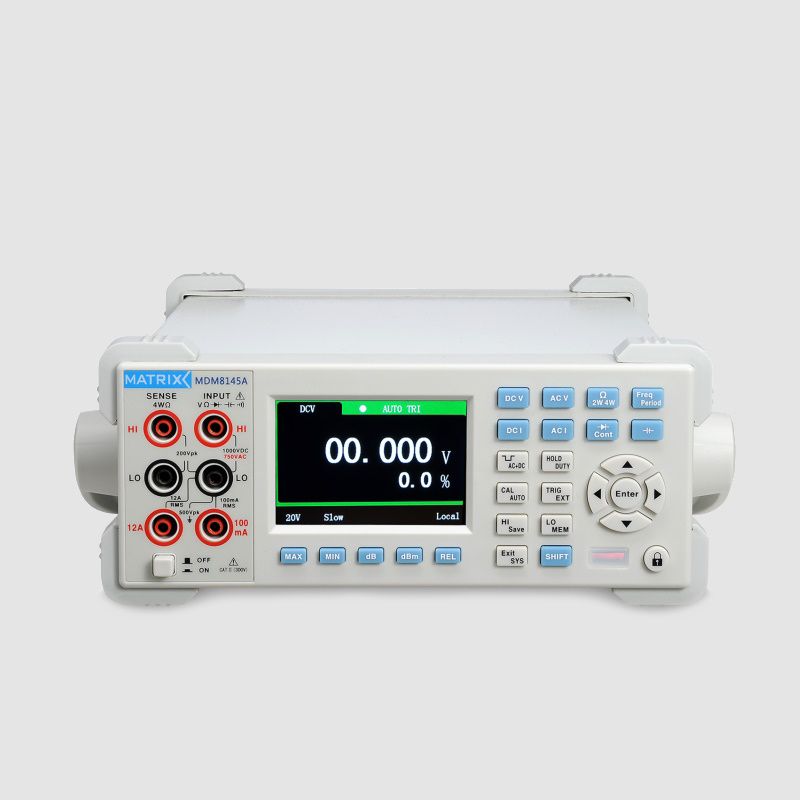

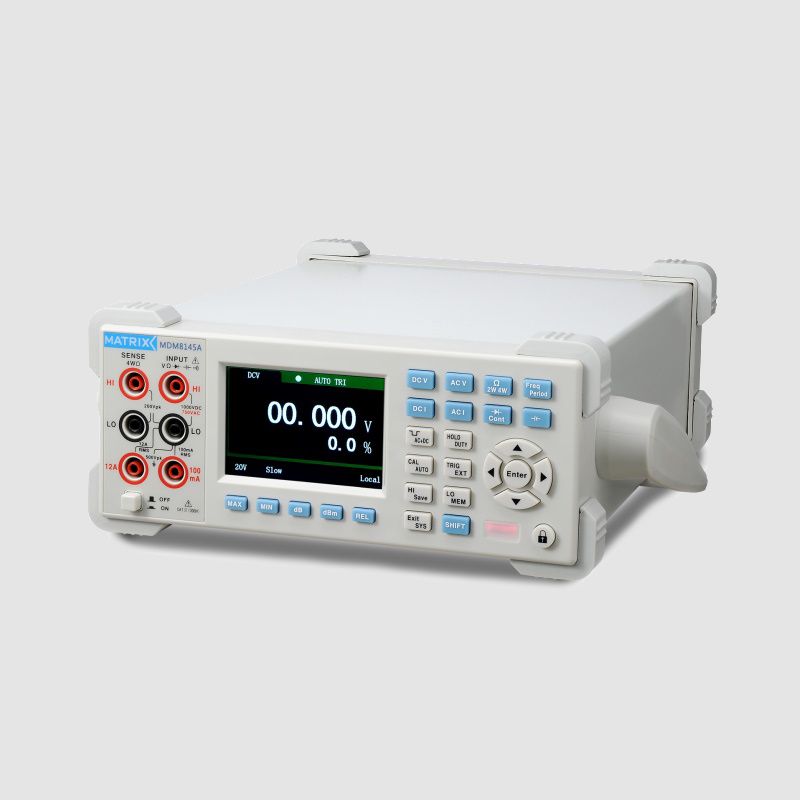

A multimeter provides 5 1/2digits, high-performance AC and DC measurements. The multimeter is equipped with a 3.5-inch color display with high resolution and built-in intelligent operation system, and is able to provide more information and functions, simpler operation, wider testing range and more flexible and convenient system building. It is a new digit multimeter that leads the developing tendency above.

  • Double - parameter display can display two parameters of one input signal.
  • Use 3.5-inch screen with clear reading.
  • Speed of measurement: FAST (6 times/second), MID (4 times/second), SLOW (1 time/second).
  • Has duty ratio measurement function /capacitance measurement.
  • With manual/automatic range setting function.
  • Square wave output function.
  • Supports SCPI protocol and provides program-ming documentation.

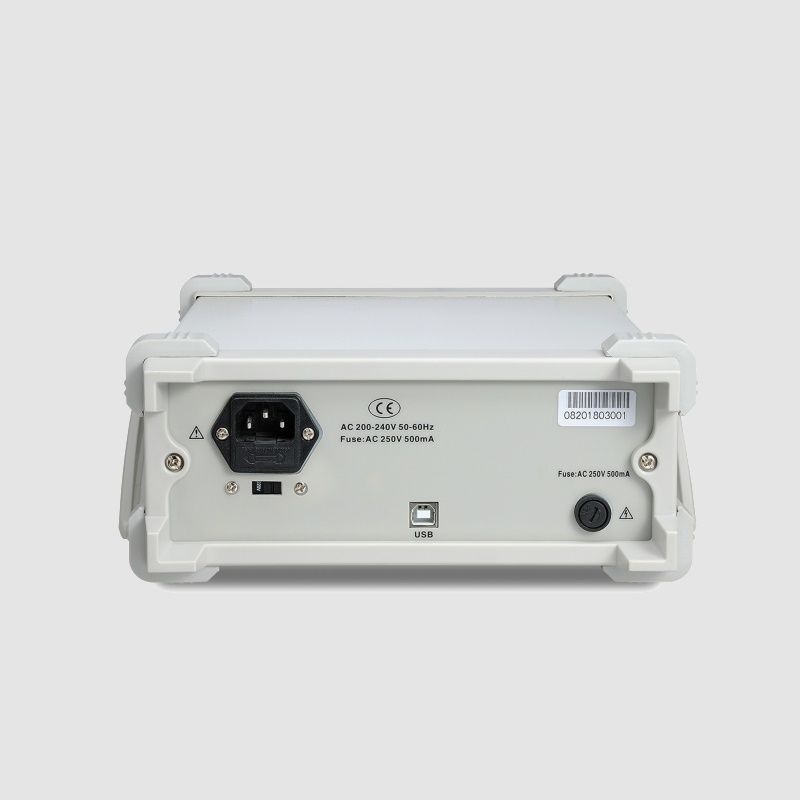

  • Communication interface: USB Device, RS232.
  • Periodic and frequency measurements frequency can reach up to 20MHz.
  • AC DC voltage,AC DC current, two wire/ four-wire resistance measurement.
  • With keyboard lock function, and provide system settings, customized setting of language, buzzer, screen brightness.
  • Provide automatic trigger, external trigger and single trigger.
  • Maximum 10A current and 1000V DC voltage measurement capability.
  • It has simple external calibration function.

Technical Specifications

  • DC Voltage Range: 1uV - 1000V
  • AC Voltage Range: 1uV - 750V
  • DC Current Range: 0.001uA - 10V
  • AC Current Range: 0.001uA - 10V
  • Resistance Range: 0.001Ω - 22MΩ
  • Capacitance Range: 0.001nF - 2.200mF
  • Frequency Range: 0.001Hz - 22MHz
  • Device Weight: 2.6 kg
  • Dimensions: 265 x 105 x 305 mm



Product Code: MDM-8155A

Save Print

Please contact us.

Save Print

Technical Specifications

  • DC Voltage Range: 1uV - 1000V
  • AC Voltage Range: 1uV - 750V
  • DC Current Range: 0.001uA - 10A
  • AC Current Range: 0.001uA - 10A
  • Resistance Range: 0.001Ω - 22MΩ
  • Capacitance Range: 0.001nF - 2.200mF
  • Frequency Range: 0.001Hz - 22MHz
  • Device Weight: 2.6 kg
  • Dimensions: 265 x 105 x 305 mm
for more info please look the file section.
Downloadable Files Matrix MDM-8155A - Datasheet (671 kB)
