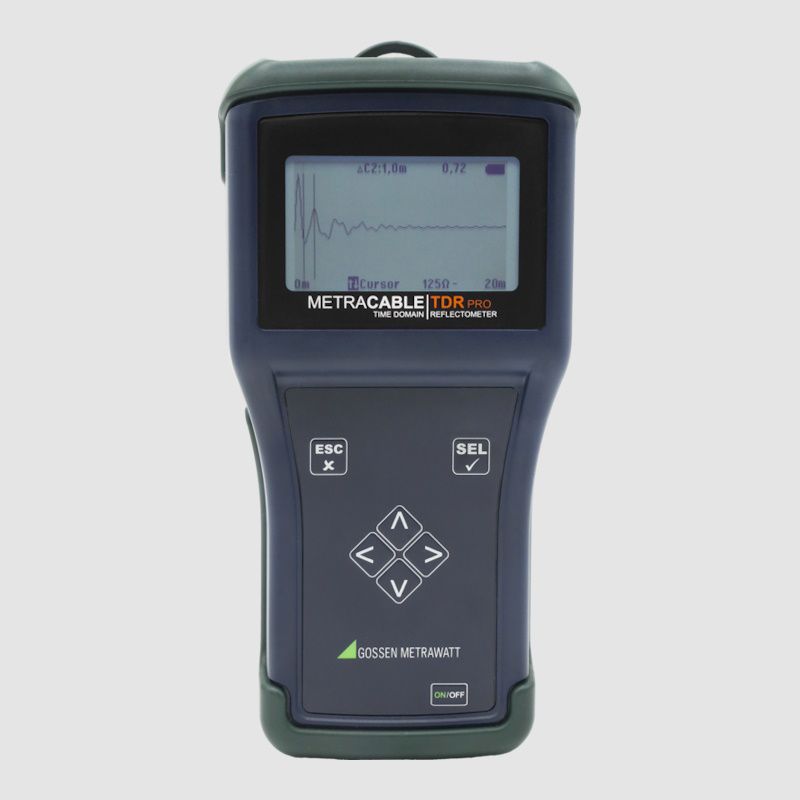

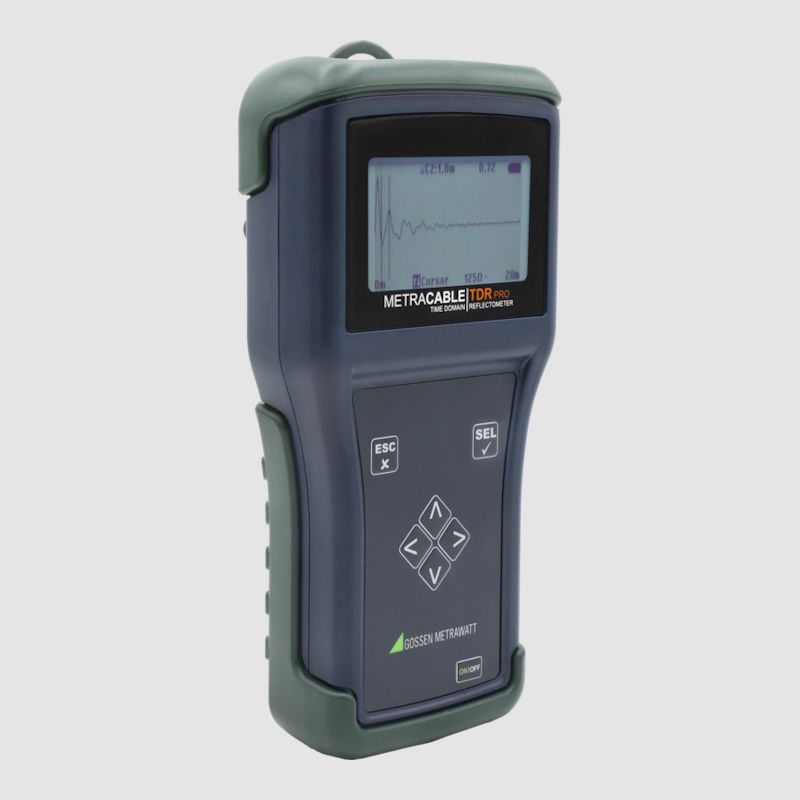

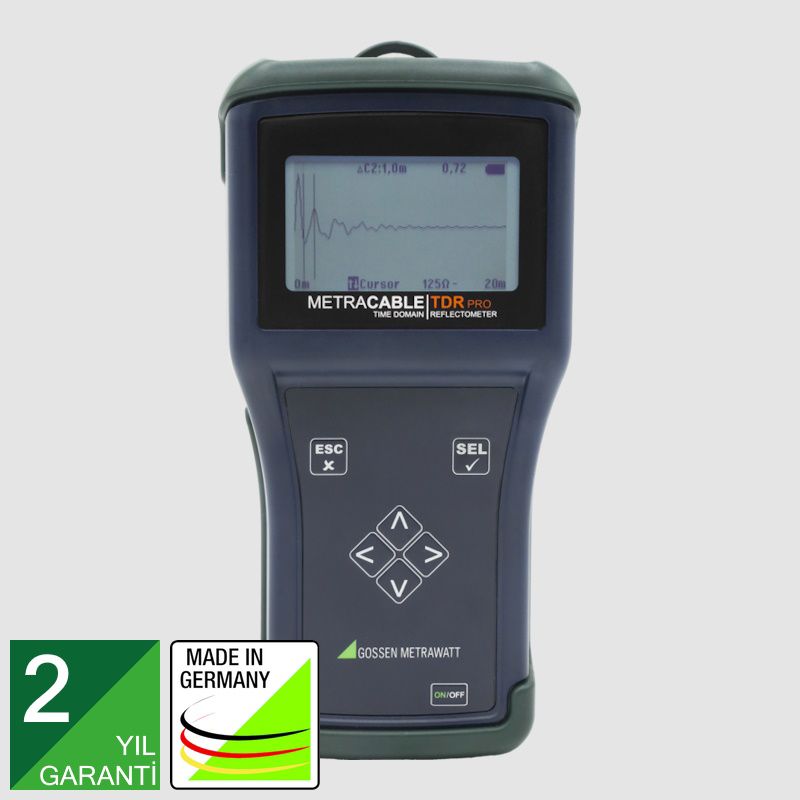

Metracable TDR Pro Time Domain Reflectometer

The Metracable TDR Pro is a compact handheld instrument for pinpointing cable defects and measuring cable length.

The Metracable TDR Pro is ideally suited for pinpointing and classifying cable defects for all types of symmetrical cable without service: twisted-pair cables, 2-core telecommunication subscriber lines, coaxial and electric cables.

Product Highlights

• AUTO mode for immediate use
• All types of symmetrical electric cable
• Cable lengths of up to 14 km
• Resolution down to 0.3 m
• Backlit graphic display
• Freeze function
• Editable cable database
• Bluetooth interface
• Metracable Manager software

Your advantages

• Cable length measurement
• Detection of various cable defects by means of impulse response signature: open cable end, short-circuit, splice, tap, split/re-split, water ingress, poor contact etc.
• Distance to cable defect with 0.3 m resolution
• Easy teach-in and saving of cable parameters with the help of a reference cable

Applications

• Cable testing
• Cable length measurement
• Pinpointing of cable defects

Delivery

• 1 Metracable TDR Pro
• 1 pair of measurement cables with test probes
• 1 pair of plug-on alligator clips
• 1 BNC adapter
• 4 batteries

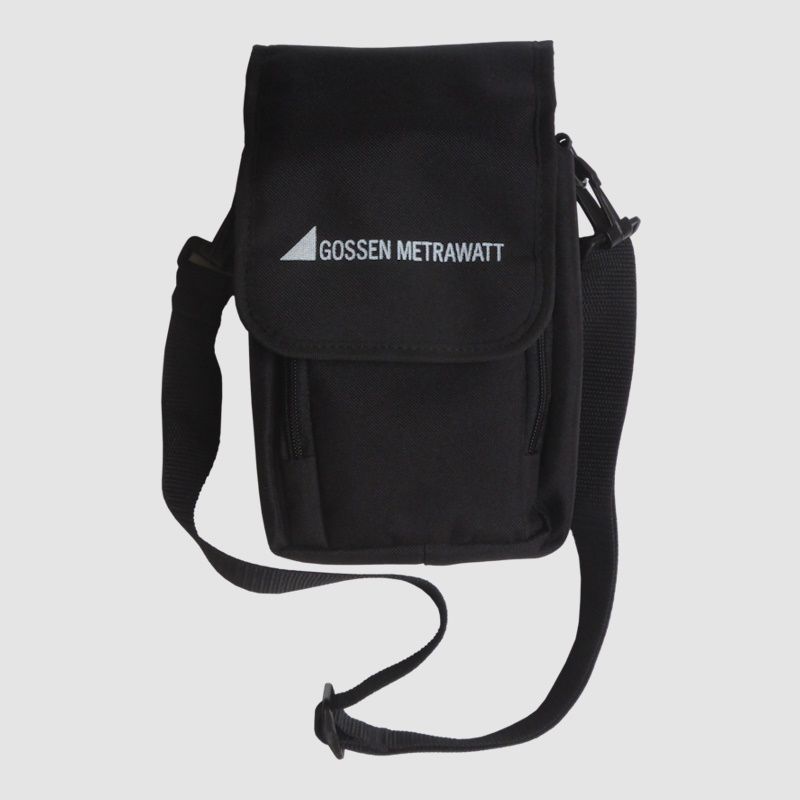

• 1 ever-ready case
• 1 set of operating instructions

Product Code: M281A
