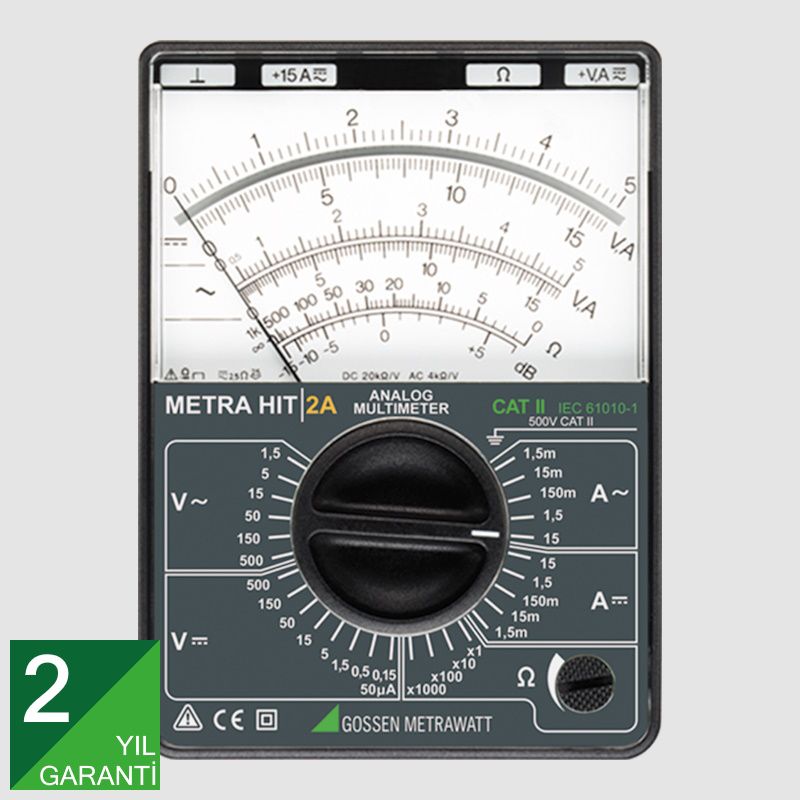

Metrahit 2A Analog Multimeter
Product code: M101A
Model: Metrahit 2A
Brand: Gossen Metrawatt
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
Analog Multimeter for Electrical Applications Kl. 2.5
Class 2.5, compact time-tested design
Technical characteristics
- Voltage measurement: 0 - 500 V DC and AC
- Input resistance: 20 kOhm / V DC, 4 kOhm / V AC
- Current measurement: 0 - 15 A DC and AC
- Resistance measurement: 1 Ohm .. 1 MOhm (4 ranges)
- Level: -15 .. +56 dB (6 ranges)
- Accuracy: class 2.5
- Dimensions: 92 x 126 x 45 mm
- Weight: approx. 0.25 kg without battery
- Battery: 1.5 V IEC LR 6 (AA Mignon)
Product Code: M101A
Save
Print
Technical characteristics
- Voltage measurement: 0 - 500 V DC and AC
- Input resistance: 20 kOhm / V DC, 4 kOhm / V AC
- Current measurement: 0 - 15 A DC and AC
- Resistance measurement: 1 Ohm .. 1 MOhm (4 ranges)
- Level: -15 .. +56 dB (6 ranges)
- Accuracy: class 2.5
- Dimensions: 92 x 126 x 45 mm
- Weight: approx. 0.25 kg without battery
- Battery: 1.5 V IEC LR 6 (AA Mignon)
Please look the file section for more technical info.
Downloadable Files
Metrahit 2A - Datasheet (300 kB)
