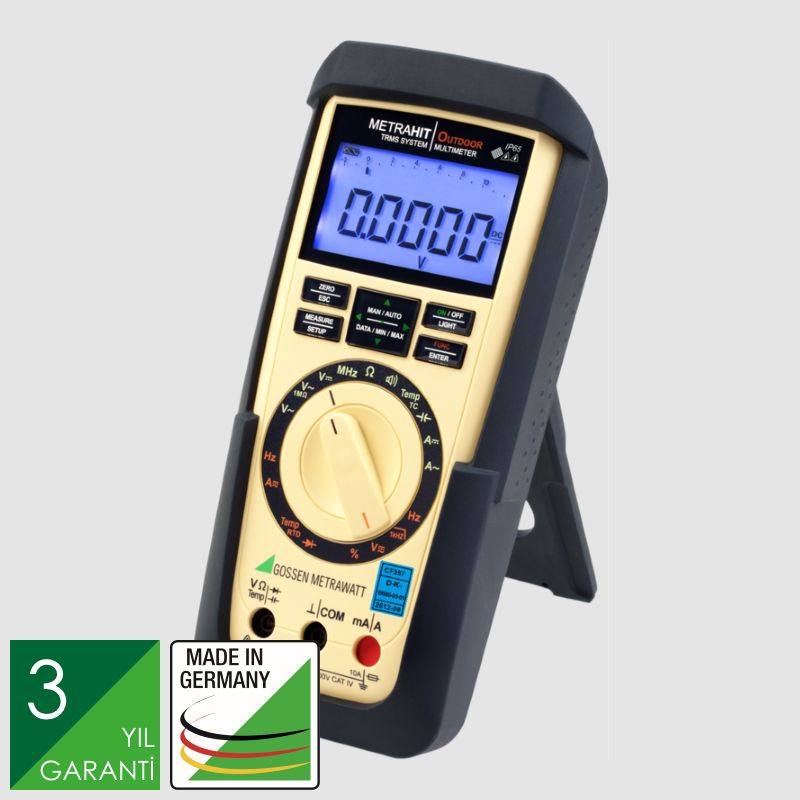

MetraHit Outdoor Digital Multimeter
MetraHit Outdoor Digital Multimeter Product code: M240O Model: MetraHit Outdoor Brand: Gossen Metrawatt Warranty Time: 3 Yıl REQUEST FOR SUBMISSION
Share:
Save Print

TRMS SYSTEM Multimeter, Extremely Rugged, Impact-Resistant, Water-Proof and Dust-Proof, and is Resistant to Extreme Temperatures



The OUTDOOR multimeter has been specially designed and manufactured to meet the challenges faced by engineers and technicians in adverse environments. It´s extremely rugged, impact-resistant, water-proof and dust-proof, and is resistant to extreme temperatures.



Technology and scope of functions are the same as with the METRAHIt X-TRA.

Resolution: ± 12,000 digits, 4½-place
3 connector jacks with patented automatic blocking sockets (ABS)
TRMS AC and AC / DC function
Voltage measurement with a basic accuracy­ of ±0.05% (V DC)
Automatic and manual measuring range selection
Automatic storage of measured values: DATA / MIN / MAX
Large, light-blue illuminated display with extra-large characters (15 mm) and an analog bar graph for dynamic processes
Separate battery and fuse compartments
IP 52 protection against dust and water
Measuring categories: 1000 V CAT III and 600 V CAT IV
Made in Germany
DAkkS calibration certificate included

23 multimeter functions
Voltage ACTRMS, voltage AC+DC TRMS,voltage DC, frequency (Hz, MHz), duty cycle, resistance, diode test, continuity test, capacitance, current ACTRMS, current AC+DC TRMS, temperature with Pt 100/1000 sensors and type K thermocouples
Auto-range current measurement from 100 μA (resolution: 10 nA) to10 A (16 A) via a single connector jack and a single fuse
Additional filter function and voltage measurement with reduced input­ impedance for limiting interference, e.g. for measurements at frequency­ converters
540 kB data memory (15,400 measured values) for long-term measurements with data logger function
Power pack connector socket for operation without batteries
Infrared interface for communication with the PC
Rubber holster safeguards against shocks and impacts

Specific features of the OUTDOOR multimeter:

Special rugged design with shock and impact resistant housing, and additional rubber holster
Special "sand" color
Dust-proof: IP 6x
Water jets: IP x5
Patented, sealed blocking sockets







   Product Code: M2400
