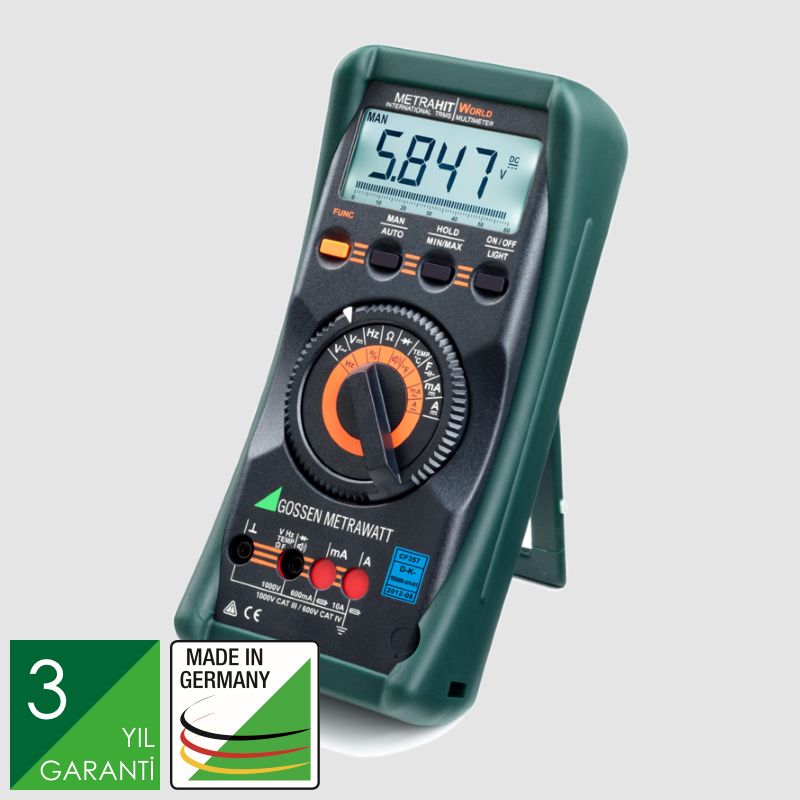

TRMS Digital Multimeter with Analog Bar Graph, Temperature Measurement and Infrared Interface
The autoranging multimeter for use in all areas of electrical engineering, in particular for international use.
The METRAHIT WORLD provides you with all of the measuring functions you'd expect from a versatile, world class multimeter: convincing technology with all voltage, resistance, current and temperature measuring ranges, and lots of other measuring functions and automatic features such as frequency and duty cycle measurement.
Resolution: 6000 digits (3 6/7 place) and analog bar graph (60 points)
Basic accuracy: 0.5% VDC
Bandwidth, V AC TRMS: 2 kHz
Patented automatic blocking sockets (ABS)
Voltage: VDC 100 μ to 1000 V and VAC TRMS 100 μ to 1000 V
Current: IDC 10 μ to 10 A (16 A 30 sec.) and IAC TRMS 10 μ to 10 A (16 A 30 sec.)
Resistance: 100 mOhm to 40 MOhm
Temperature: -50.0 to +800.0° C, type K thermocouple
Frequency measurement: 0.1 Hz to 1 MHz
Duty cycle measurement: 2% to 98% (1 kHz)
RPM measurement: 60 RPM to 99.99 thousand RPM
Capacitance measurement: 10 pF to 400 μF
Continuity and diode testing: 3 V
Min-Max measured value storage and DATA hold
DAkkS calibration certificate included as standard feature
Measuring category: 600 V CAT IV, 1000 V CAT III
Product Code: M206A
