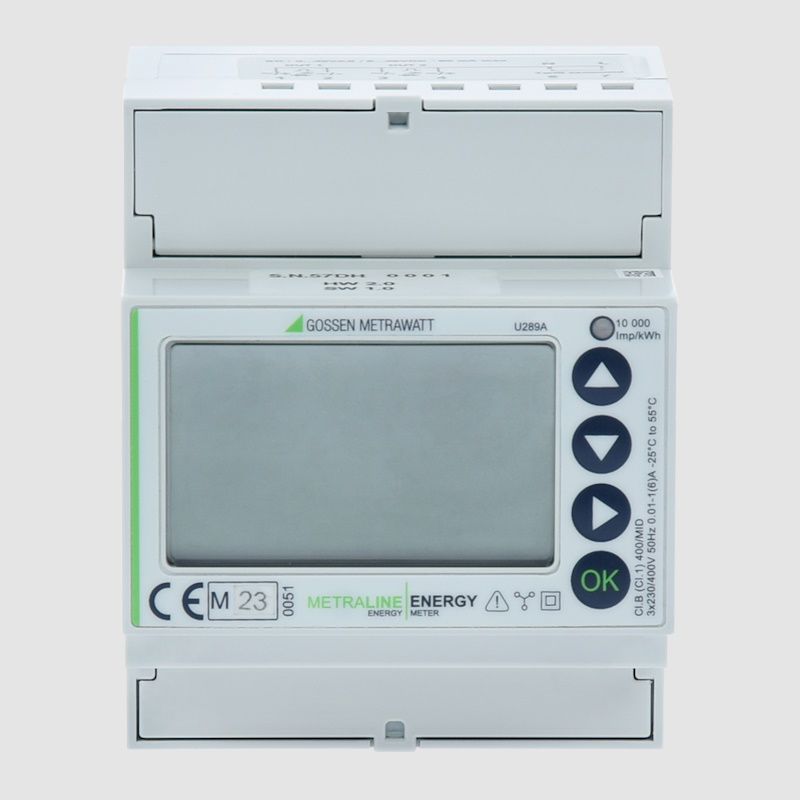

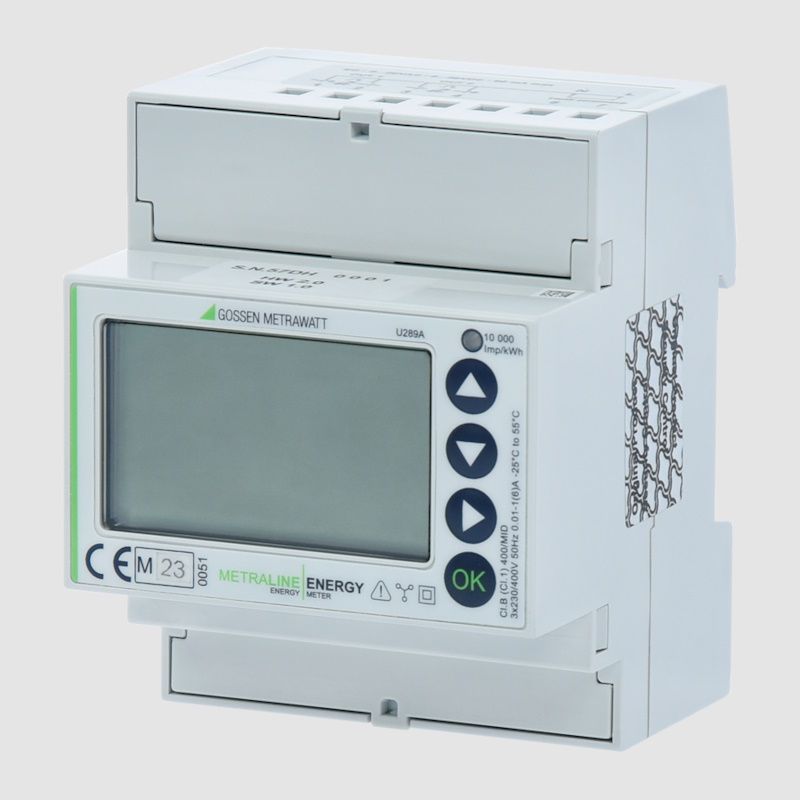

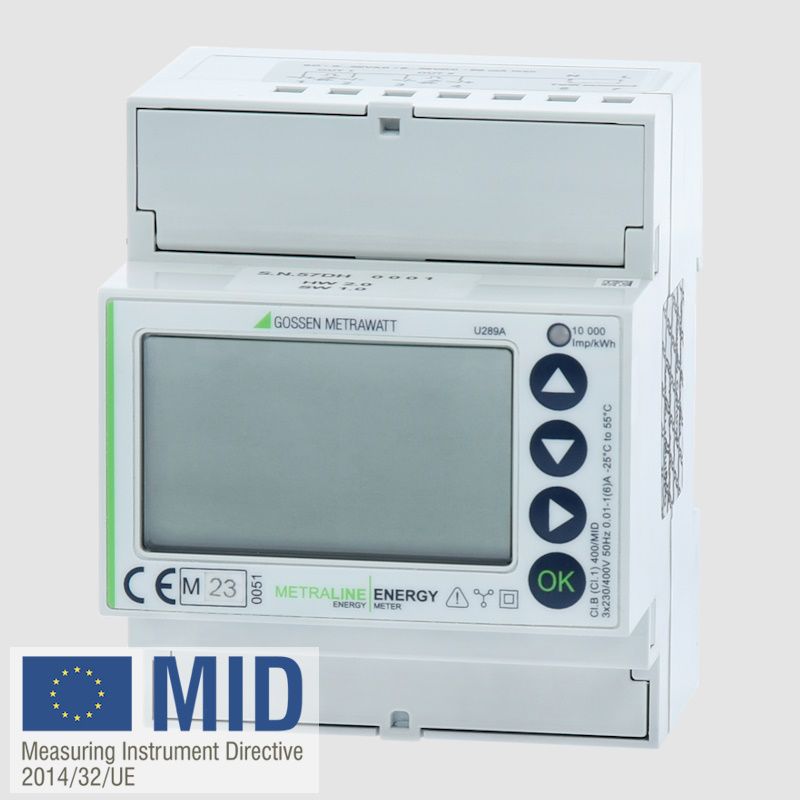

Digital 3-Phase Active Energy Meter for 4-Wire Systems, 400 V with Connection via Current Transformer, 1(5) and 5(6) A
3-phase active energy meters from the METRALINE Energy product range are MID-certified and offer a space-saving design at a low price.
Metraline Energy series active energy meters facilitate energy data acquisition for a broad range of applications. Thanks to integrated, expandable interfaces and an extremely compact design, these MID-certified energy meters are the ideal solution where space is at a premium – and they’re cost-effective and feature Gossen Metrawatt’s usual top quality.
Product Highlights
- MID-certified active energy meter for 4-wire systems, 400 V with transformer connection, 1(5) and 5(6) A
- A4-quadrant measurement: energy import and export
- Ultra-compact design (4 standard width units, i.e. 72 mm) with integrated interface, choice:
S0 pulse output (Article number: U289D)
Modbus RTU Ø (Article number: U289E)
M-Bus (Article number: U289F) - Expandable communication via IR interface
Your advantages
- Cost-Effective
Compact design including MID approval at an attractive price - Simple & Fast
Easy installation and integration into existing systems thanks to integrated interfaces
Parallel interface possible with communication modules
Applications
The MID-certified energy meter can be used to acquire and bill active energy in industrial, household, commercial, building management and other applications. Energy data can be transmitted to higher-level systems via the integrated interfaces and are available for billing, energy management and energy controlling.
- Industrial energy logging for individual production lines or machines
- Measurement of renewable energy from photovoltaic systems and wind power turbines
- Logging and billing of energy consumption at campsites, shopping centers, housing developments and wharfs
- Energy logging for hotels, convention centers and trade fair facilities
- Internal cost distribution for timesharing-condos and subleased industrial buildings
- Consumption billing for business centers
- Setup of energy logging systems
- Long distance transmission of consumption values and billing
- Use in wall boxes and charging stations (e-mobility)
- Use in active energy management as well as private home solutions
Technical characteristics
- Variant for 4-wire systems, 400 V
- Transformer Connection, 1(6) and 5(6) A
- Housing per DIN 43880: 4 standard width units (72 mm) with integrated interface
- Accuracy class B for active energy per EN 50470-3 for industrial and commercial use, as well as for household use with highly demanding requirements
- Suitable for billing purposes thanks to MID approval
- 4-quadrant measurement: energy import and export
- Integrated interfaces, choice of S0 pulse output, M-Bus or Modbus RTU and expandable via IR communication modules
- Manipulation is ruled out thanks to tamper-proof cover
Product Codes:
Digital 3-phase energy meter with transformer connection, 1(6) and 5(6) A
U289A - 4-wire system, 3 x 230/400 V, two S0 pulse outputs
U289B - 4-wire system, 3 x 230/400 V, Modbus RTU
U289C - 4-wire system, 3 x 230/400 V, M-Bus
Technical characteristics
- Variant for 4-wire systems, 400 V
- Transformer Connection, 1(6) and 5(6) A
- Housing per DIN 43880: 4 standard width units (72 mm) with integrated interface
- Accuracy class B for active energy per EN 50470-3 for industrial and commercial use, as well as for household use with highly demanding requirements
- Suitable for billing purposes thanks to MID approval
- 4-quadrant measurement: energy import and export
- Integrated interfaces, choice of S0 pulse output, M-Bus or Modbus RTU and expandable via IR communication modules
- Manipulation is ruled out thanks to tamper-proof cover
