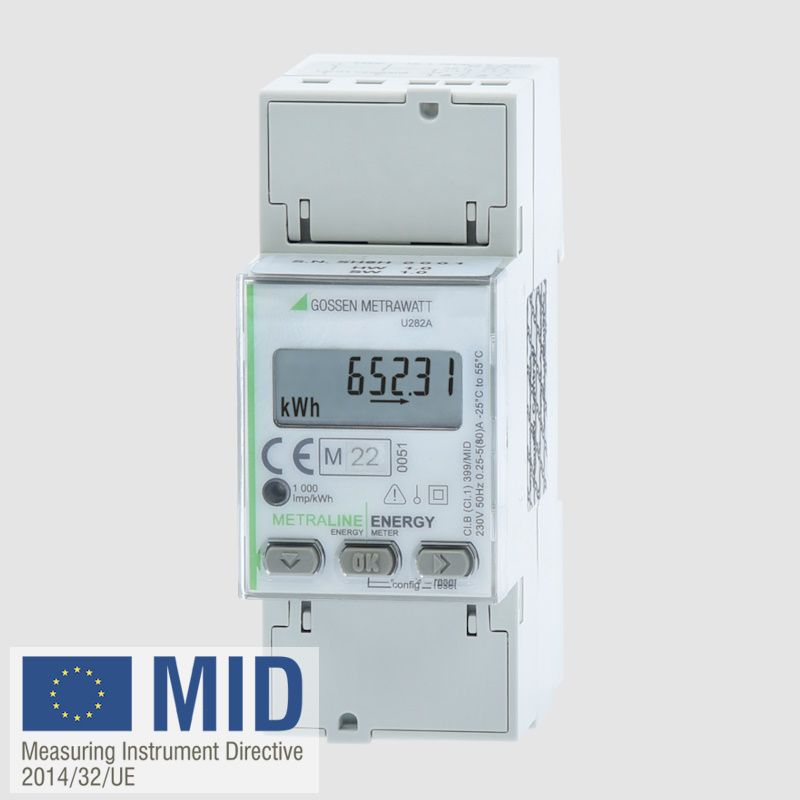

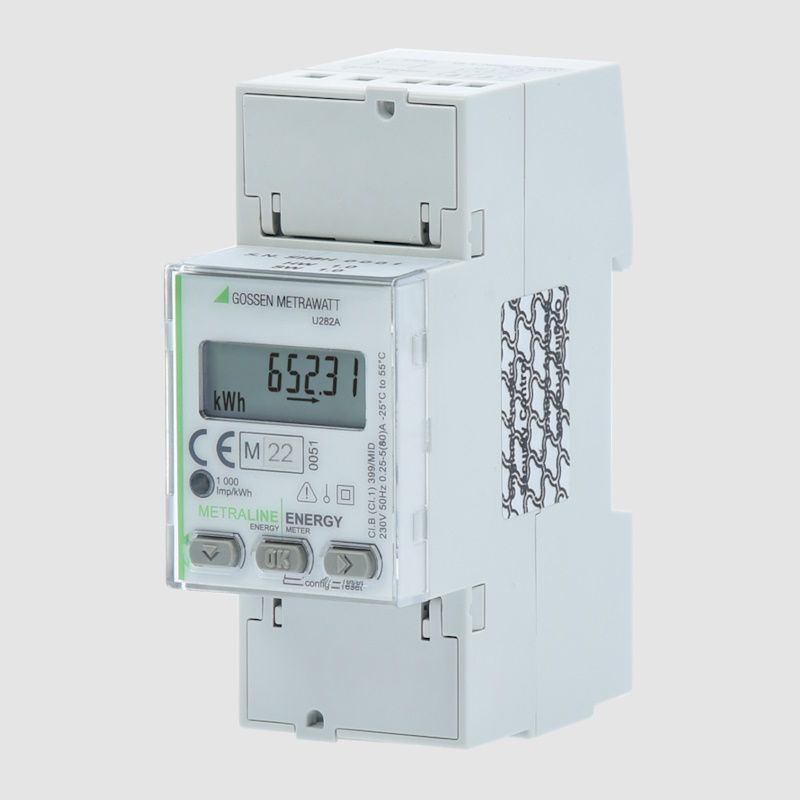

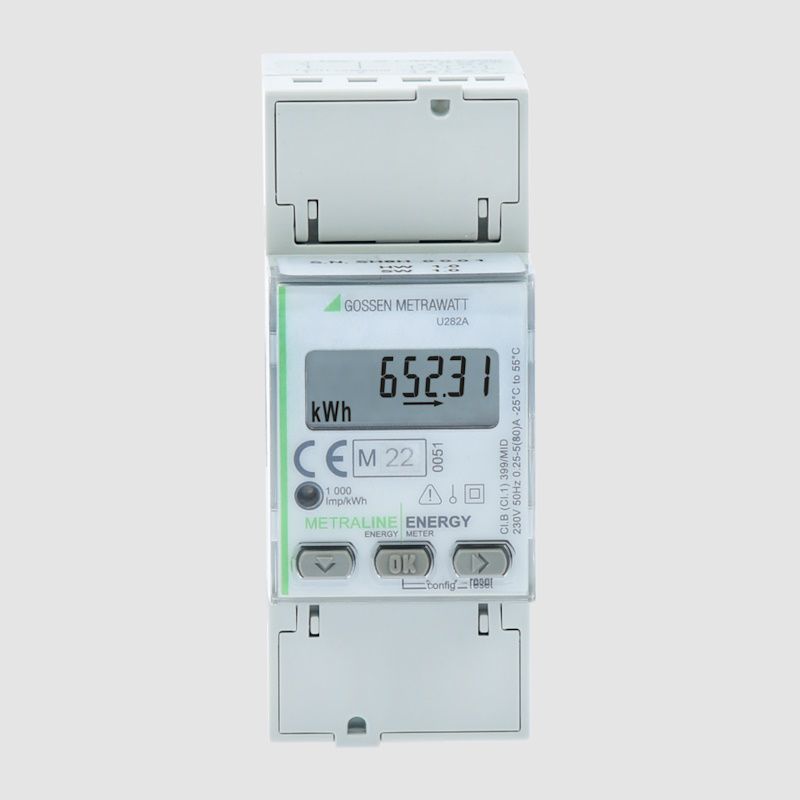

Digital Single-Phase Active Energy Meter for 2-Wire Systems, 230 V with Direct Connection, 5(80) A
Single-phase active energy meters from the METRALINE Energy product range are MID-certified and offer a space-saving design at a low price.
Metraline Energy series active energy meters facilitate energy data acquisition for a broad range of applications. Thanks to integrated, expandable interfaces and an extremely compact design, these MID-certified energy meters are the ideal solution where space is at a premium – and they’re cost-effective and feature Gossen Metrawatt’s usual top quality.
Product Highlights
- MID-certified active energy meter for 2-wire systems, 230 V with direct connection, 5 (80)
- A4-quadrant measurement: energy import and export
- Ultra-compact design (2 standard width units, i.e. 36 mm) with integrated interface, choice:
S0 pulse output (Article number: U282A)
Modbus RTU Ø (Article number: U282B)
M-Bus (Article number: U282C) - Expandable communication via IR interface
Your advantages
- Cost-Effective
Compact design including MID approval at an attractive price - Simple & Fast
Easy installation and integration into existing systems thanks to integrated interfaces
Parallel interface possible with communication modules
Applications
The MID-certified energy meter can be used to acquire and bill active energy in industrial, household, commercial, building management and other applications. Energy data can be transmitted to higher-level systems via the integrated interfaces and are available for billing, energy management and energy controlling.
- Industrial energy logging for individual production lines or machines
- Measurement of renewable energy from photovoltaic systems and wind power turbines
- Logging and billing of energy consumption at campsites, shopping centers, housing developments and wharfs
- Energy logging for hotels, convention centers and trade fair facilities
- Internal cost distribution for timesharing-condos and subleased industrial buildings
- Consumption billing for business centers
- Setup of energy logging systems
- Long distance transmission of consumption values and billing
- Use in wall boxes and charging stations (e-mobility)
- Use in active energy management as well as private home solutions
Technical characteristics
- Variant for 2-wire systems, 230 V
- Direct Connection, 5(80) A
- Housing per DIN 43880: 2 standard width units (36 mm) with integrated interface
- Accuracy class B for active energy per EN 50470-3 for industrial and commercial use, as well as for household use with highly demanding requirements
- Suitable for billing purposes thanks to MID approval
- 4-quadrant measurement: energy import and export
- Integrated interfaces, choice of S0 pulse output, M-Bus or Modbus RTU and expandable via IR communication modules
- Manipulation is ruled out thanks to tamper-proof cover
Product Codes:
Digital Single-phase energy meter with direct connection, 5 (80) A
U282A - 2-wire system, 230 V, two S0 pulse outputs
U282B - 2-wire system, 230 V, Modbus RTU
U282C - 2-wire system, 230 V, M-Bus
Technical characteristics
- Variant for 2-wire systems, 230 V
- Direct Connection, 5(80) A
- Housing per DIN 43880: 2 standard width units (36 mm) with integrated interface
- Accuracy class B for active energy per EN 50470-3 for industrial and commercial use, as well as for household use with highly demanding requirements
- Suitable for billing purposes thanks to MID approval
- 4-quadrant measurement: energy import and export
- Integrated interfaces, choice of S0 pulse output, M-Bus or Modbus RTU and expandable via IR communication modules
- Manipulation is ruled out thanks to tamper-proof cover
