Installation tester for standards-compliant testing in electrical systems and installations in accordance with IEC 60364-6 (DIN VDE 0100-600), DIN EN 50110-1 (DIN VDE 0105-100), IEC 61851-1 (DIN VDE 0122-1) and the corresponding sections of EN 61557 (VDE 0413).

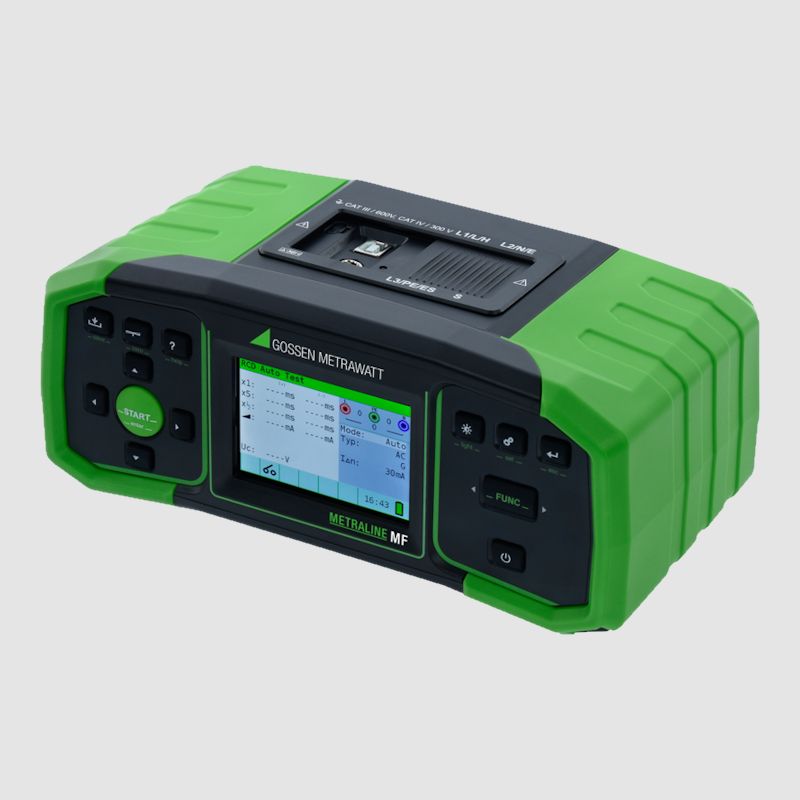

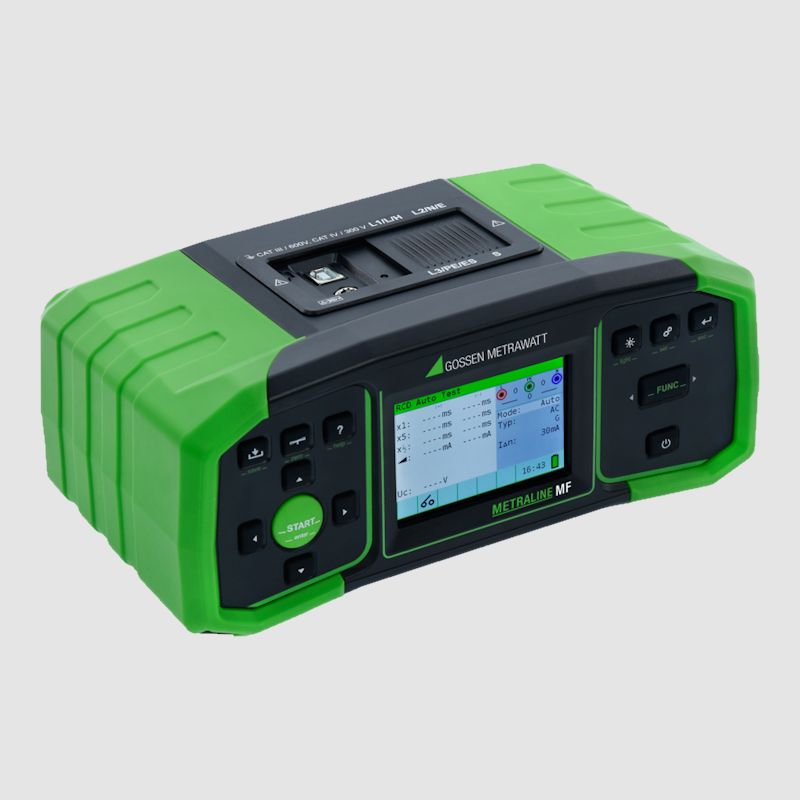

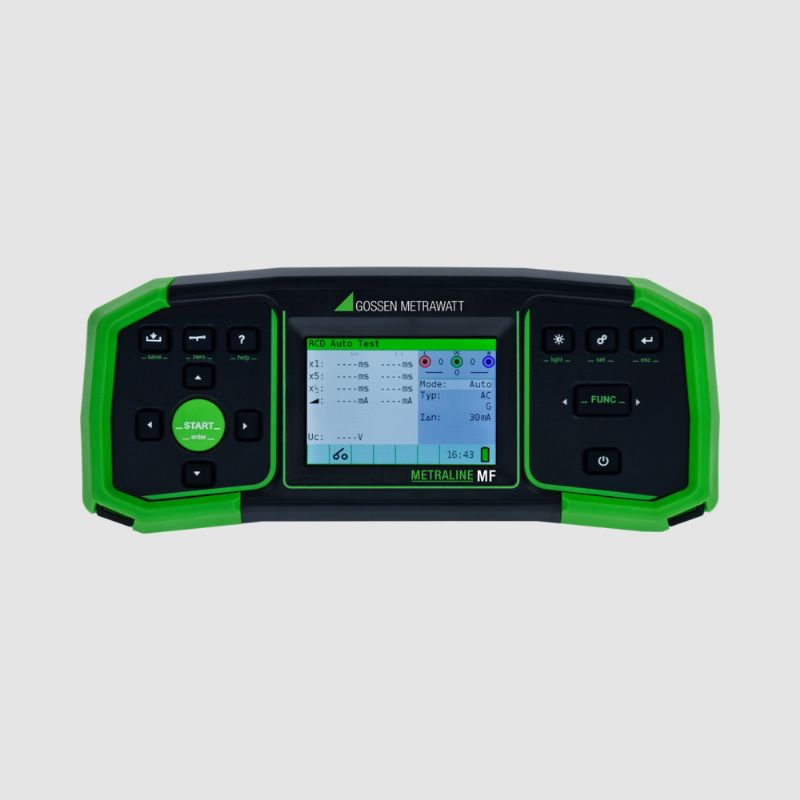

The METRALINE MF is equipped with a color display and intuitive user prompting for easy operation. The modern scope of functions includes all tests required for electrical installations, e-mobility and earthing measurements. Convenient operation is supported by help diagrams and acoustic signals. The compact format makes the device ideal for mobile use. User-friendly data management makes it possible to store up to 1000 measured values and document test results. The device is certified in accordance with IP 40 and CAT III 600 V / CAT IV 300 V.
Product Highlights
- Color graphic display • Intuitive operation
- USB interface for updates and evaluation
- Large memory for up to 1000 measurements
Your advantages
- Modern scope of functions
- Optimized value for the money
- Easy handling thanks to help function and acoustic signals
- From testing to results in just a few clicks
Technical characteristics
- Loop and line impedance measurement with RCD
- Low-impedance measurement with 200 mA, automatic polarity reversal
- Earthing measurement, 3-pole, 4-pole and Wenner (optional with E-Set Basic)
- Insulation resistance measurement up to 1000 V, adjustable
- Testing of RCD/FI for types A, AC, B, B+, F and auto-sequence
- Testing of RDC-DD with 6 mA DC for e-charging points
- Voltage measurement (TRMS), phase sequence and frequency
- Help diagrams for each measuring function and acoustic signals during measurement
- Data management, storage of 1000 measured values
- METRAreport software for documentation
- USB interface, IP 40, CAT III 600 V / CAT IV 300 V
Delivery
- 1x Metraline MF (M520F)
- 3x measurement cables, 1 m ea.
- 3x test probes
- 3x alligator clips
- 1x measurement cable with earthing contact plug
- 1x measurement cable with test button for triggering measurements
- USB cable
- Rechargeable batteries
- Power pack
- Carrying pouch
- Condensed operating instructions
Product Code: M520F
