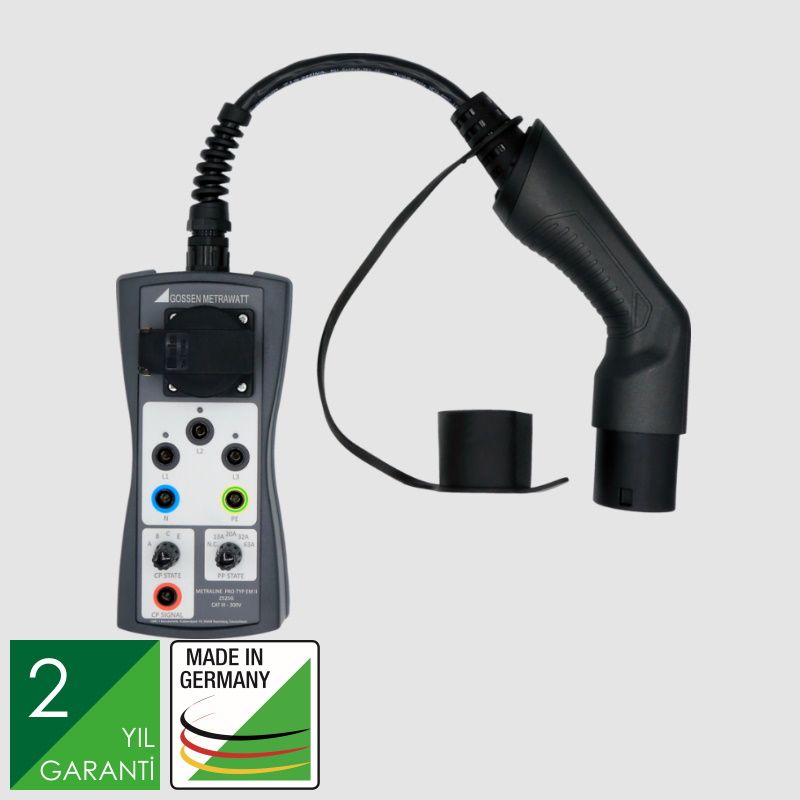

Single and 3-phase test adapter with type 2 plug for testing the effectiveness of protective measures at electric charging points with the Profitest Master, simulation of fictitiously connected electric vehicles and current-carrying capacity per IEC 61851-1. Extended CP test pin for testing charging points with permanently attached charging cable.
- Vehicle simulation (CP)
Vehicle states A through E are selected with a rotary switch. - Cable simulation (PP)
The various codings for charging cables with 13, 20, 32 and 63 A, as well as "no cable connected", can be simulated with the help of a rotary switch. - Fault simulation
Simulation of a short-circuit between CP and PE by means of a rotary switch - Indication of phase voltages via LEDs
Depending on the charging station, either one or three phases can be active. - Testing of electric charging stations with permanently attached charging cable by means of an extended CP test pin
Regarding vehicle simulation (CP)
States A, B, C and E can be simulated in accordance with IEC 61851. The various vehicle states are selected by means of a rotary switch.
- State A - no vehicle connected
- State B - vehicle connected but not ready for charging
- State C - vehicle connected and ready for charging, venting of the charging area not required
- State E - error: Short circuit between CP and PE via internal diode
Regarding cable simulation (PP)
The various codings for charging cables with 13, 20, 32 and 63 A can be simulated. It's also possible to simulate the "no cable" state.
The various charging cables are simulated by connecting different resistances between PP and PE with the help of a rotary switch. The following values are possible in accordance with IEC 61851:
- No cable - 0 Ω
- 13 A cable - 1.5 kΩ
- 20 A cable - 680 Ω
- 32 A cable - 220 Ω
- 63 A cable - 100 Ω
1x METRALINE PRO-TYP EM II test adapter
1x set of operating instructions
Product Code: Z525G
