2-pole voltage tester for standards-compliant testing in accordance with EN 61324-3 within a range of 12 to 1000 V AC / 12 to 1500 V DC, equipped with LCD panel

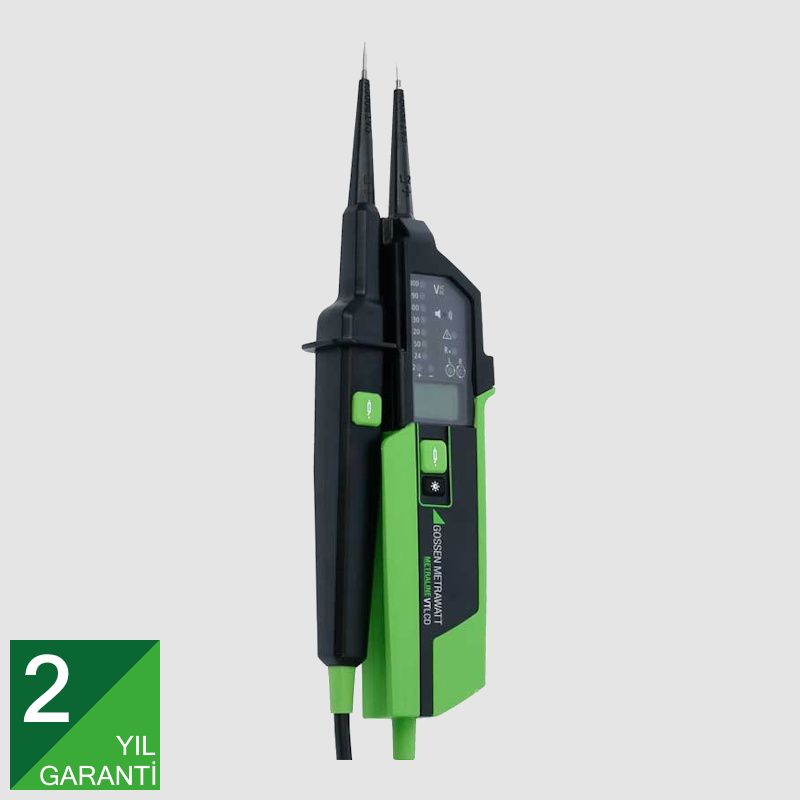

The Metraline VT LCD two-pole voltage tester is distinguished by its rugged design and backlit LCD for easy reading under all possible conditions. With an integrated automatic mode for voltage and continuity testing, as well as the ability to quickly and easily perform RCD tripping tests for 30 mA via two pushbuttons, the instrument offers an ideal combination of user-friendliness and functionality. The Metraline VT LCD is also equipped with a comprehensive range of functions including voltage testing, continuity testing, diode testing and polarity testing. With certification in accordance with CAT III 1000 VAC / 1500 V DC CAT 0IV 600 V, the instrument boasts excellent safety standards and is thus an indispensable tool for any electrical technician.
Product Highlights
- LCD panel with background illumination
- Standards-compliant voltage testing in accordance with EN 61324-3
- Automatic mode for voltage/continuity
Your Advantages
- Simple operation, adapted perfectly to the way you work.
- Safe, convenient voltage testing is guaranteed!
- Convincing value for the money.
Technical Characteristics
- 12 … 1000 V AC / 12 … 1500 V DC
- LED display for defined voltage ranges
- Frequency range: 16.7 to 950 Hz
- Polarity display
- LCD panel with background illumination
- Automatic mode for voltage/continuity
- RCD tripping test for 30 mA via two pushbuttons
- Frequency measurement
- Continuity testing, resistance measurement
- Single-pole phase test, phase sequence display
- Diode test, NCV
- Flashlight, vibration in case of voltage
- Measuring category CAT III 1000 VAC/1500 VDC CAT IV 600 V
- IP 64, GS 38 test probe cap and screw-on test probe extension
Product Code: M611H
Technical Characteristics
- 12 … 1000 V AC / 12 … 1500 V DC
- LED display for defined voltage ranges
- Frequency range: 16.7 to 950 Hz
- Polarity display
- LCD panel with background illumination
- Automatic mode for voltage/continuity
- RCD tripping test for 30 mA via two pushbuttons
- Frequency measurement
- Continuity testing, resistance measurement
- Single-pole phase test, phase sequence display
- Diode test, NCV
- Flashlight, vibration in case of voltage
- Measuring category CAT III 1000 VAC/1500 VDC CAT IV 600 V
- IP 64, GS 38 test probe cap and screw-on test probe extension
Please look the file section for more technical info.
