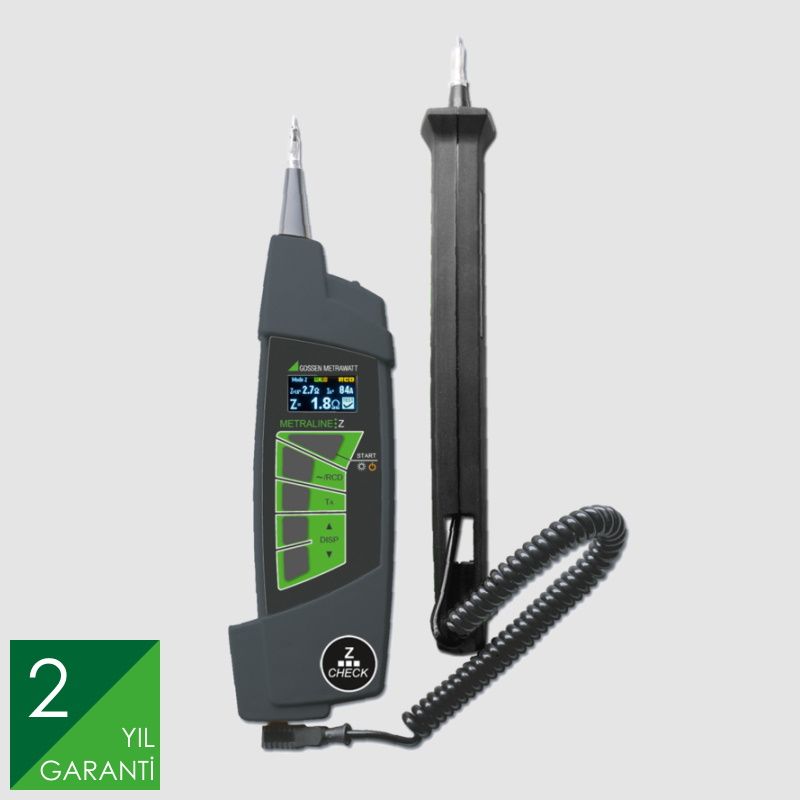

Metraline ZCheck Loop Resistance Tester
Product code: M507A
Model: Metraline ZCheck
Brand: Gossen Metrawatt
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
The test instrument is used to measure earth-fault loop impedances and line impedances.
Product Highlights
- Table of common protective devices can be displayed
- Digital display, backlit color OLED display, switching between brief and detailed representation
- LED for measurement point illumination
- Patented test probe retainer
- Compact and rugged - for service calls under harsh conditions and laboratory use
Technical characteristics
The measuring range of 0 to 200 Ω (0.27 Ω to 200 Ω per VDE 0413 / EN 61557) permits calculation of short-circuit current from 0 to 23 kA.
The following measurements can be performed with the METRALINE Z-CHECK:
The measuring range of 0 to 200 Ω (0.27 Ω to 200 Ω per VDE 0413 / EN 61557) permits calculation of short-circuit current from 0 to 23 kA.
The following measurements can be performed with the METRALINE Z-CHECK:
- Fault loop impedance with short-circuit current
- Fault loop impedance with short-circuit current without tripping the RCCB
- Line impedance with short-circuit current
- Line voltage - Phase detection
Product Code: M507A
Downloadable Files
Metraline ZCheck - Datasheet (191 kB)
