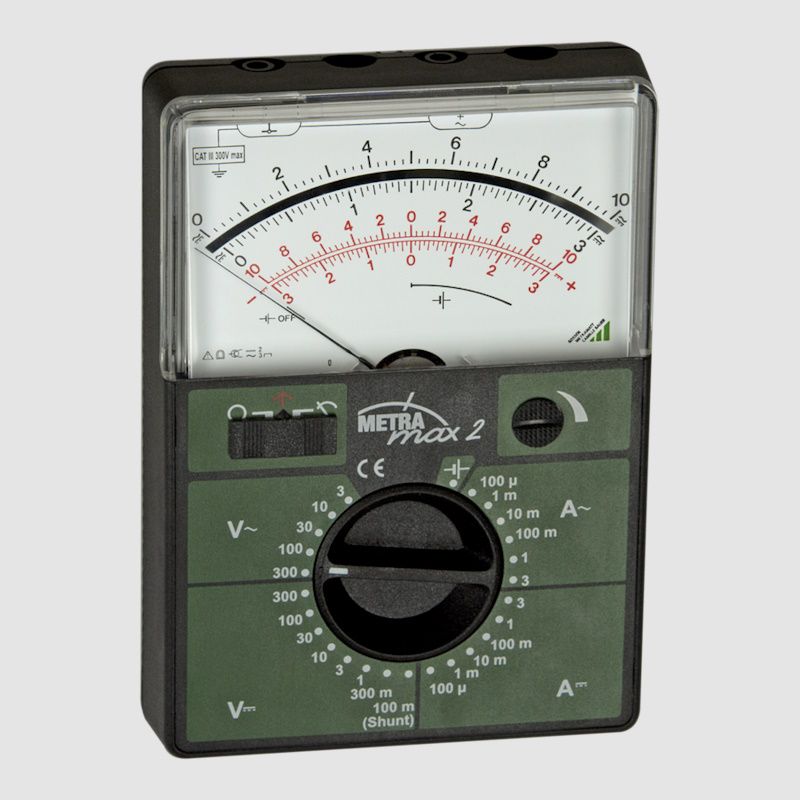

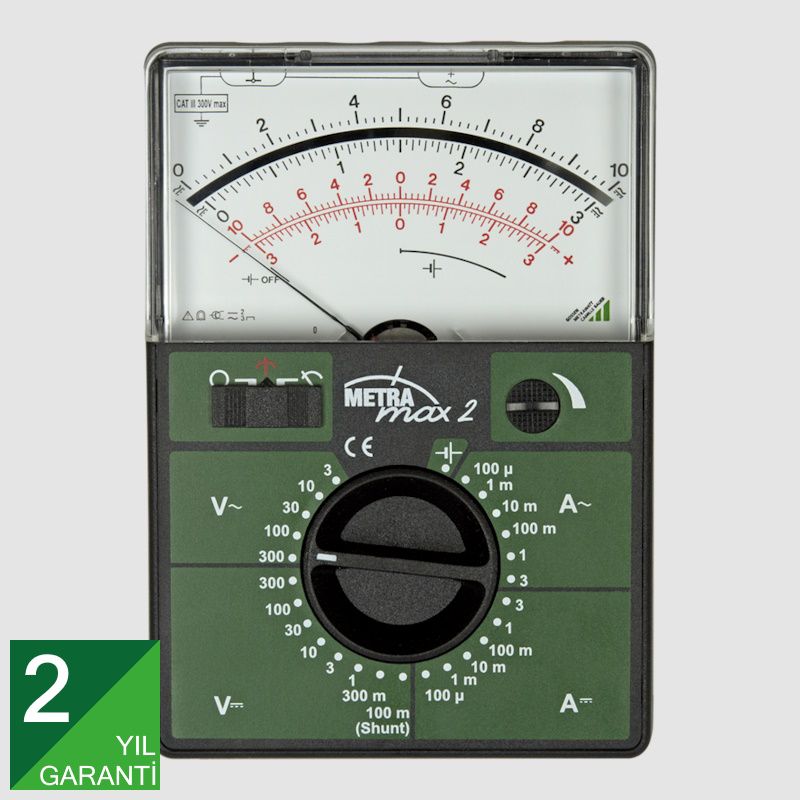

MetraMax 2 Analog Multimeter
Product code: M102A
Model: MetraMax 2
Brand: Gossen Metrawatt
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
Analog Multimeter for Training Applications
The METRAmax 2 hand-held multimeter was developed in cooperation with a renowned German supplier of training systems and fulfills all of the demands placed upon contemporary vocational training.
Thanks to exceptional overload capacity, selectable scale zero point at left or center and automatic battery cutoff, this instrument is not only well suited for training, but rather for balancing and service work as well.
Technical characteristics
- Voltage measurement: 0-300 V AC and DC
- Current measurement: 0-3 A AC and DC
- Zero point: left / center
- Accuracy: 2 = / 3 ~
- Dimensions: 100 x 140 x 35 mm
- Weight: approx. 0.3 kg with battery
- Battery: 9 V flat cell battery, IEC 6 LR 61 (6 F 22)
Delivery
- 1x multimeter (without cable set)
- 1x battery
- 1x operating instructions
Product Code: M102A
Save
Print
Technical characteristics
- Voltage measurement: 0-300 V AC and DC
- Current measurement: 0-3 A AC and DC
- Zero point: left / center
- Accuracy: 2 = / 3 ~
- Dimensions: 100 x 140 x 35 mm
- Weight: approx. 0.3 kg with battery
- Battery: 9 V flat cell battery, IEC 6 LR 61 (6 F 22)
Please look the file section for more technical info.
