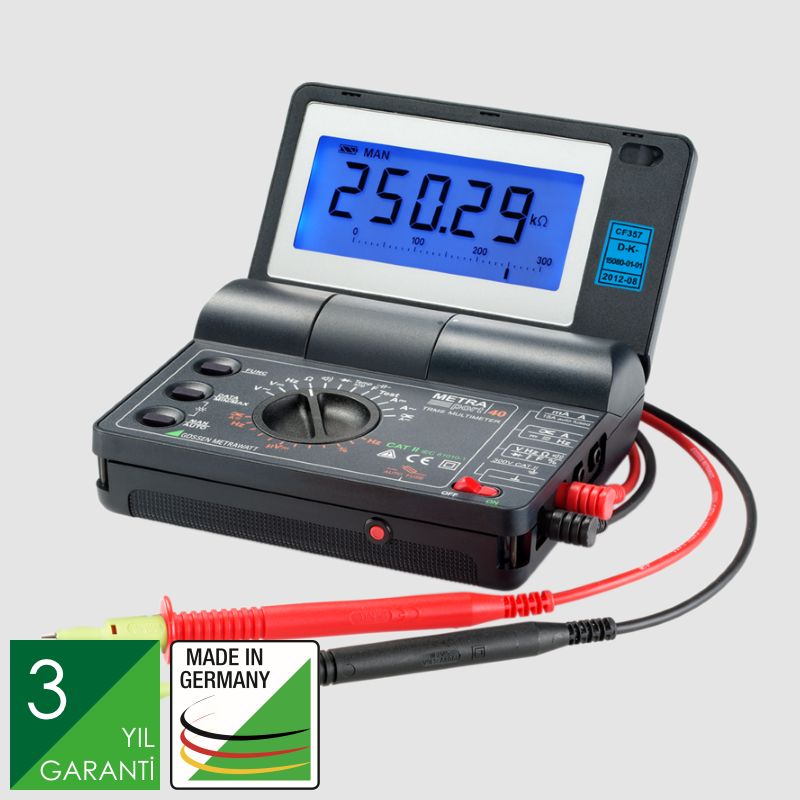

METRAport 40S digital multimeters are very well suited for universal use in general electrical engineering, electronics applications and for automotive service.
Ideal reading angle adjustment is made possible by the tilt stand, and when suspended from the neck strap both hands are free for performing measurements. The instrument is switched off automatically when folded closed, and the display and the control panel are protected against damage.
Precision multimeter (V, A, , F, Hz, %, °C / °F),
resolution: 10 μV, 10 nA, 10 mΩ, ± 31,000 digits (4¾-place)
TRMS measurement for V AC and I AC to 10 kHz
DC measurement of 10 nA to 10 A via a single socket and a resetable fuse (auto-fuse), overload and blown fuse indicators
Current measurement with current sensor clamps:
The transformation ratio is adjustable from 1 mV:1 mA to
1 mV:1 A, and is accounted for by the display.
Temperature measurement with automatic Pt sensor recognition
Temperature measurement with type K thermocouple
Capacitance and diode measurement
Frequency measurement via V AC or I AC to 10 kHz
Frequency and keying ratio measurement at 2 to 5 V signals up to 1 MHz
RPM Measurement with Inductive Sensor (accessory)
Automatic and manual measuring range selection
Large backlit digital display with additional analog scale
Measured value storage and min./max. recording
USB interface
DAkkS certificate and 3 year guarantee
Product Code: M234D
