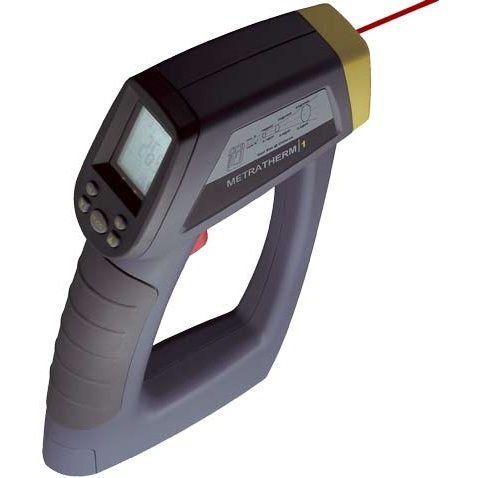

MetraTherm 1 Infrared Thermometer
MetraTherm 1 Infrared Thermometer Product code: M680A Model: MetraTherm 1 Brand: Gossen Metrawatt Warranty Time: 24 REQUEST FOR SUBMISSION
Share:
Save Print

Infrared Thermometer with Laser Sight

for contactless measurement of surface temperature



Applications:

Temperature measurement at large distances, and thus at a safe distance from potential danger zones
Electrical troubleshooting, repairs and maintenance work in the automotive industry and in air conditioners
Scientific experiments, manufacturing processes in the field of semiconductor technology
Contacts in electrical control cabinets, food monitoring and processing


Features:

Infrared temperature measuring range: -50 to 1000° C (-58 to 1832° F)
Exact positioning with laser sighting (can be activated if desired)
High distance ratio (E:M): 50:1
Emissivity adjustable from 0.1 to 1.00 in steps of 0.01
Additional measuring option with type K thermocouple
Selectable unit of measure: °C or °F
Individual and continuous measurements, 10 memory locations for individual measurements
Storage of currently measured temperature, lowest and highest temperature or maximum temperature difference DT
Illuminated LCD panel
Alarm function: acoustic signal if selectable limit values are exceeded or fallen short of
USB port for data transmission to a PC
PC software for displaying and recording measured values (data logger function) on included CD ROM
The included PC software makes the following functions possible:

PC Display and Recording Program (data logger)
Display of currently measured infrared temperature values with date and time
Adjust the sampling interval for recording measured values
Record measured values to a text file which can be exported to Microsoft‚ Excel for analysis



Included:
METRATHERM 1, 9 V battery, screw-on carrying strap, type K thermocouple, USB adapter cable for communication between the measuring instrument and the PC, CD ROM with PC display and recording program (data logger), operating instructions in English and German







   Product Code: M680A
