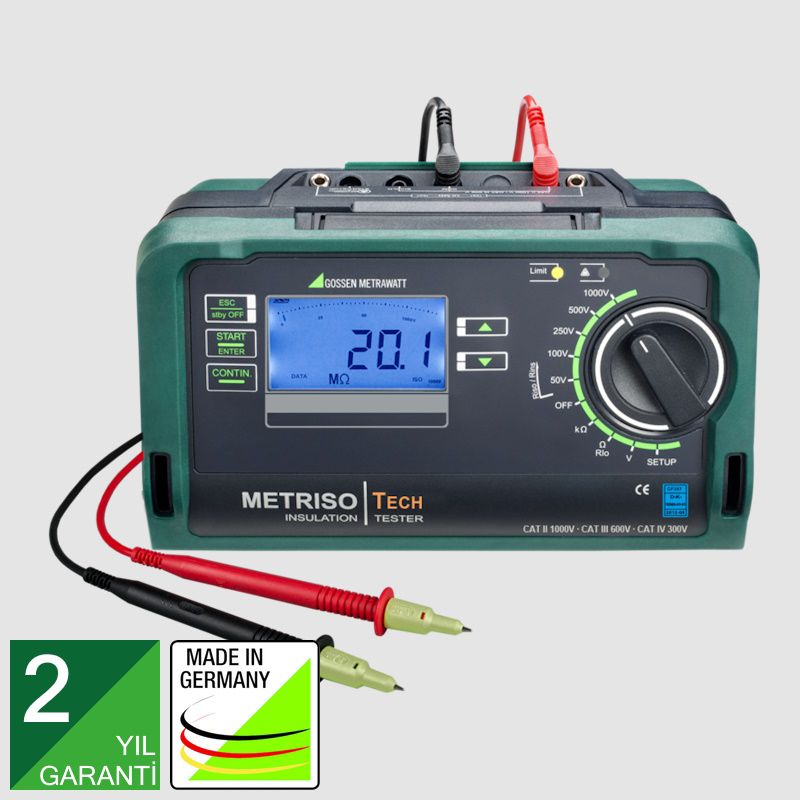

Test Instrument for Insulation, Low-resistance and Voltage Measurements
Compact and rugged - for service calls under harsh conditions and laboratory use
The METRISO TECH insulation and resistance measuring instruments allow for quick and effective testing of protective measures in accordance with:
- DIN VDE 0100
- ÖVE-EN 1 (Austria)
- SEV 1000 (Switzerland)
- and regulations specific to other countries as well
- Insulation measurement per EN 61557-2 / VDE 0413 part 2
- Low-resistance measurement per EN 61557-4 / VDE 0413 part 4
- Voltage testing and measurement up to 1000 V
Applications
The insulation measuring instruments are suitable for the following tasks:
Measurement of insulation resistance at voltage-free devices and systems, up to 1000 V
Testing of the resistance of earthing conductors, protective conductors and equipotential bonding
Checking of test objects for absence of voltage
Testing of electrostatic discharge capacity at floor coverings (using shielded measurement cables) - EN 1081
Technical characteristics
Digital and analogue display, backlit
Intelligent filter - precise and measurement-dependent activation for the measurement of very high resistances - beating, i. e. compensation of 16 2/3 Hz and 50 Hz interference - attenuation of capacitive influences from power cables, etc. - suppression of electric field influences
Signalling of dangerous contact voltage by means of LED
Indication of limit value violations by means of LED
Overvoltage protection - protects the instrument in the event of inadvertent connection to mains power
Fuse link for all resistance measuring ranges
New: Electronic fuse for protection of the low-resistance measurement RLO also protects the fuse link in the low-resistance measuring range in the event of faulty operation
One measuring point self-test with test resistance of 10 MΩ per EN 50110 / VDE 0105-100
Guard terminal for compensating surface current
Measurements
Measuring ranges Riso 10 k ... 200 GΩ
Riso U = 50, 100, 250, 500 / 1000 V
R 10 O... 10 kΩ
RLO 0,01 ... 10 Ω
U 0 ... 500 / 1000 V
Display functions
Backlit display
Limit value LED Limit (green/red) Additional acoustic signal, limit value per VDE 0100 Riso, RLO
LED for dangerous contact voltage (when switched off)
LCD symbol for external voltage
Battery level display
Special functions
Discharge capacitive devices under test
Safety shutdown (UBatt < 8 V)
Features
Measuring categories CAT II 1000V, CAT III 600V
Measuring category CAT III 600V, CAT IV 300V
Integrated 10 MΩ test resistor
DAkkS calibriation certificate in scope of delivery

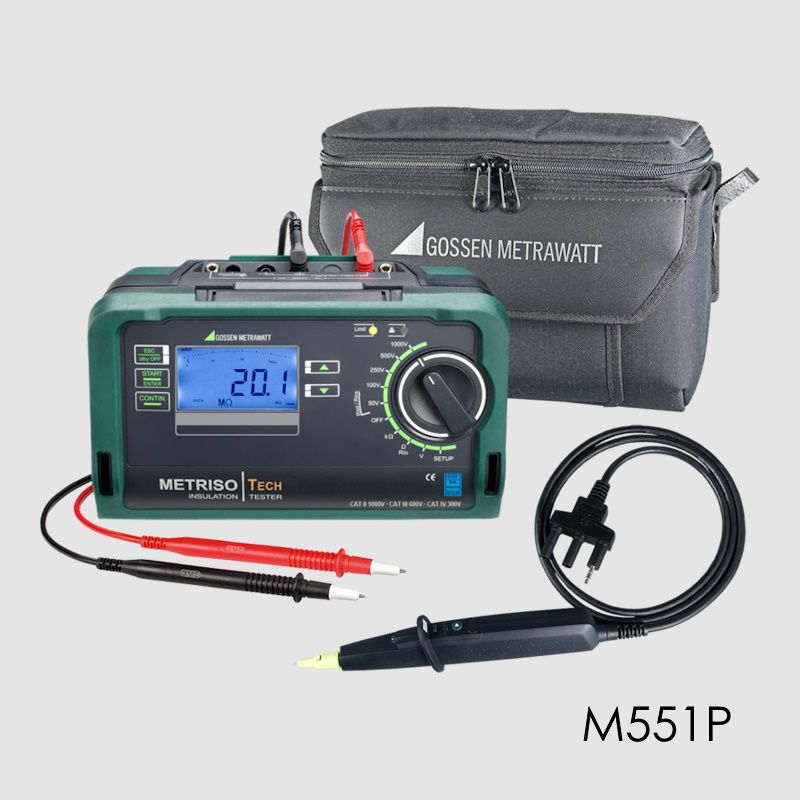

Delivery
Insulation and resistance measuring instrument
DAkkS calibration certificate
Set batteries
Carrying strap
Alligator clip
KS17-4 cable set
Condensed operating instructions
Supplement Safety Information
Product Code: M550P
