MFG-3260 Function / Arbitrary Waveform Generator
Product code: MFG-3260
Model: MFG-3260
Brand: Matrix
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
These series two-channel function/arbitrary waveform generator is equipped with direct digital synthesis (DDS) technology which enables output signal to be stable and accurate.
Key Features

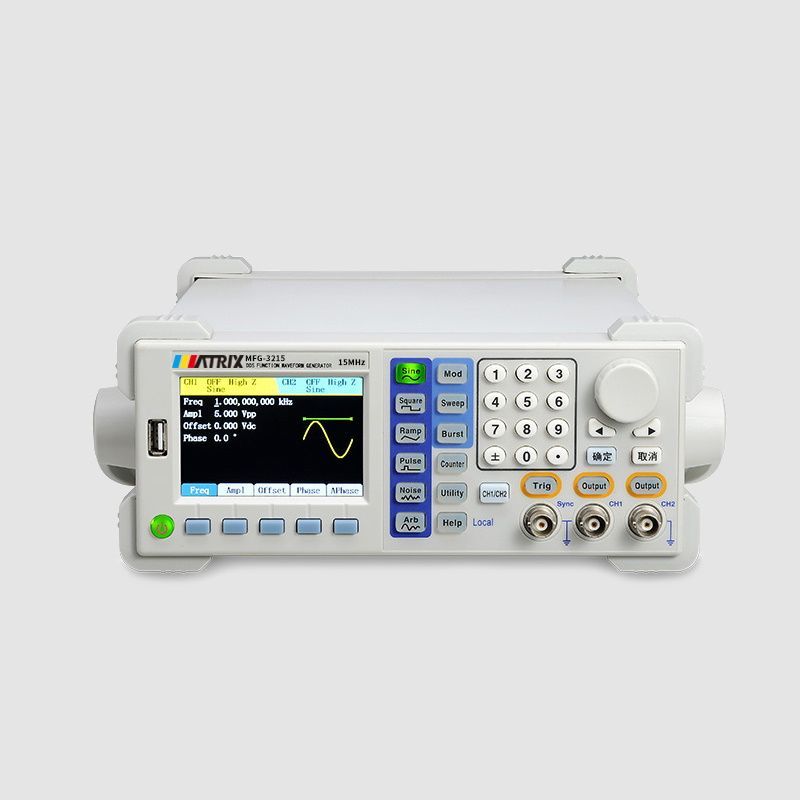

- 3.5-inch 480×320TFT LCD with clear graphic interface
- 15MHz / 25MHz / 40MHz / 60MHz
- Chinese / English menu available
- Press key for help and information
- File management supporting USB flash disk and local storage
- Two-channel output with the highest output frequency is " 15M type " Model is MFG-3215,"25M type" Model is MFG-3225, "40M type" Model is MFG-3240, "60M type" Model is MFG-3260.
- Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k
- 5 basic waveforms and 32 arbitrary waveforms in-built
- Pulse wave output set in edge time
- Internal/external AM, FM, PM, ASK, FSK and PSK modulation function
- Output of linear/logarithmic frequency sweep and burst waveform
- Frequency meter of high precision of 100MHz and 32-bit counter

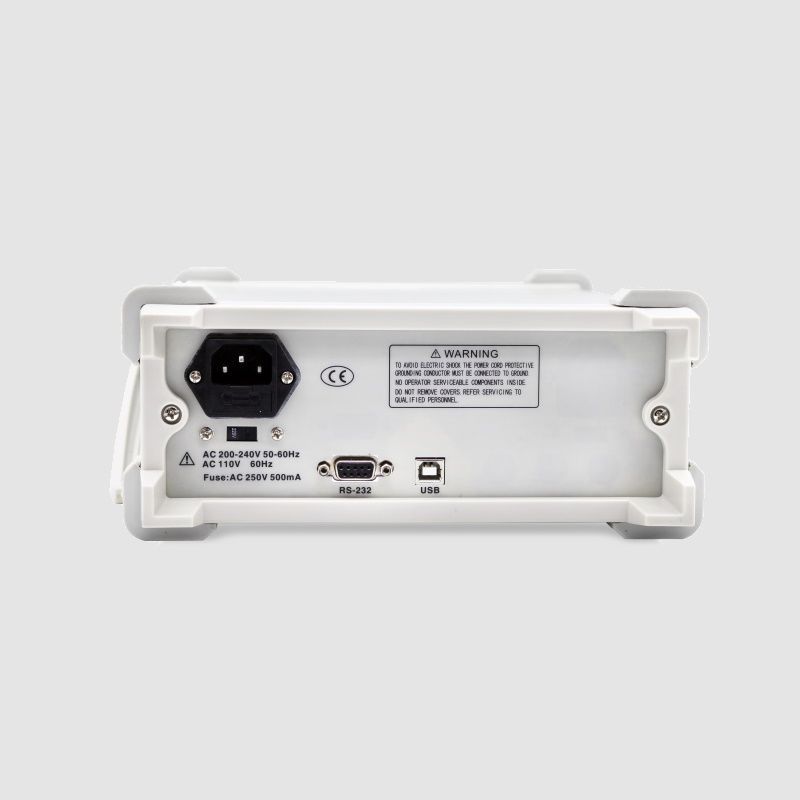

- With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage (USB Host Optional)
- Multi-functional arbitrary waveform editing software equipped
Product Codes;
MFG-3215 - 15MHz Function / Arbitrary Waveform Generator
MFG-3225 - 25MHz Function / Arbitrary Waveform Generator
MFG-3240 - 40MHz Function / Arbitrary Waveform Generator
MFG-3260 - 60MHz Function / Arbitrary Waveform Generator
