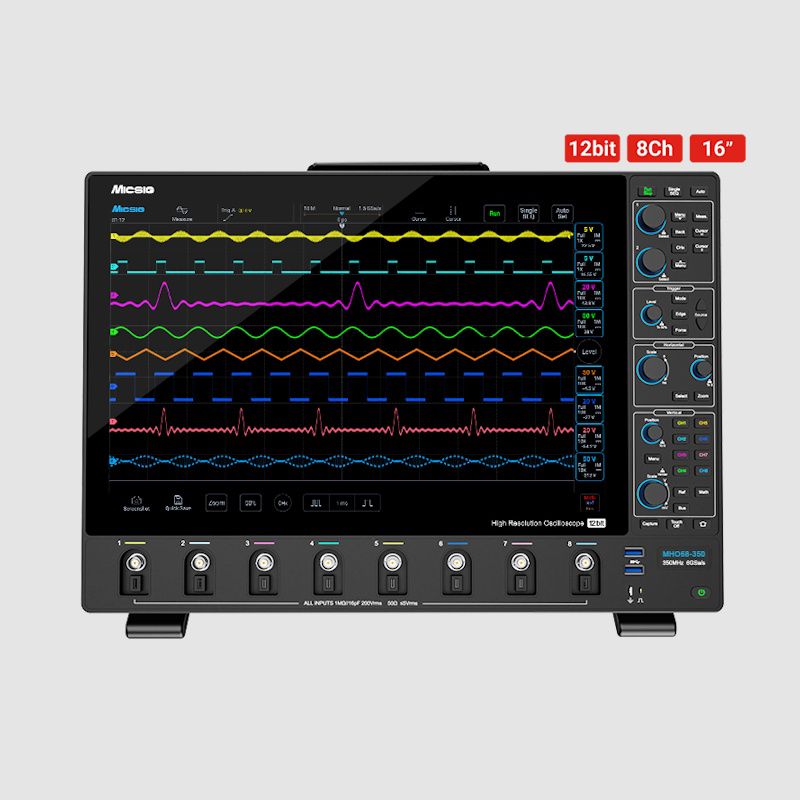

Micsig MHO6 Series High Resolution Oscilloscope

The MHO high-resolution oscilloscope 6 series features a 1GHz bandwidth, 6GSa/s sampling rate, 8 analog channels, a storage depth of 1800 million points (Mpts), and a 12-bit vertical resolution. Its high bandwidth and 8-channel capability are suitable for faster circuit analysis and more synchronized signal testing. Its ultra-thin design of 3.76 cm can save a lot of your precious desk space; a 16-inch touch screen with a resolution of 1920x1200 provides you with a super clear waveform display for a more comfortable visual experience.

• Outstanding Performance Precise Insight
  The MHO 6 series oscilloscopes utilize high-precision 12-bit high-speed ADC technology with a sampling rate up to 6Gsa/s. Combined with meticulous circuit design and advanced signal processing techniques, they achieve comprehensive capture and stable analysis of signals ranging from weak to high-speed, providing solid assurance for high-precision testing in fields such as scientific research, production, and education. Their maximum analog bandwidth reaches 1GHz, easily meeting the testing challenges of the most cutting-edge devices in the field of power electronics.
• Multi-Channel Parallelism Efficiency Upgraded
  Equipped with 8 analog channels, the MHO 6 series oscilloscopes enable engineers to simultaneously observe and analyze up to 8 test points, greatly enhancing testing efficiency and accuracy. This provides strong support for timing analysis, troubleshooting, and performance optimization of complex systems.
• Outstanding Display

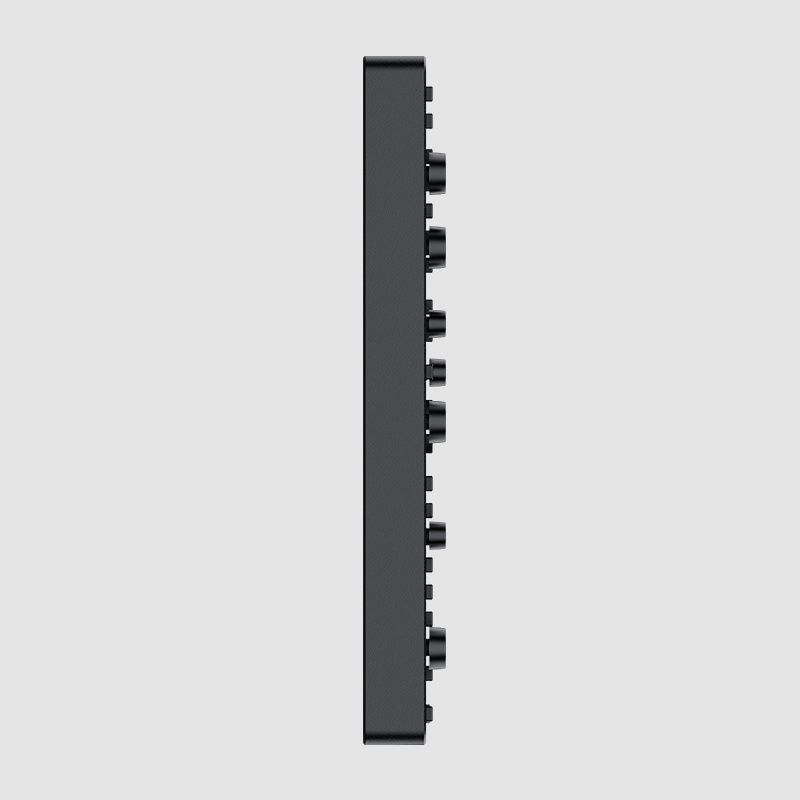

  Featuring a 16-inch high-definition touch screen with a resolution of up to 1920x1200, it delivers a delicate and clear visual experience. The ultra-thin body design, with a thickness of only 3.76cm, is both portable and aesthetically pleasing, making every operation a pleasure.
• Complete connectivity

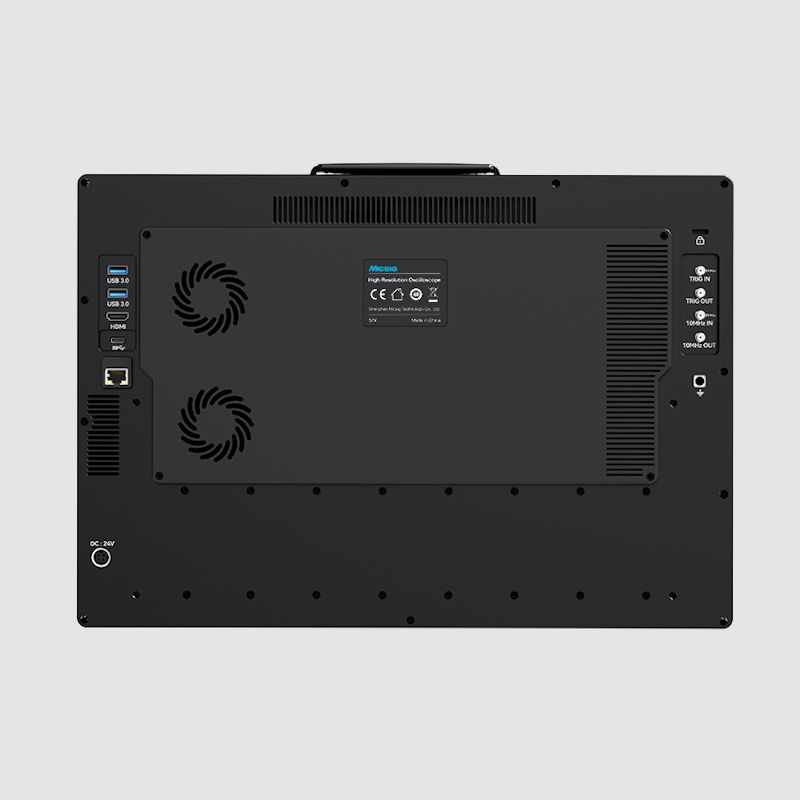

  Standard with BNC adapter. Equipped with abundant ports including USB 3.0/2.0 Host, USB Type-C, LAN, HDMI, Aux In/Out and 10MHz clock signal In/Out.
• Comprehensive selection of probes

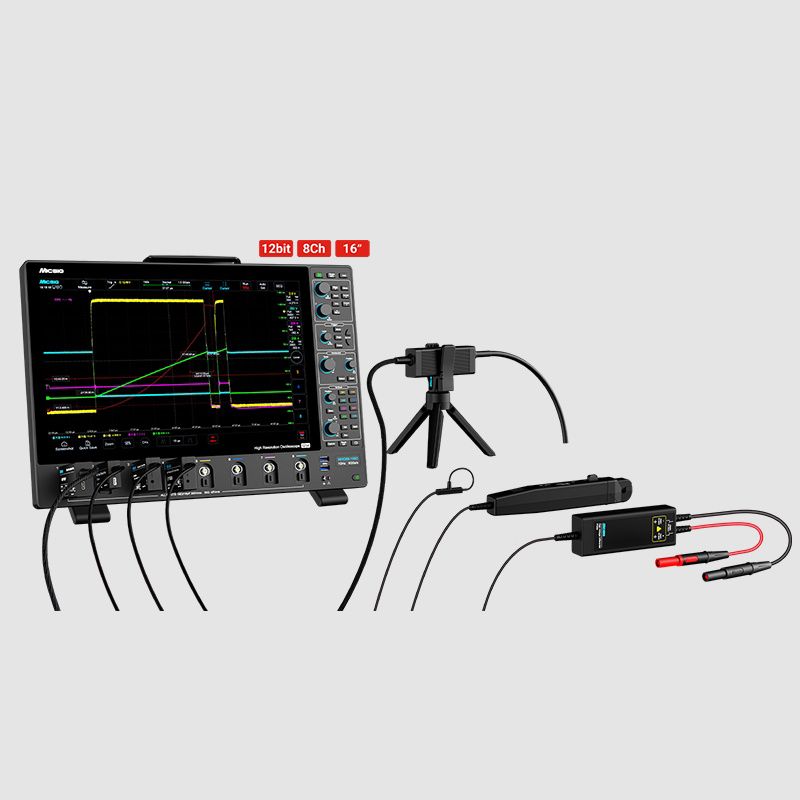

  Based on Micsig's comprehensive probe product line, the MHO6 series oscilloscopes can be paired with SigOFIT Optical-fiber Isolated Probe, high-voltage differential probes, Rogowski coils, and high-frequency AC/DC current probes, among others. Each of these probes has its own unique features, capable of flexibly adapting to various testing scenarios, providing a complete and reliable solution for power electronics testing.

Product codes:

MHO68-1000 - 1 GHz

MHO68-500 - 500 MHz

MHO68-350 - 350 MHz

Please contact us.

Please look the file section for more technical info.
