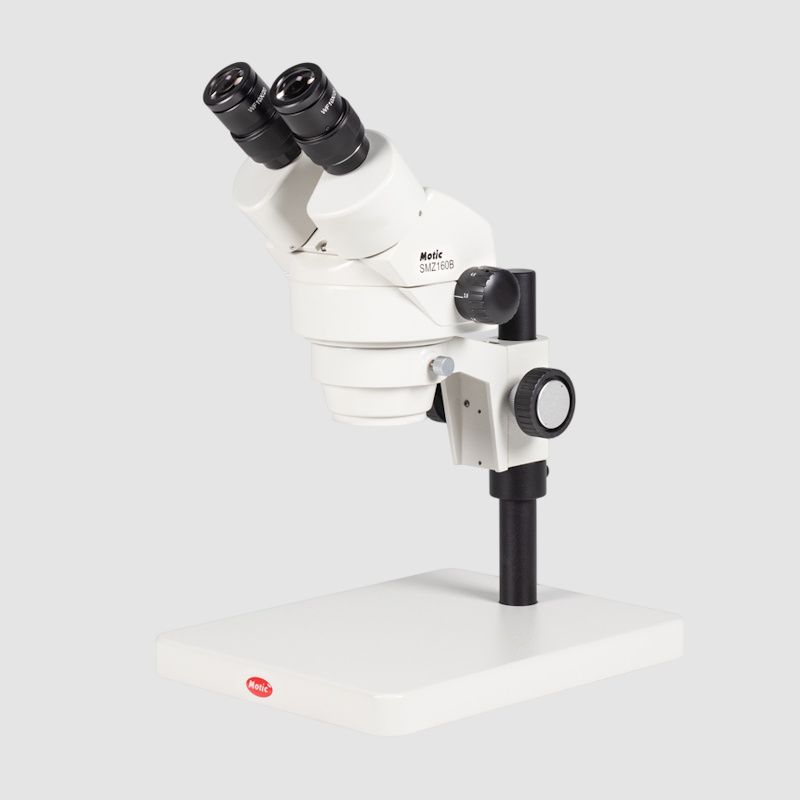

Motic SMZ-160-BP Binocular Stereo Microscope

Basic stereo microscope for education work in university and High school, but also for the QC lab in industry. The Greenough optical system delivers clear and distortion-free images in a zoom of 6:1, giving a magnification range of 7.5x-45x in the standard outfit. The implemented click-stops allow precise reproduction of magnification for measurements through eyepiece reticles. The instrument comes without illumination: Choose the best external illumination that meets the requirements of your samples.

General Specifications

• Observation tube: Binocular head
• Optical system: Greenough
• Inclination: 45° inclined
• Interpupillary distance: 50 - 75mm
• Diopter adjustment: On both tubes, +/- 5 diopter

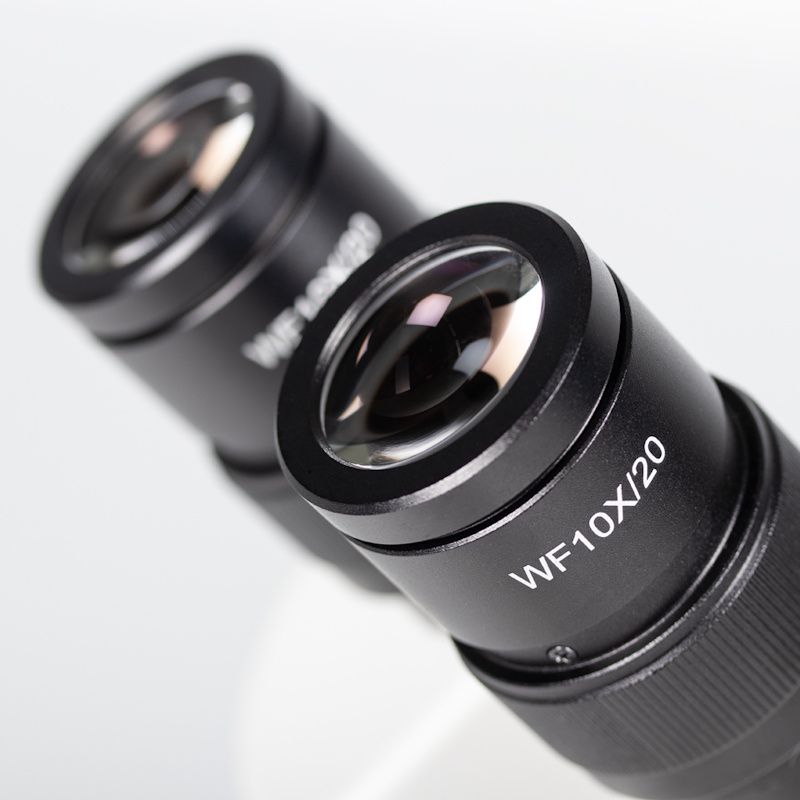

• Eyepieces: Widefield WF10X/20mm
• Objectives system: Zoom, ratio 6:1
• Objectives: 0.75X - 4.5X
• Working distance: 100mm
• Stand type: Pole type stand
• Head holder: For Ø25mm column and Ø76mm head
• Focus mechanism: Coarse focusing system with tension adjustment
• Focusing stroke: 43mm
• Accessories included: Dust cover
• Dimensions LxWxH: 280x220x367mm
• Base: 280x220mm
• Column/Arm: Height 221mm, Ø25mm
• Weight Net: 3.2kg

Product code: 1100201300151

Please contact us.

Please look the file section for more technical info.
