MTR-2000 64 Channel Temperature Recorder (Datalogger)

With the Matrix MTR-2000 64 Channel Temperature Recorder (Datalogger) you can record temperature values using various temperature probes/sensors with up to 64 channels.

General Features

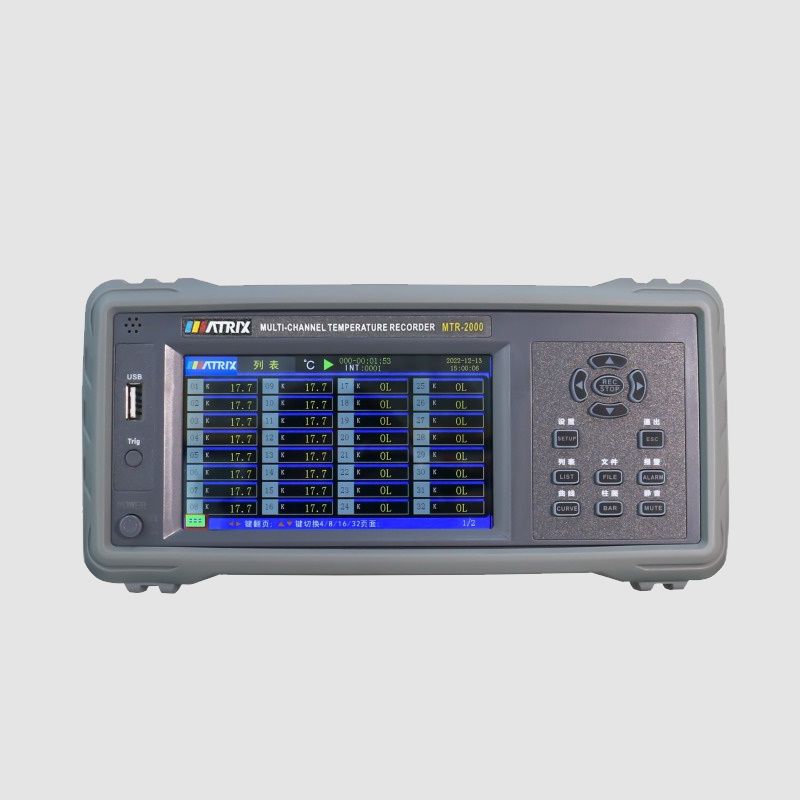

• The display can show up to 32 channels of temperature values simultaneously,
• Supports multiple sensor inputs: K, J, E, T, N, S, R, B,
• Basic measurement accuracy: 0.2°C + 2 digits (without sensor), cold end compensation accuracy: 0.5°C,
• Each channel can be set to use different thermocouple types,
• Supports recording file for maximum 64 channels, each file can contain 130,000 data groups, recording time can be set from 1 to 9999 seconds interval,
• USB and RS485 communication ports are standard,

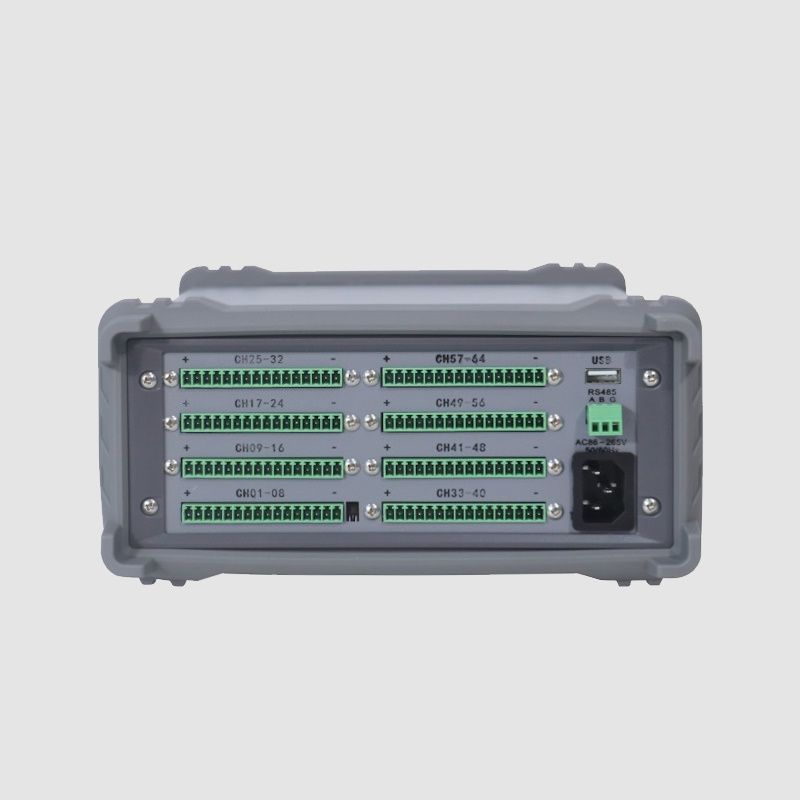

• Thanks to its modular design, it can be configured for any number of channels and each module has 8 channels. It supports a maximum of 64 channels and the device automatically recognizes the modules,
• Fast recording with a single button,
• Display as list, curve, histogram,
• Supports software update,
• Strong anti-interference capability,
• Record files can be exported or deleted at any time,
• Channel names can be customized and exported as an EXCEL file,
• Multi-stage alarm function and dual relay output.

Technical Specifications

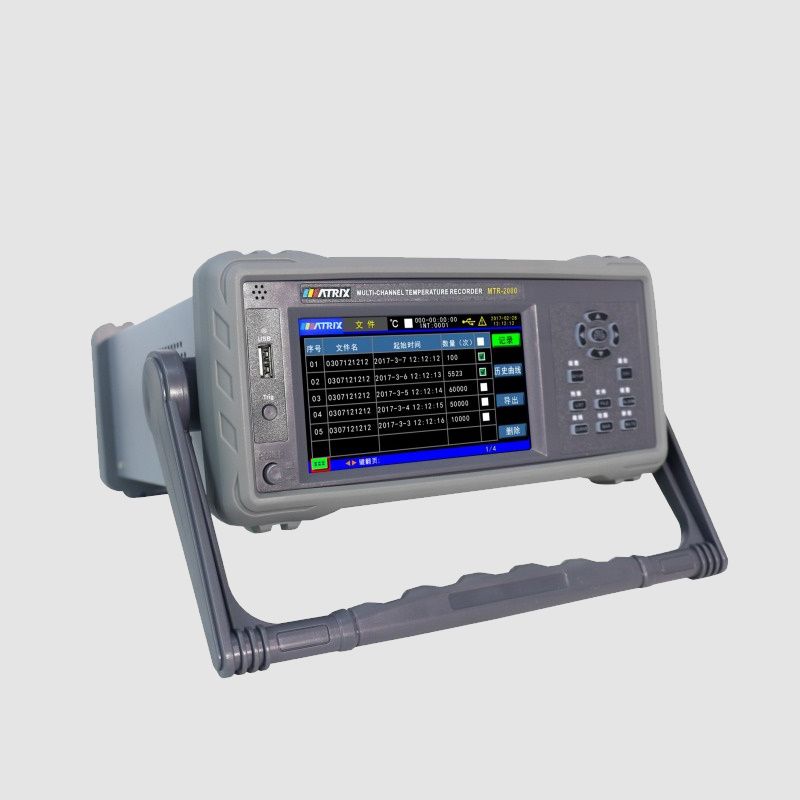

• Display: 5” TFT true color LCD industrial touch screen with 854*480 pixel resolution.
• Display Form: Real-time list, curve (history curve), bar graph, current alarm (history alarm), file record list.
• Number of Channels: Up to 64 channels with 8-channel modules.
• Thermocouple Supports: K, J, E, T, N, S, R, B,
• Temperature Measurement Range: -200 to 1820°C (depends on thermocouple measurement range)
• Simple Accuracy: 0.2°C + 2 digits (excluding sensor error)
• Resolution: 0.1°C
• Cold End Compensation Accuracy: 0.5°C
• Sampling Rate: Fast: 0.1s or slow: 1s for each channel
• Isolation Between Channels: AC/DC up to 350V, high voltage live measurement, super anti-interference ability
• Control Output: Two sets of independent relay outputs are (H/L) and (HH/LL) relays
• Alarm Sound: Buzzer when the alarm sounds (can be muted)
• Recording Interval Time: 1 to 9999 seconds
• Power Supply: AC 85-265V (±10%), 50-60Hz
• Dimensions: 220 x 293 x 106 mm (approximately the size of A4 paper)
• Weight: Approx. 3kg
• Operating Temperature: Between 5-40°C (20-80% RH)

Product Code: MTR-2000
