Installation board – “sub-distribution branch with installation circuits” – for fault simulation for measurements per IEC 60364.6 and EN 50110 (DIN VDE 0100-600, 0105-100)

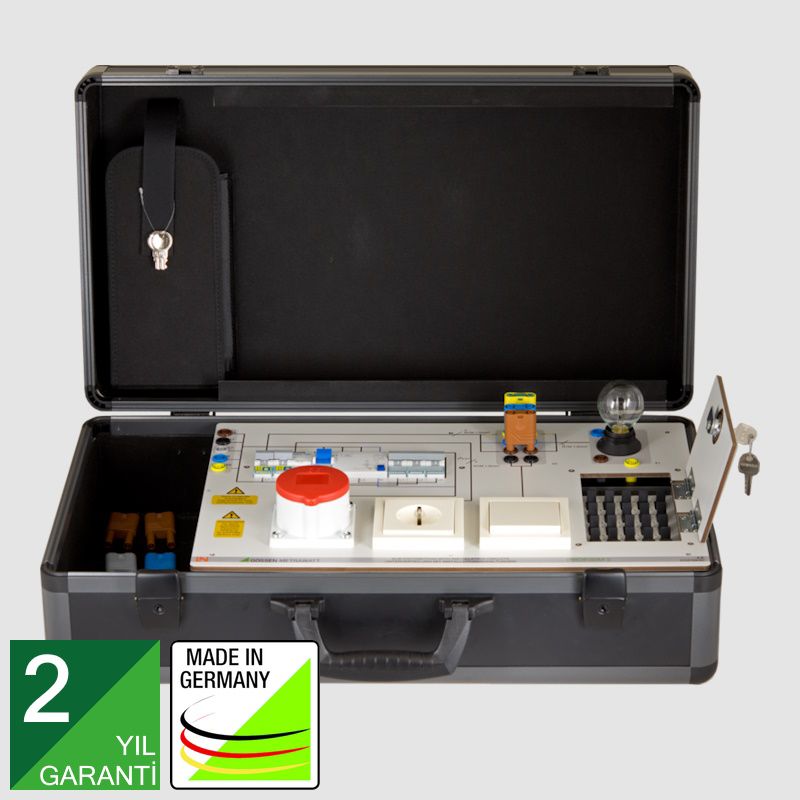

The PROFIS 2 installation board is a compact building service line with main ground bus and sub-distribution branch for consumer systems including a fault simulator.
In combination with measuring and test instruments from the PROFITEST Master / INTRO series, all measurements and tests can be executed which are stipulated for safety testing of electrical systems of up to 500 V with various system types and protective measures.
Product Highlights
- Simulation of a sub-distribution branch with 3 electrical circuits
- Testing of various protective devices, amongst others type A/B RCDs
- Troubleshooting in installation circuits • Single and double fault circuit
- Simulation of faults via switches
- Lockable fault simulator
- Console-like housing
- Can be used as a benchtop instrument or in an experimentation frame
- Carrying case (optional)
Training personnel (electricians):
- Teachers, trainers, instructors, laboratory supervisors
Learners:
- Trainees, students, apprentices
Applications
It’s used primarily for training and project work covering all aspects of “testing systems in accordance with IEC 60364-6 / DIN VDE 0100-600”.
Technical characteristics
- Low-resistance measurements at equipotential bonding conductors
- Insulation resistance measurements
- Measurements for testing RCDs
- Loop impedance measurements
- Earthing resistance measurements
- Line voltage measurements

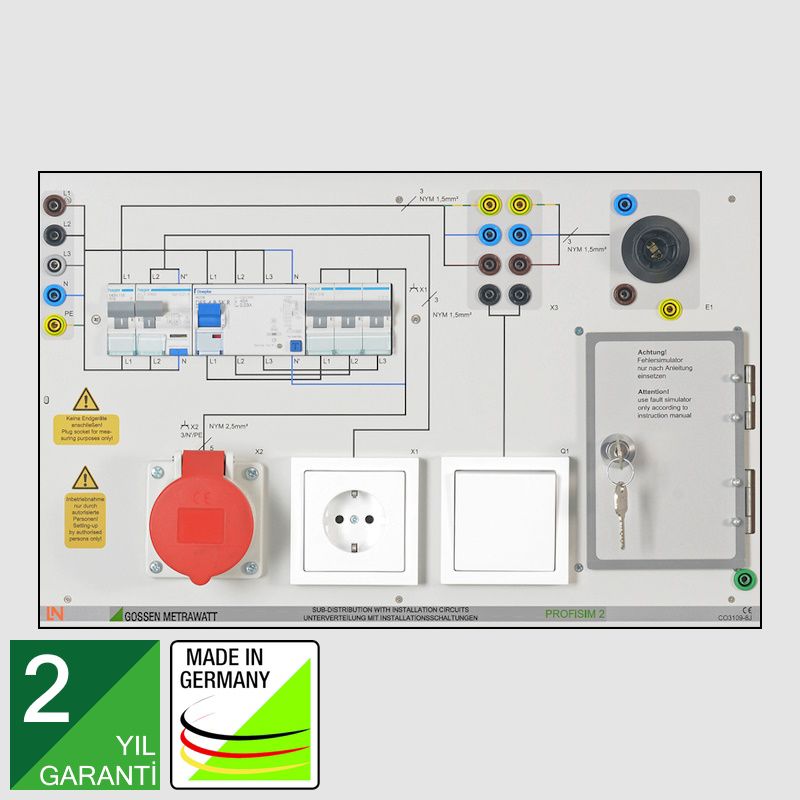

- The PROFiSIM 2 it includes the simulation of a sub-distribution branch with 3 electrical circuits to this end for the implementation of testing and fault options.
Product Code: M560B
