Function Tester for AC Charging Points per IEC 61851-1, VDE 0122-1

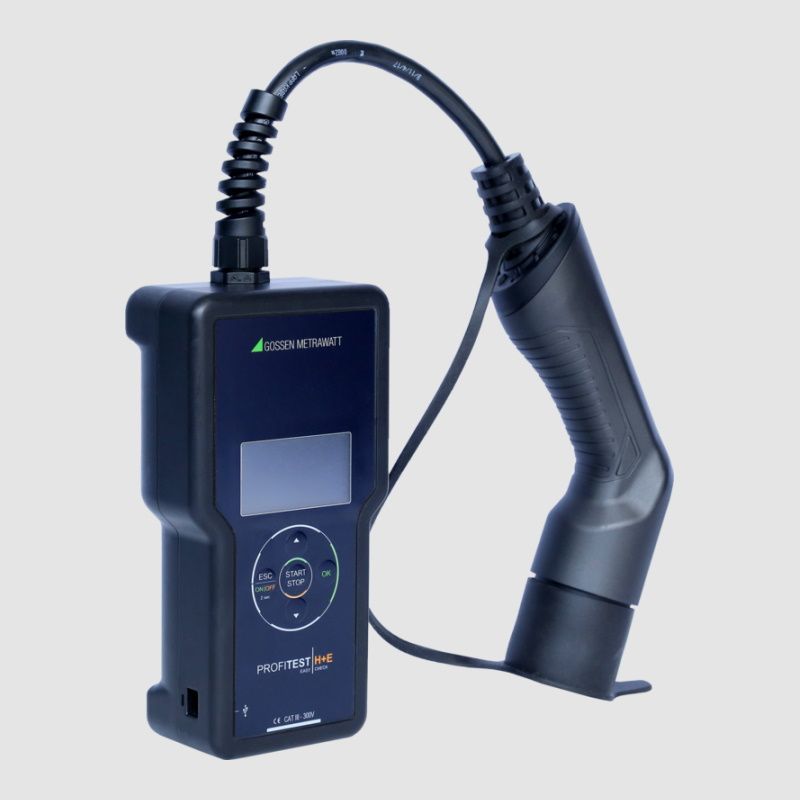

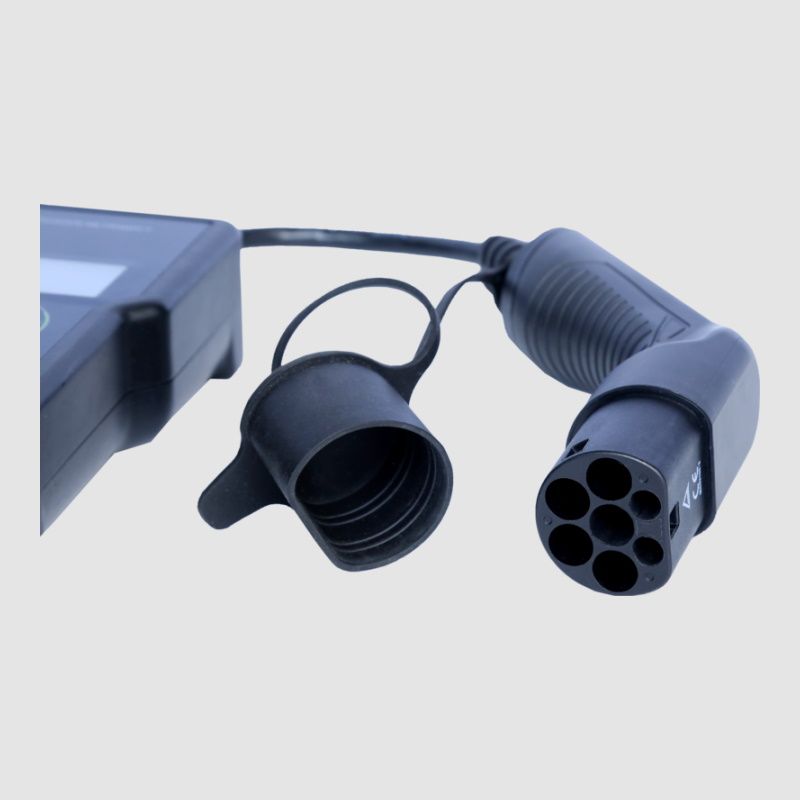

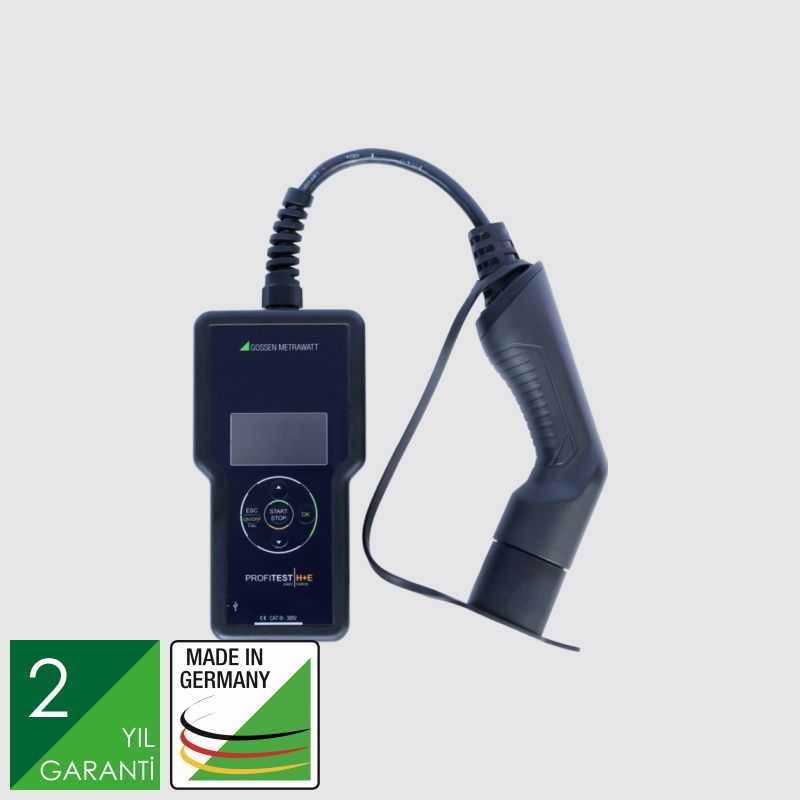

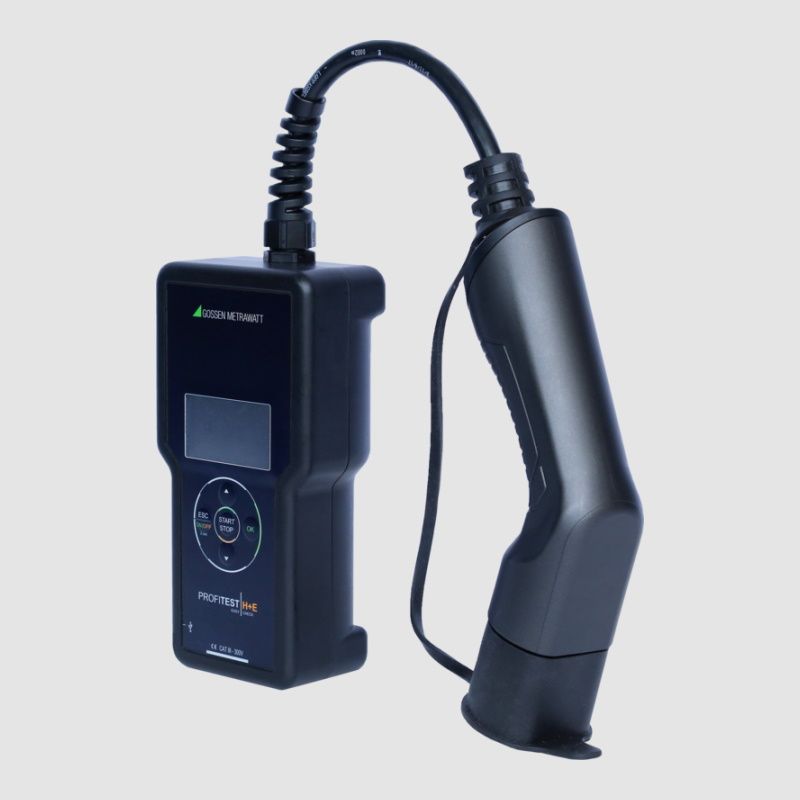

The PROFITEST H+E EASY CHECK is used to test AC charging points in charging mode 3 with type 2 connector socket or permanently attached type 2 cable. The automatic function tester is simply connected to the charging point and communication between the charging point and the EV is tested by pressing a single key.
If the charging process can’t be started at an AC charging point, malfunctioning of the AC charging point is usually assumed. As a result, the operator immediately calls in an electrician, even if the AC charging point isn’t the cause of malfunctioning. The PROFITEST H+E EASY CHECK function tester for AC charging points makes it possible for laypersons such as system operators, service providers and facility managers to safely check the functionality of AC charging points in such cases. Specialized personnel is only contacted in a targeted manner in the event of a diagnosed malfunction. You save time and money. In addition to electrical testing in accordance with the standards, the tester also provides electricians with a full range of functional tests without the need for additional equipment such as a multimeter or oscilloscope.
Product Highlights
- Complete Diagnosis of Electric Charging Stations by Pressing a Single Key
- Vehicle states
- PWM signal evaluation
- Short-circuit between CP and PE
- Phases and phase sequence
- Battery level
- Easy Operation and Diagnosis
- Compact, Battery-Powered Device which is Suitable for Outdoor Use
Your Advantages
The PROFITEST H+E EASY CHECK function tester for AC charging points makes it possible for laypersons such as system operators, service providers and facility managers to safely check the functionality of AC charging points. Specialized personnel is only contacted in a targeted manner in the event of a diagnosed malfunction. This saves time and money.
Applications
The PROFITEST H+E EASY CHECK can be used by laypersons such as system operators, service providers and facility managers to safely test the functionality of AC charging points in charging mode 3 with type 2 connector socket or permanently attached type 2 cable.
Technical Characteristics
- Automatic function tester for AC charging points
- Also for AC charging points with permanently attached cable
- Easy to use – even for laypersons
- Automatic test sequence saves time and money
- Results appear at the display in plain text
- Error display with results for forwarding to service personnel
- USB port for charging the battery
Particularities
- Automatic function tester for AC charging points in charging mode 3
- Simulation of an EV at the charging point with type 2 plug inlet and charging points with permanently attached cable
- Verification of values for 20 A and 32 A cables
- Testing of vehicle statuses A, B and C, phases, tOFF (status E), rotating field and duty cycle
- Results appear at the display in plain text
- Error display with results for forwarding to service personnel (internal memory for momentary measured value)
- USB port for charging the battery
